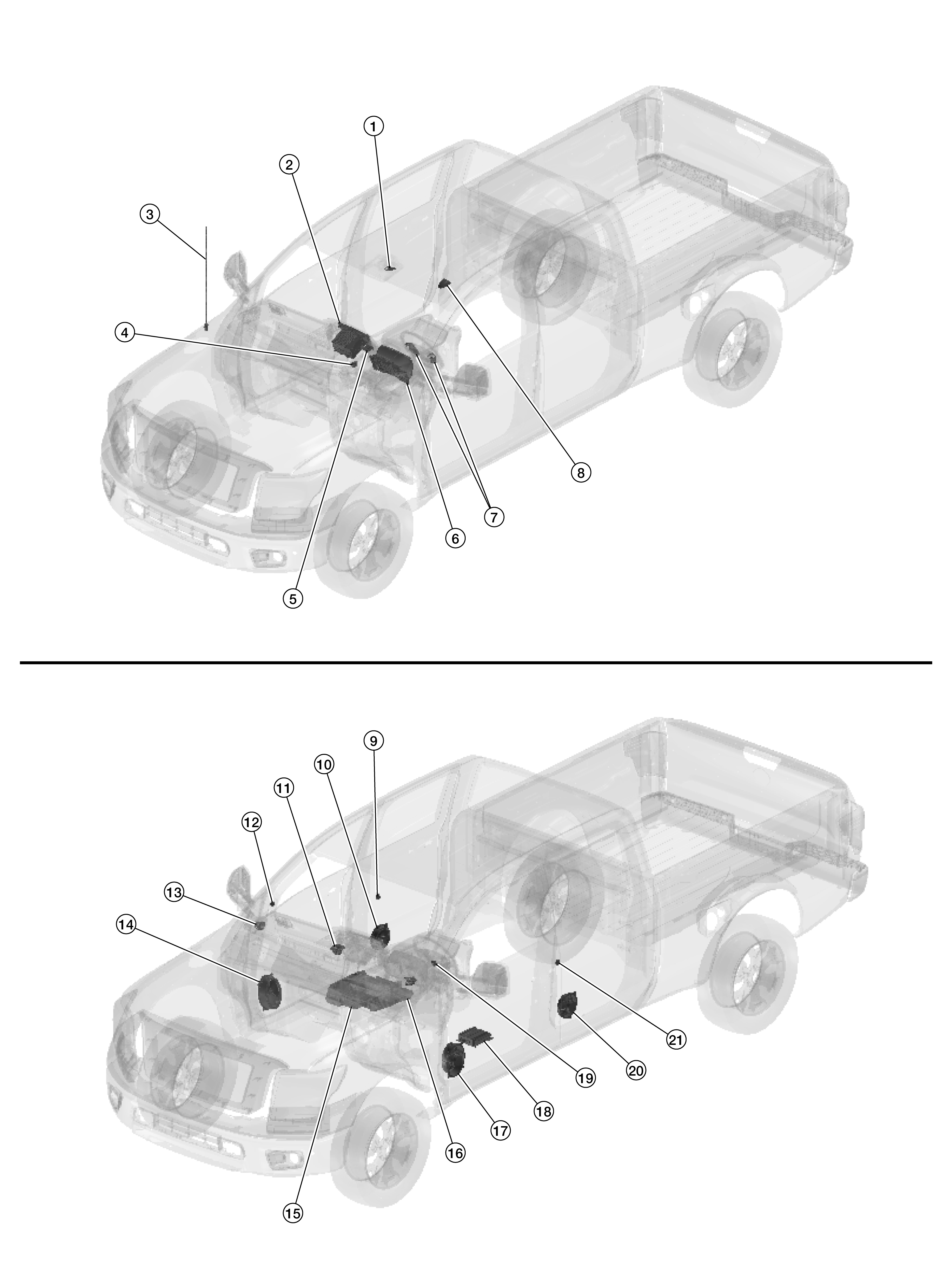

Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Microphone	Refer to Microphone .
2.	AV control unit	Refer to AV Control Unit .
3.	Rod antenna	Refer to Antenna and Antenna Feeder .
4.	USB interface and AUX in jack	Refer to USB Interface and AUX In Jack .
5.	GPS antenna	Refer to GPS Antenna .
6.	Combination meter	Refer to Combination Meter .
7.	Steering switches	Refer to Steering Switches .
8.	Satellite antenna	Refer to Antenna and Antenna Feeder .
9.	Rear door tweeter RH	Refer to Speaker .
10.	Rear door speaker RH	Refer to Speaker .
11.	Center speaker	Refer to Speaker .
12.	Front pillar speaker RH	Refer to Speaker .
13.	Front tweeter RH	Refer to Speaker .
14.	Front door speaker RH	Refer to Speaker .
15.	Subwoofer	Refer to Speaker .
16.	Front tweeter LH	Refer to Speaker .
17.	Front door speaker LH	Refer to Speaker .
18.	Audio amp.	Refer to Audio Amp. .
19.	Front pillar speaker LH	Refer to Speaker .
20.	Rear door speaker LH	Refer to Speaker .
21.	Rear door tweeter LH	Refer to Speaker .
