Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front captain seat (RH). Refer to Removal and Installation - Captain Seats .

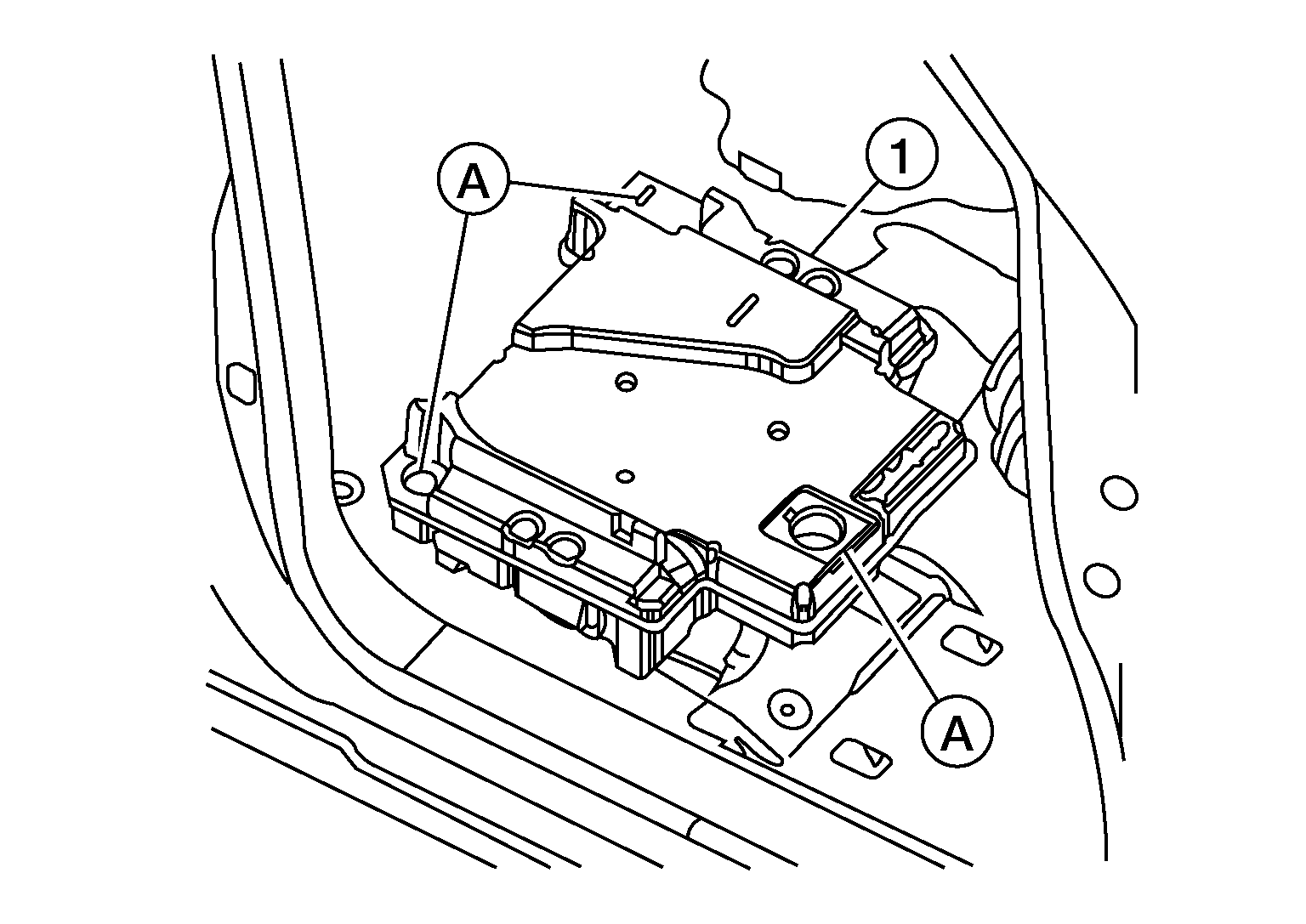

  2. Remove subwoofer screws (A).
    GNSALNIA1858Z-858Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from subwoofer (1) and remove subwoofer.
