Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door finisher. Refer to Removal and Installation (CREW CAB).

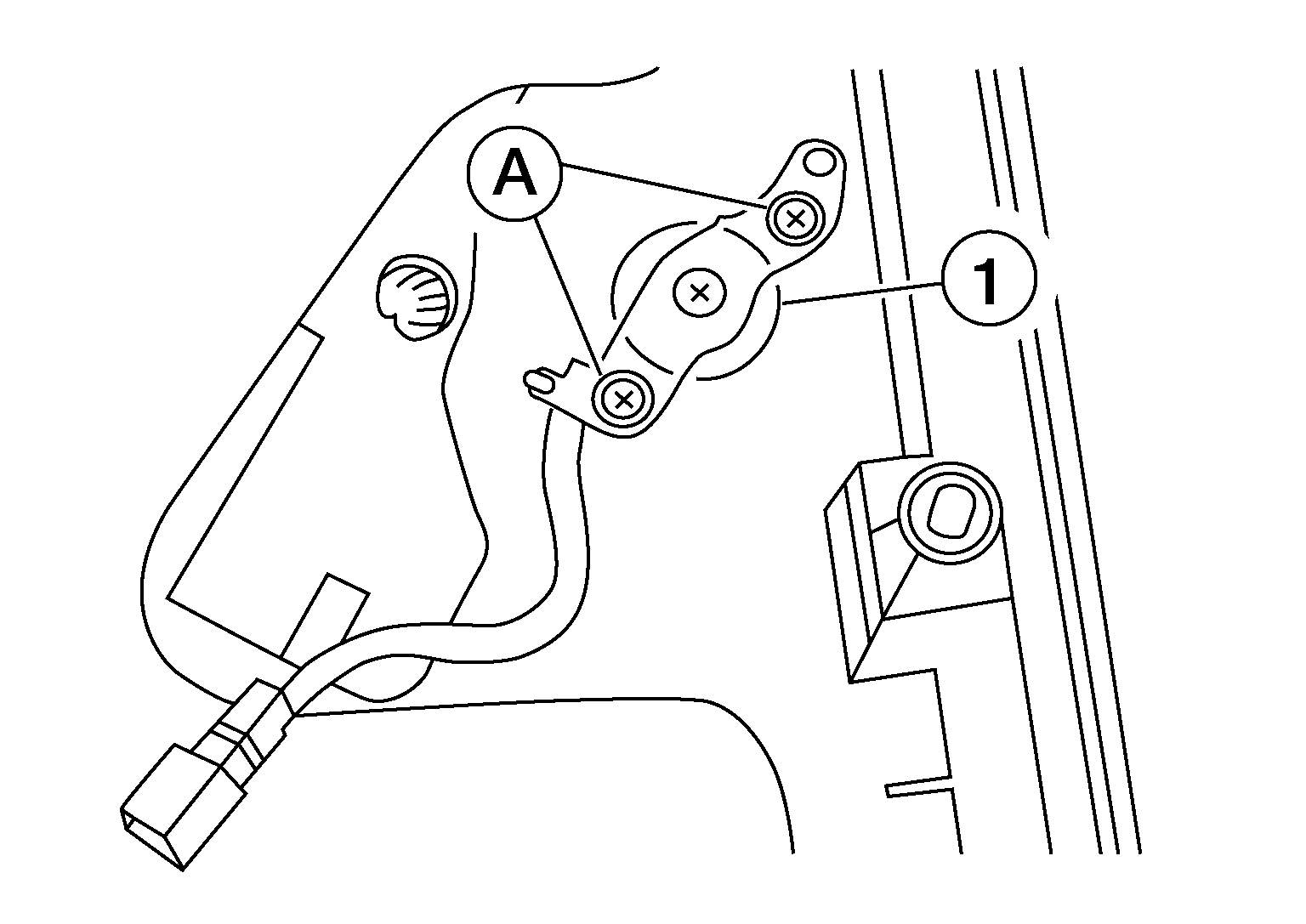

  2. Remove the rear door tweeter screws (A).
    GNSALNIA1855Z-855Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from the rear tweeter (1) and remove rear tweeter.
