Crew Cab

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Remove rear door finisher. Refer to Removal and Installation .

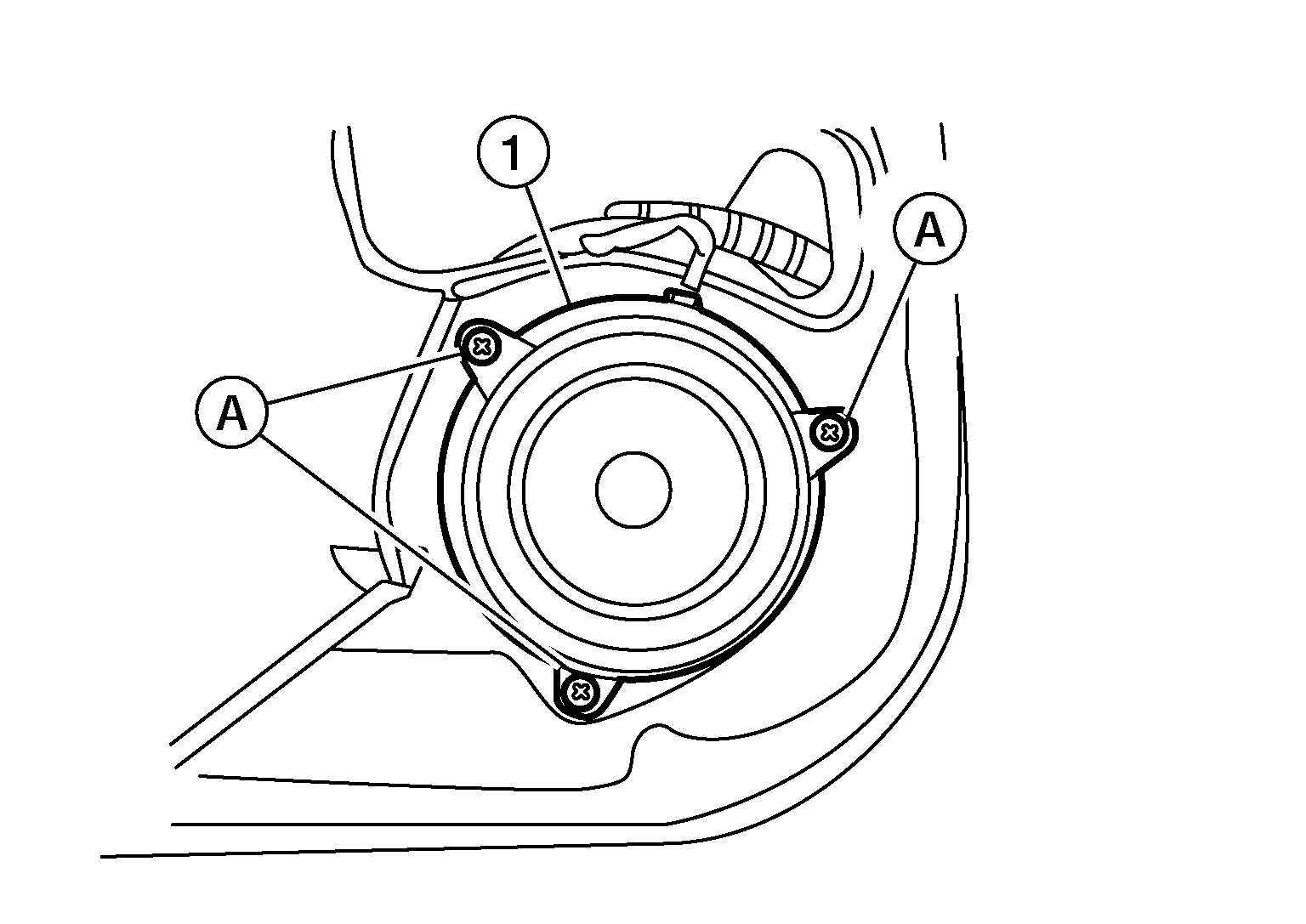

  2. Remove rear door speaker screws (A).
    GNSAWNIA4298Z-298Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from rear door speaker (1) and remove rear door speaker.

INSTALLATION

Installation is in the reverse order of removal.
