Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front pillar finisher. Refer to Removal and Installation (SINGLE CAB), Removal and Installation (CREW CAB) or Removal and Installation (KING CAB ® ).

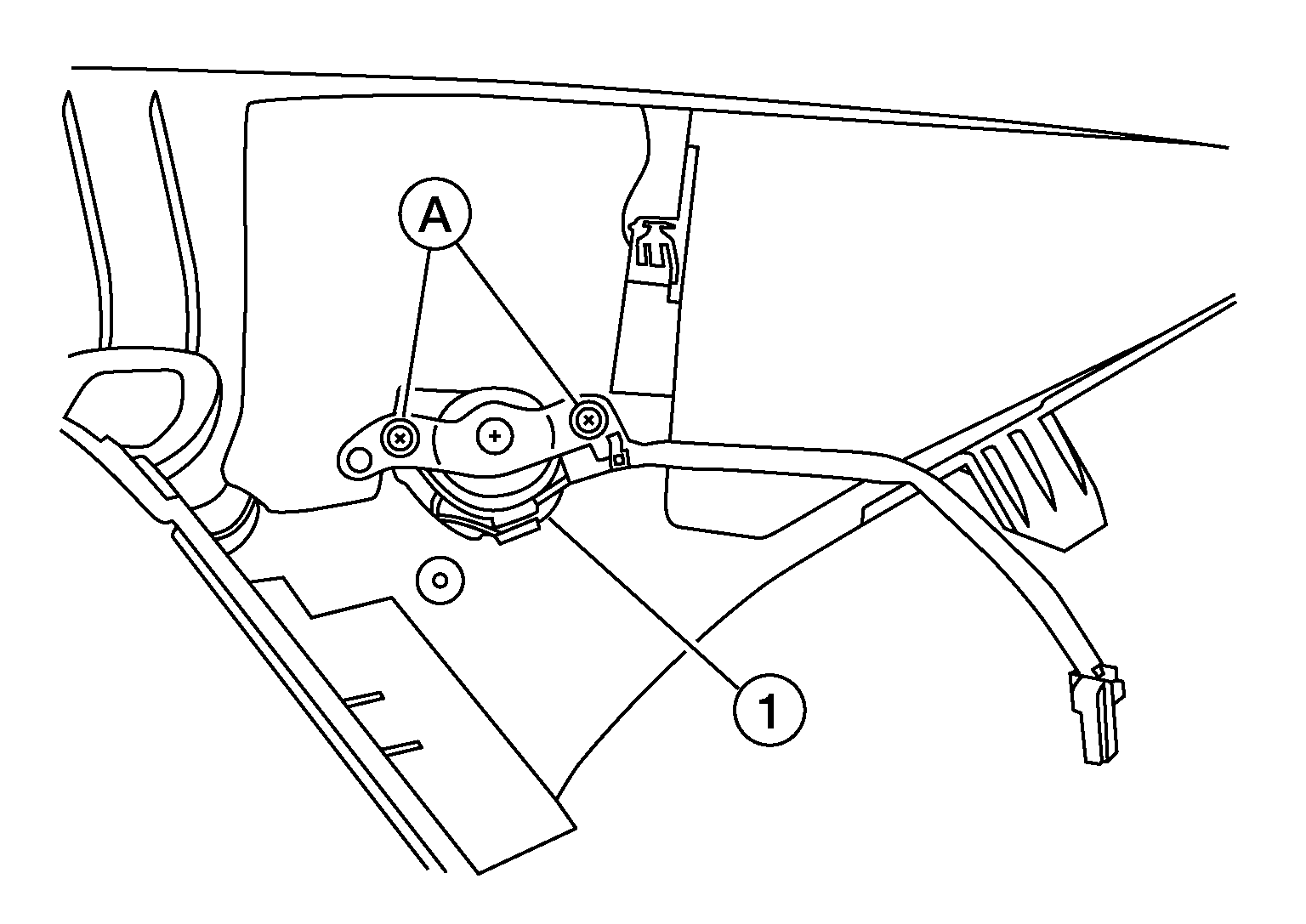

  2. Remove front speaker screws (A).
    GNSALNIA1857Z-857Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from the front pillar speaker (1) and remove front pillar speaker.
