Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front captain seat (LH). Refer to Removal and Installation - Captain Seats .

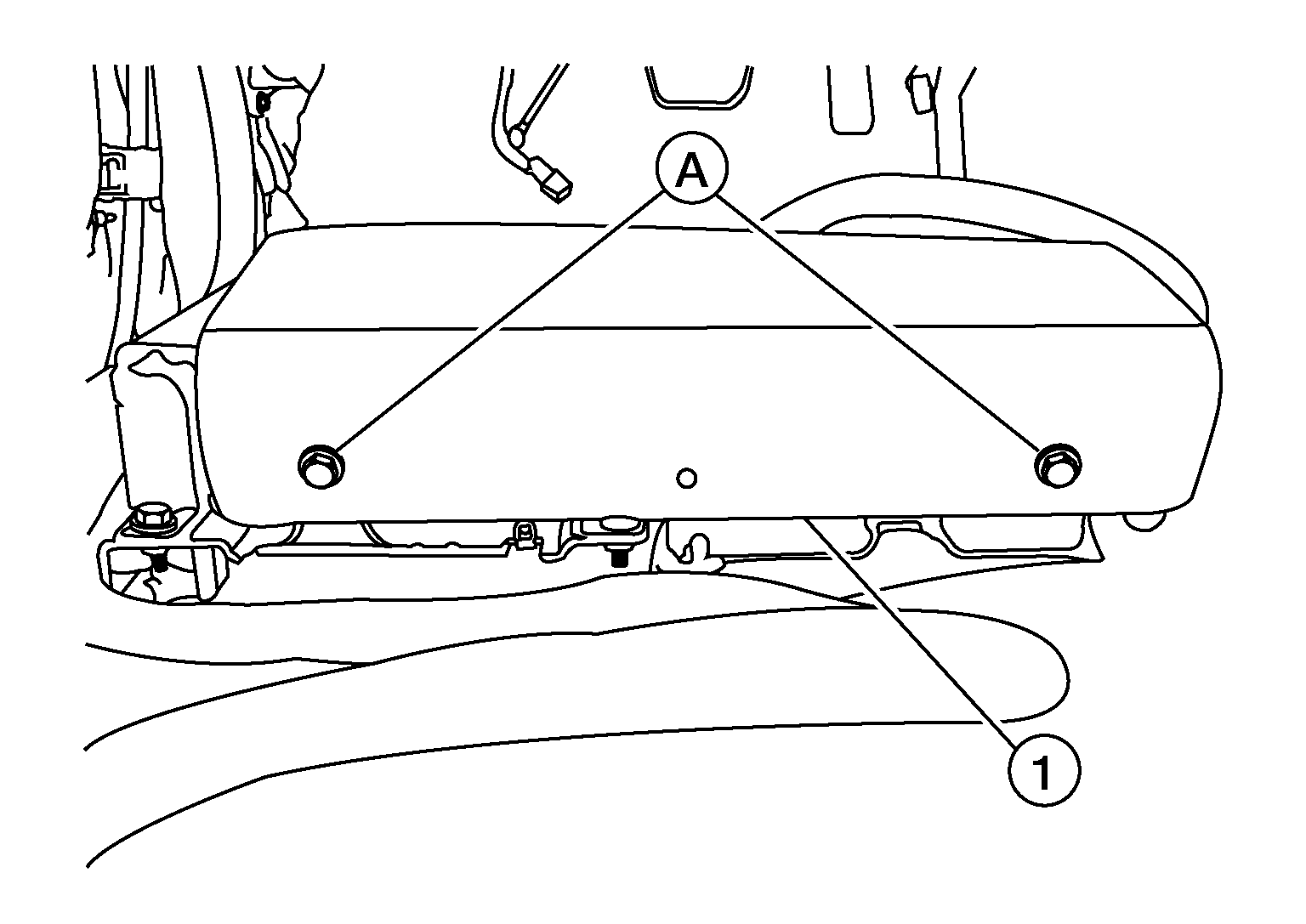

  2. Remove kick plate screws (A) and kick plate (1).
    GNSALNIA1859Z-859Courtesy of NISSAN NORTH AMERICA, INC.

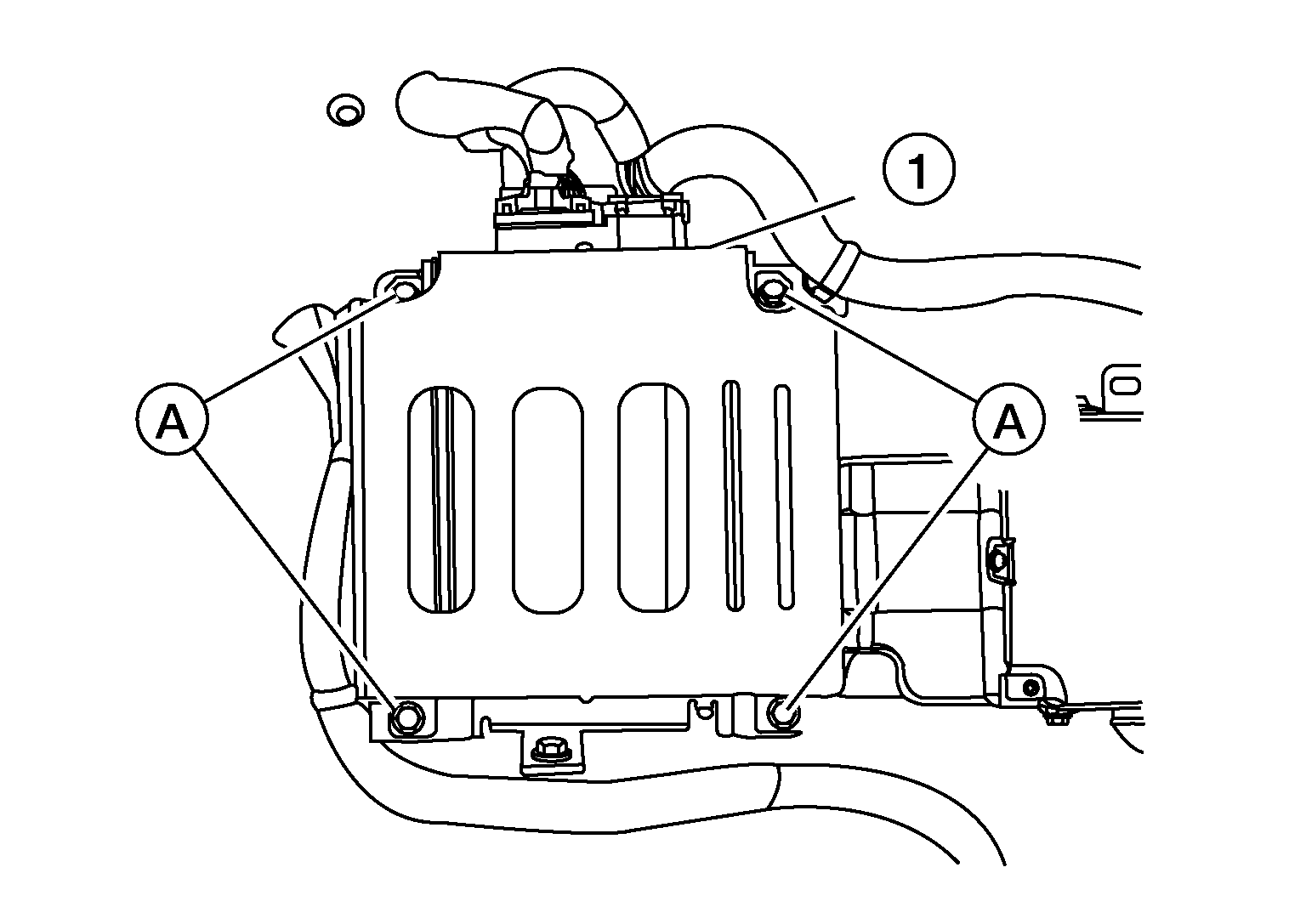

  3. Remove audio amp screws (A).
    GNSALNIA1860Z-860Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connectors from audio amp (1) and remove audio amp.
