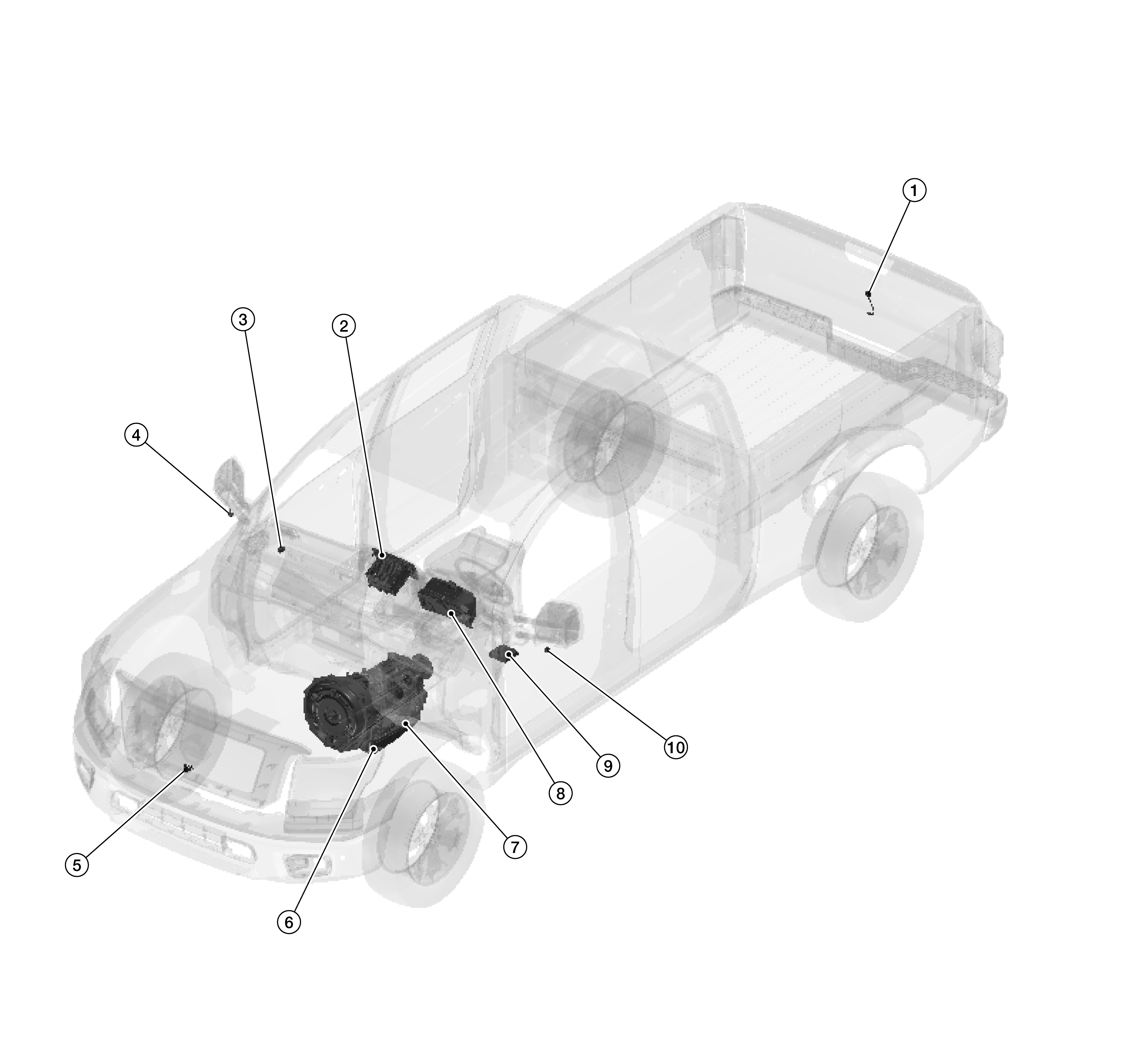

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component |
Function |
|
1. |
Rear view camera |
Refer to Rear Camera . |
|
2. |
AV control unit |
Refer to AV Control Unit . |
|
3. |
Back-up lamp relay |
Supplies the reverse signal to the around view monitor control unit and AV control unit. |
|
4. |
Door mirror RH |
Refer to Side Camera . |
|
5. |
Front camera |
Refer to Front Camera . |
|
6. |
A/T assembly (VK56VD) |
Refer to Transmission Range Switch . |
|
7. |
Transmission range switch (Cummins 5.0L) |
Refer to Transmission Range Switch . |
|
8. |
Combination meter |
Refer to Combination Meter . |
|
9. |
Around view monitor control unit |
Refer to Around View Monitor Control Unit . |
|
10. |
Door mirror LH |
Refer to Side Camera . |
