Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door mirror rear finisher. Refer to Removal and Installation .

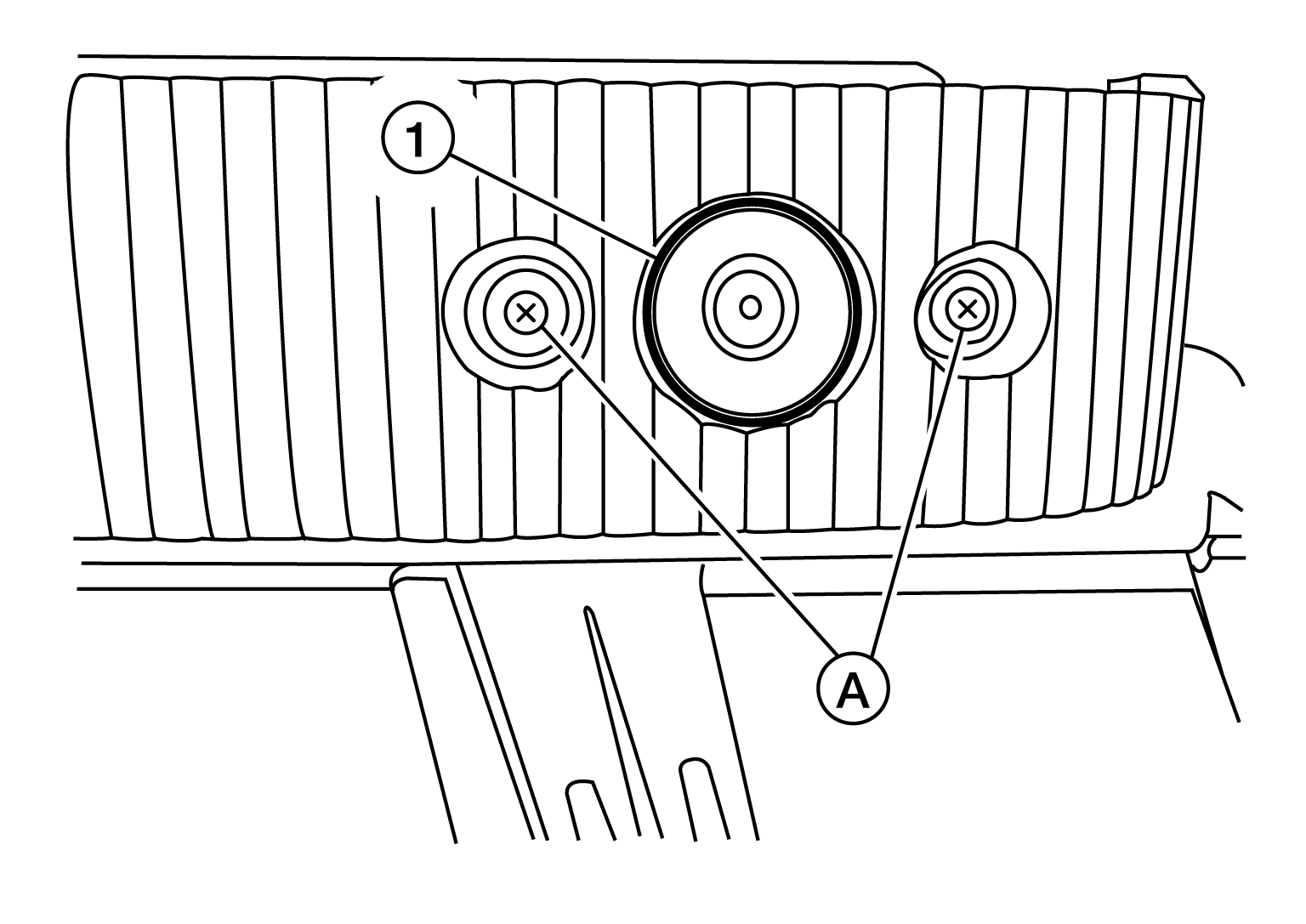

  2. Remove screws (A).
    GNSAWNIA4307Z-307Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from side camera and remove side camera (1).
