Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tailgate handle. Refer to Removal and Installation .

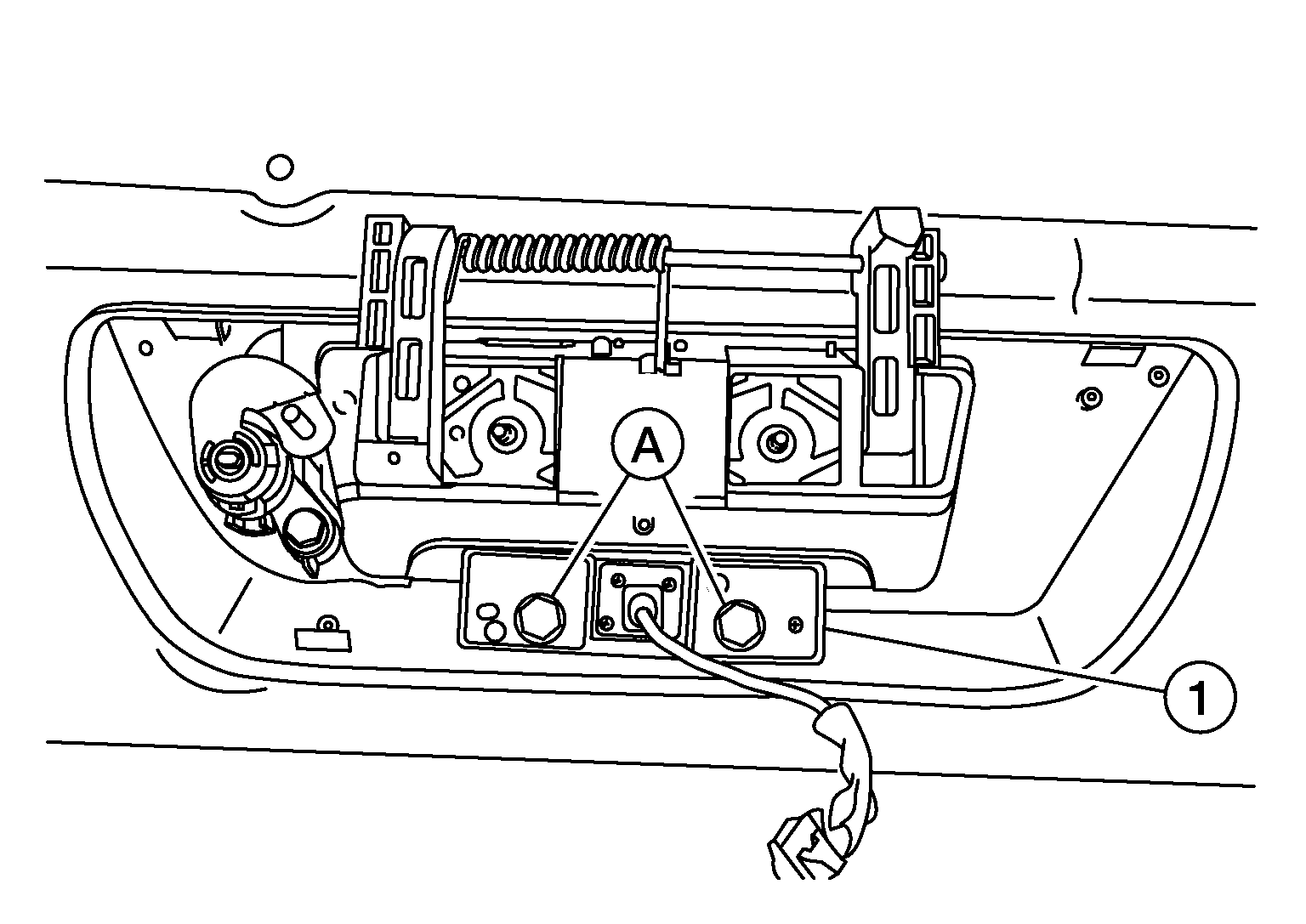

  2. Remove screws (A) from rear camera (1).
    GNSAWNIA4299Z-299Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from rear camera and remove rear camera.
