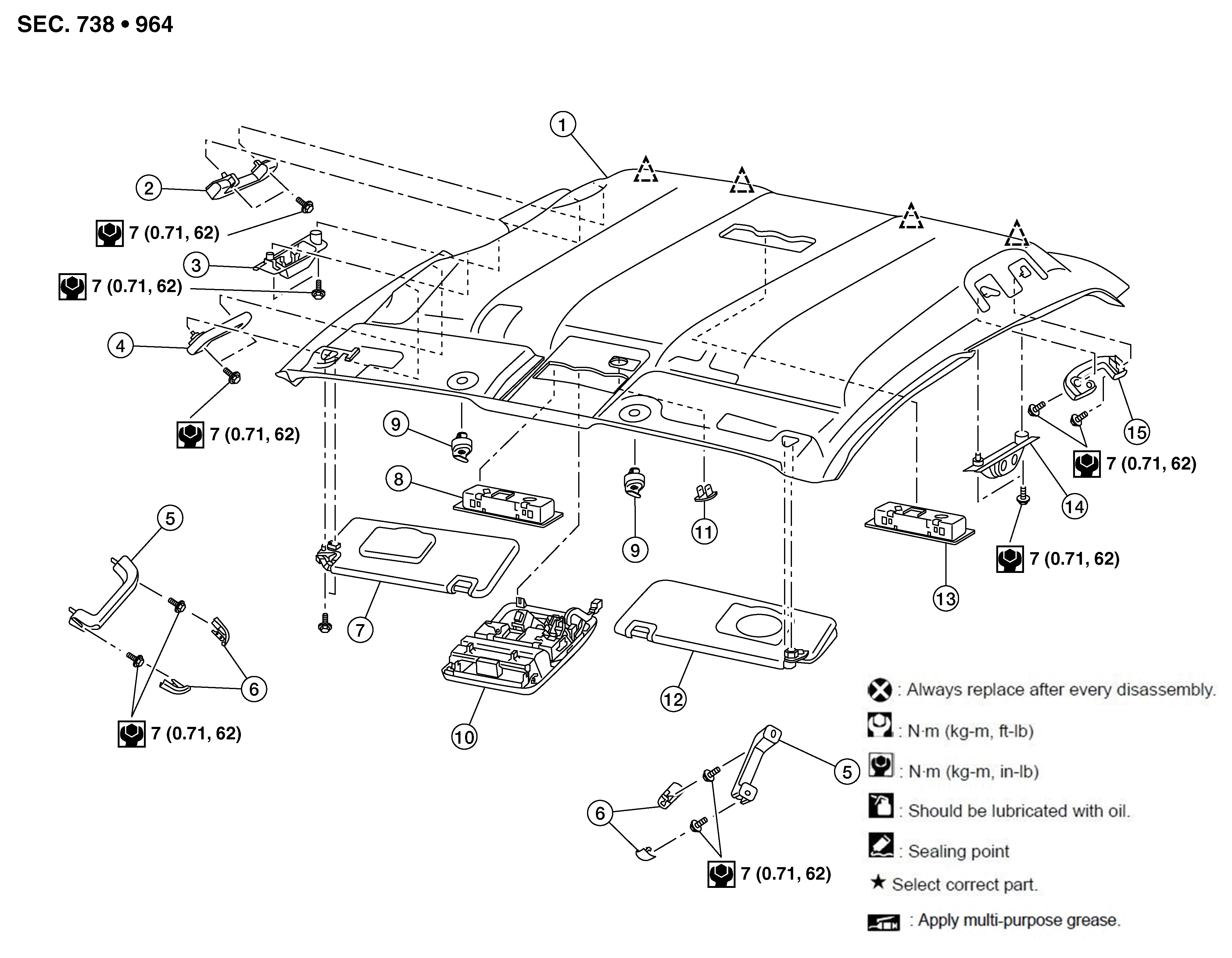

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Headlining |
2. |
Assist grip [with coat hanger (RH)] |
3. |
Rear upper door lock striker cover (RH) |
|
4. |
Front assist grip |
5. |
Front pillar assist grip |
6. |
Front pillar assist grip bolt covers |
|
7. |
Sun visor (RH) |
8. |
Front room/map lamp assembly (if equipped) |
9. |
Sun visor holder |
|
10. |
Front roof console (if equipped) |
11. |
Microphone cover (if equipped) |
12. |
Sun visor (LH) |
|
13. |
Personal lamp |
14. |
Rear upper door lock striker cover (LH) |
15. |
Assist grip [with coat hanger (LH)] |
|
|
Clip |
