Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

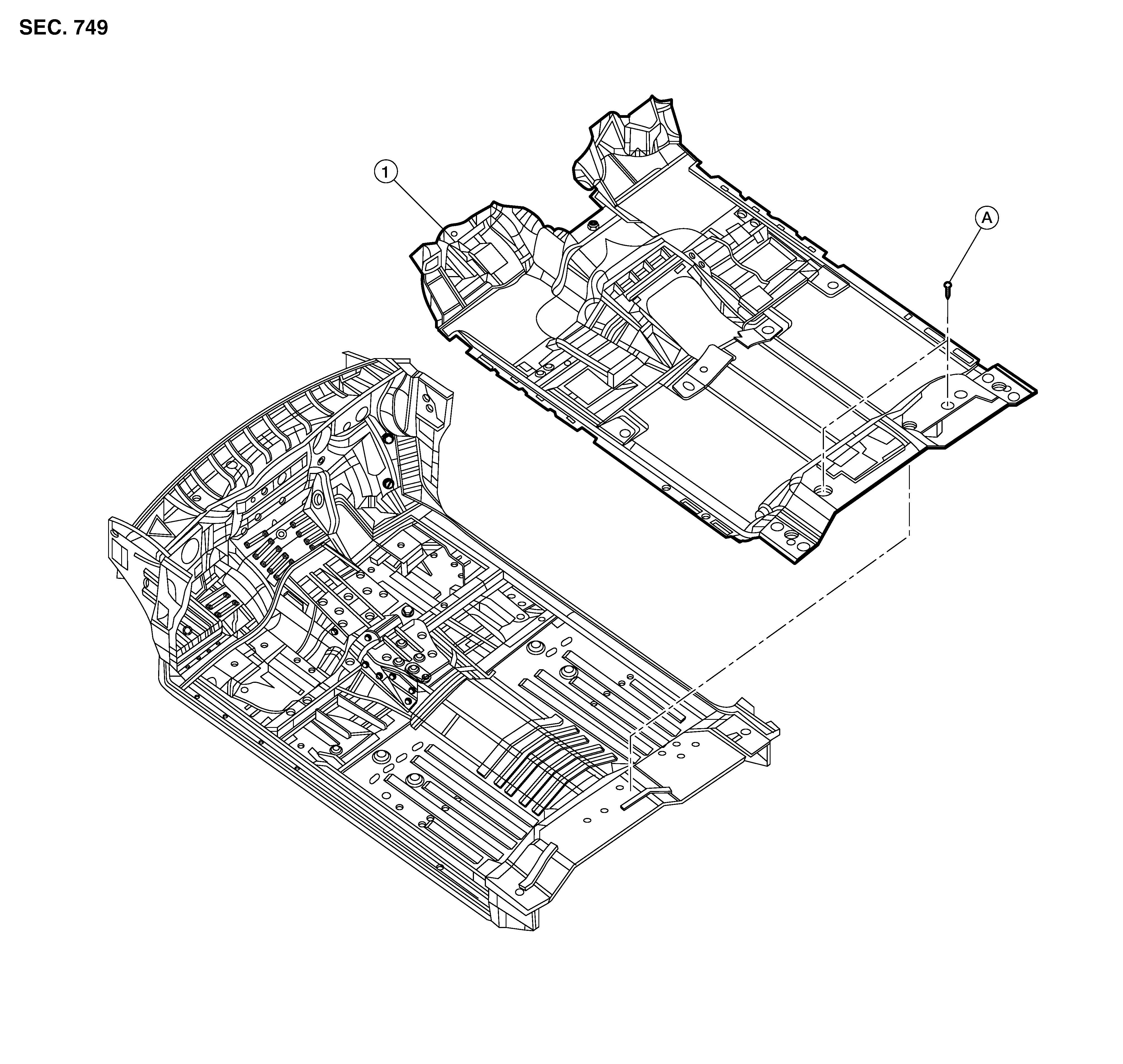

Fig 1: With Rear Seat

Courtesy of NISSAN NORTH AMERICA, INC.

Carpet

Clip

Fig 2: Without Rear Seat

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Carpet	2.	Floor duct spacer	3.	Rear floor spacer
4.	Rope hook assembly finisher	5.	Rope hook assembly		Pawl
