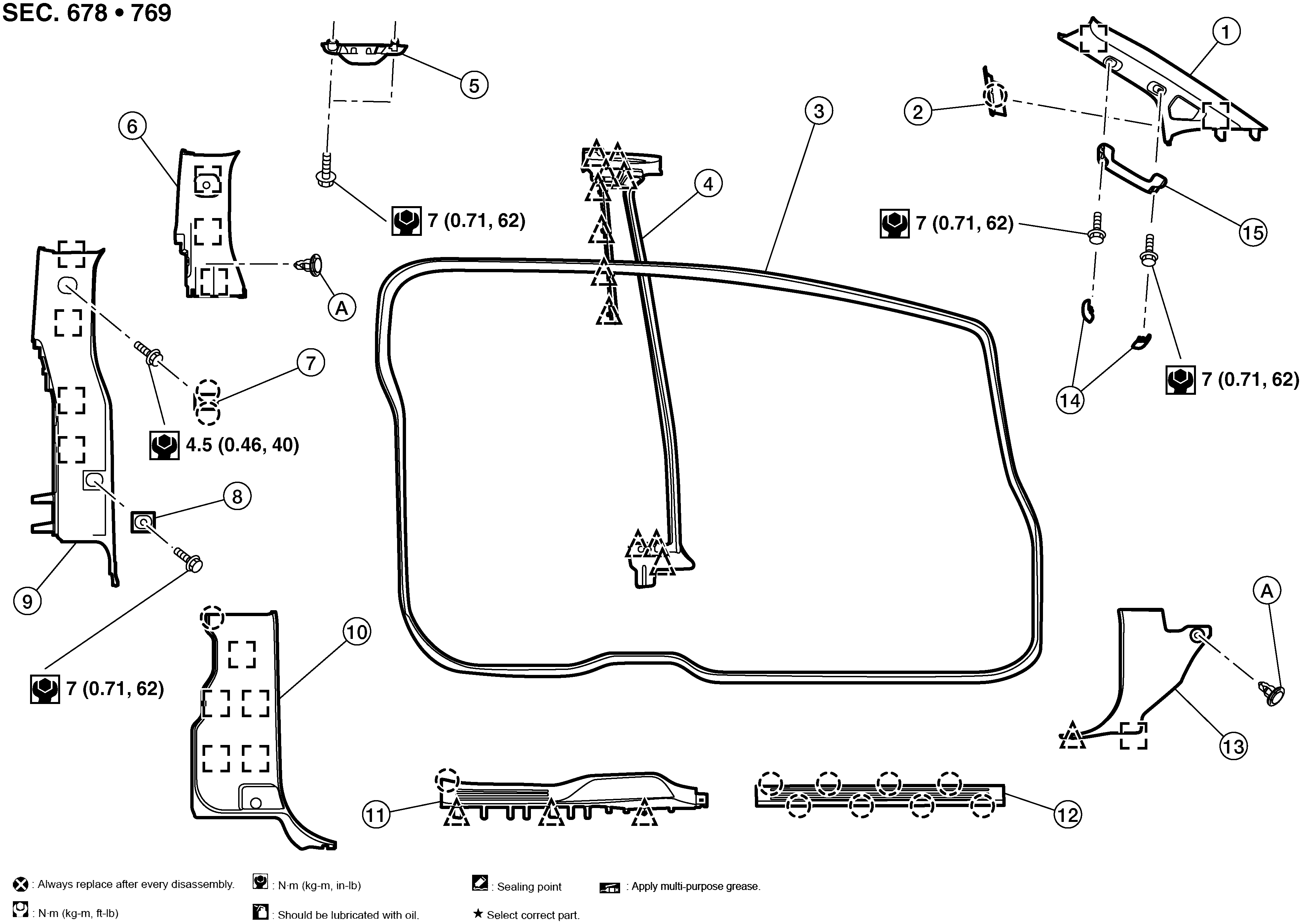

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front pillar finisher |
2. |
Side defroster grille (LH) |
3. |
Body side welt (LH) |
|
4. |
Rear door weather strip |
5. |
Rear upper door lock striker cover |
6. |
Rear pillar upper finisher (with rear seat) |
|
7. |
Rear pillar finisher escutcheon |
8. |
Rope hook assembly |
9. |
Rear pillar finisher (without rear seat) |
|
10. |
Rear pillar lower finisher (with rear seat) |
11. |
Rear kicking plate |
12. |
Front kicking plate |
|
13. |
Dash side finisher (LH) |
14. |
Front pillar assist grip bolt cover |
15. |
Front pillar assist grip |
|
A. |
Clip |
|
Clip |
|
Pawl |
|
|
Metal clip |
