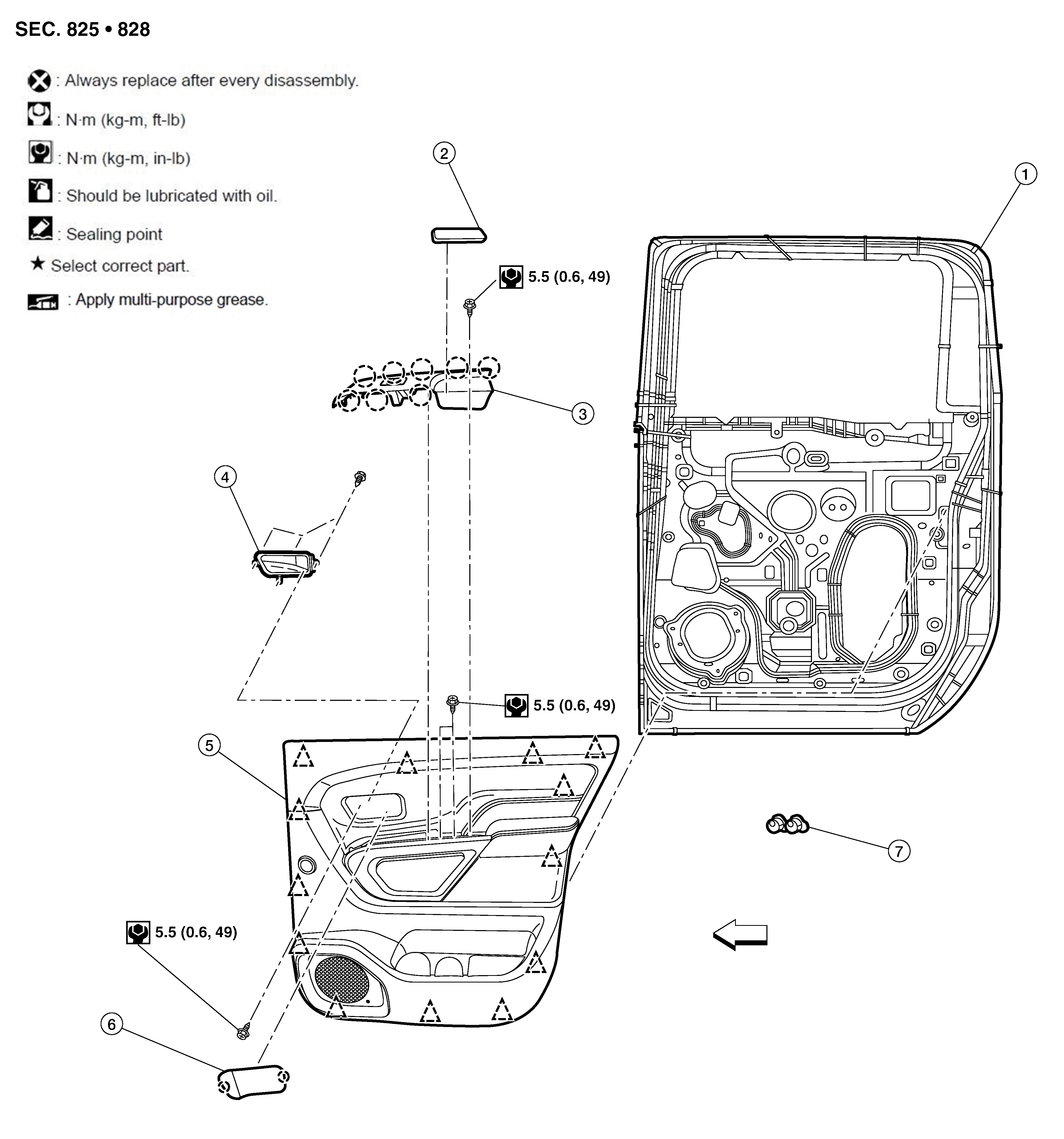

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear door panel
|
2.
|
Switch finisher screw cover
|
3.
|
Rear power window switch finisher
|
|
4.
|
Inside door handle
|
5.
|
Rear door finisher
|
6.
|
Inside door handle escutcheon
|
|
7.
|
Grommet
|
|
Clip
|
|
Pawl
|
|
|
Front
|
