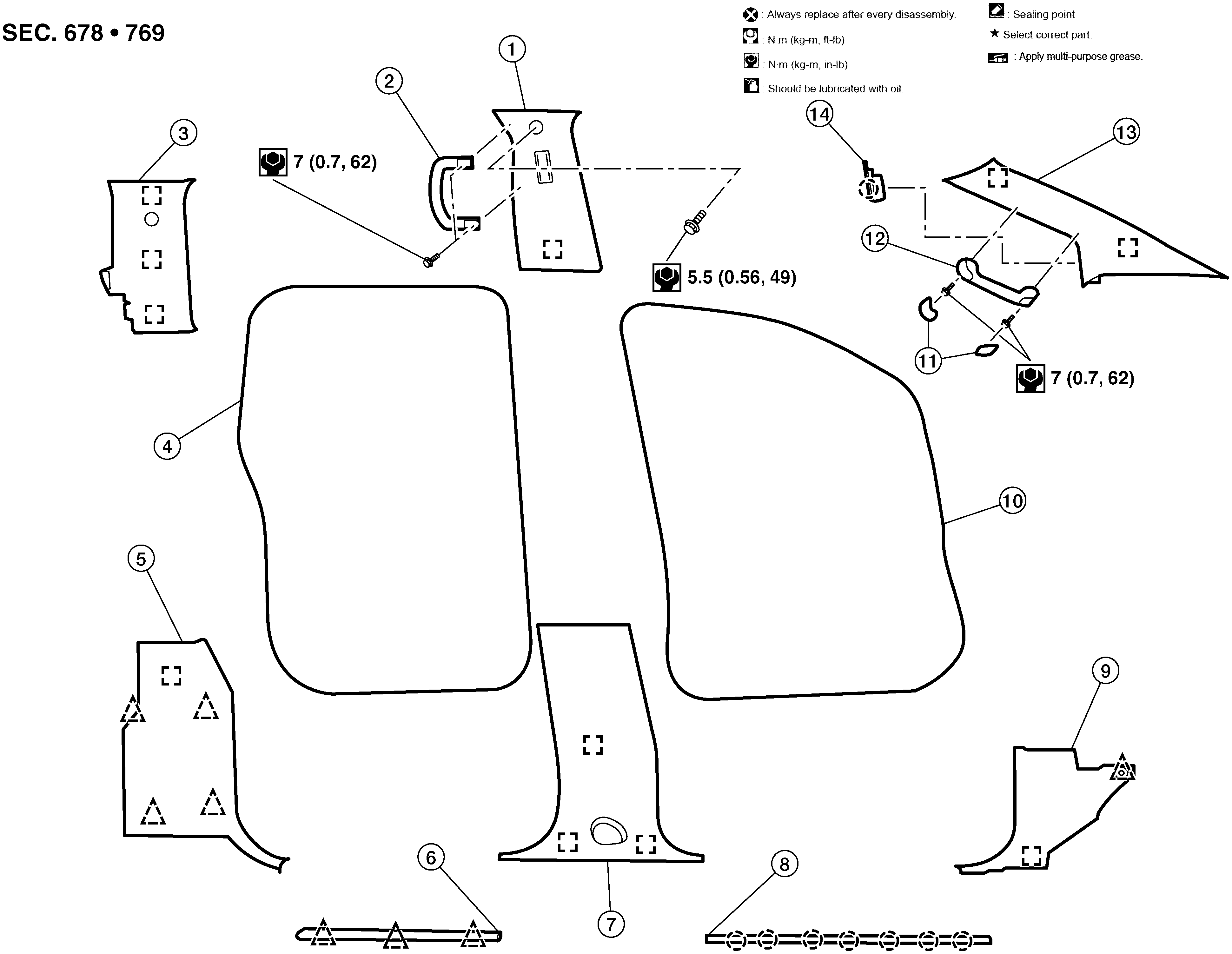

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Center pillar upper finisher |
2. |
Center pillar assist grip |
3. |
Rear pillar upper finisher |
|
4. |
Rear body side welt |
5. |
Rear pillar lower finisher |
6. |
Rear kicking plate |
|
7. |
Center pillar lower finisher |
8. |
Front kicking plate |
9. |
Dash side finisher |
|
10. |
Front body side welt |
11. |
Front pillar assist grip bolt cover |
12. |
Front pillar assist grip |
|
13. |
Front pillar finisher |
14. |
Side defroster grille |
|
Pawl |
|
|
Clip |
|
Metal clip |
