Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Open the glass lid.

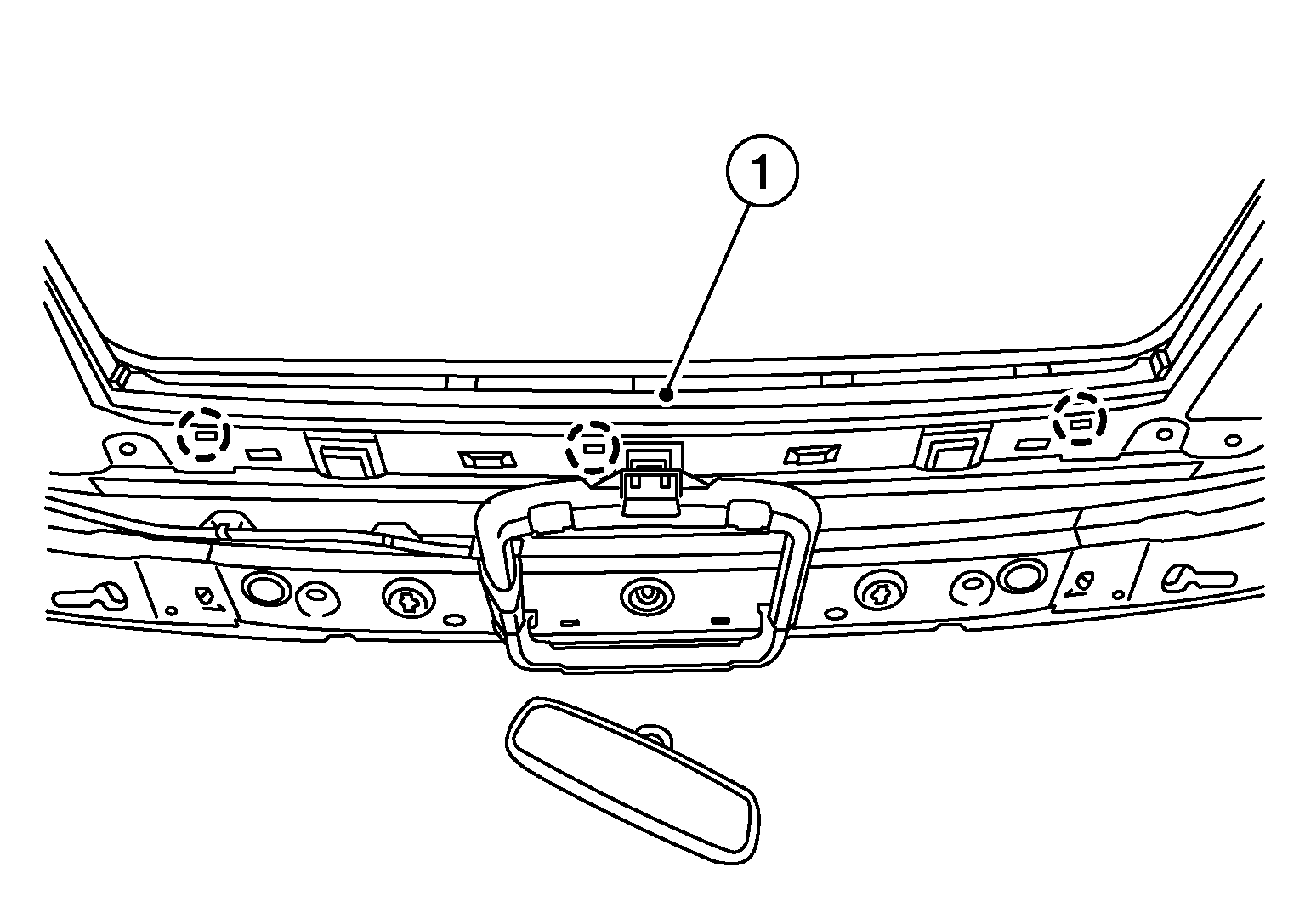

- Release pawls to slide back the wind deflector assembly (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Lift front of wind deflector to remove from slots.
|
|
: Pawl
|

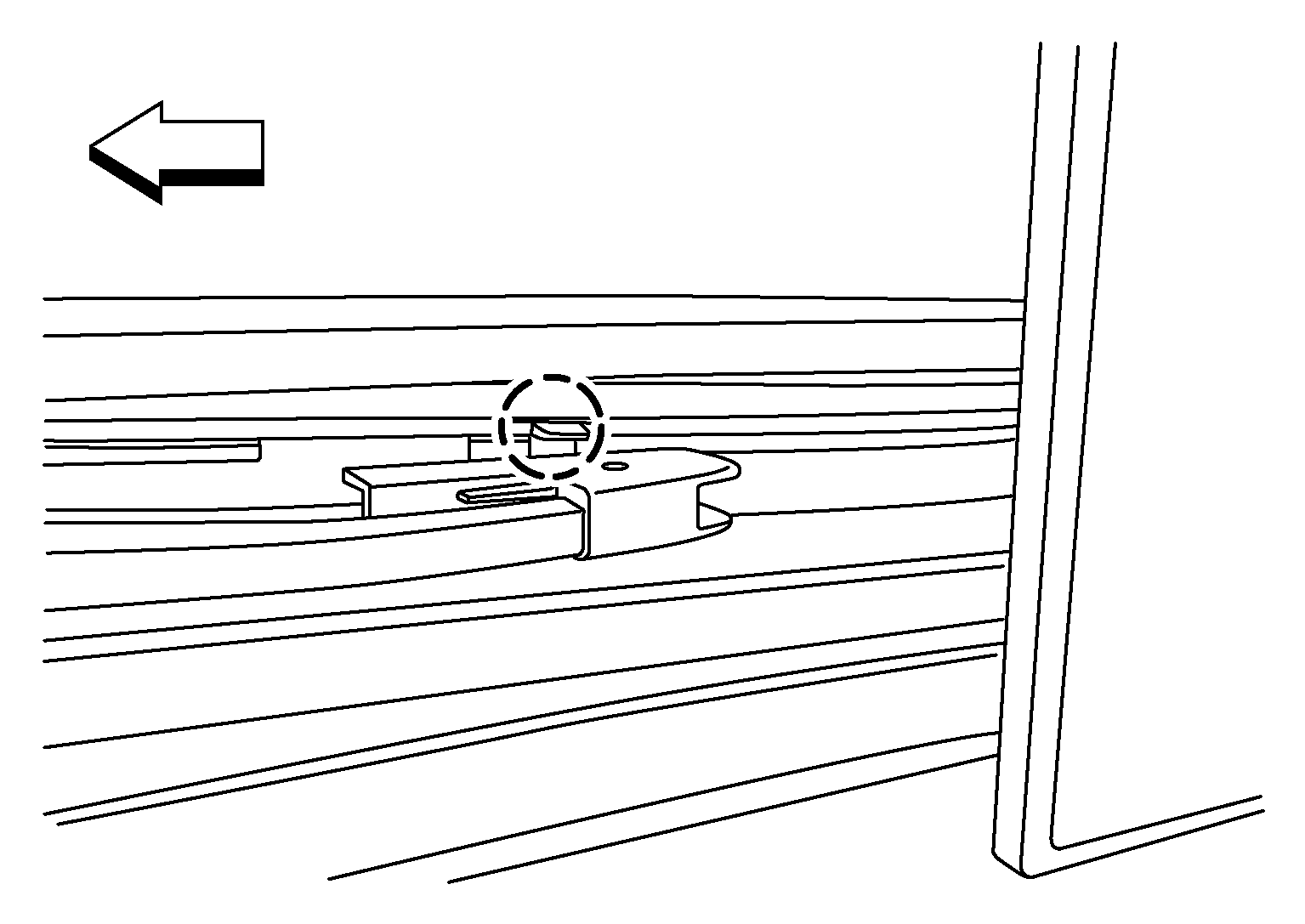

- Release the pawls on each side arm, then slide forward to remove wind deflector from moonroof unit assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Front
|
|
|
: Pawl
|
