Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

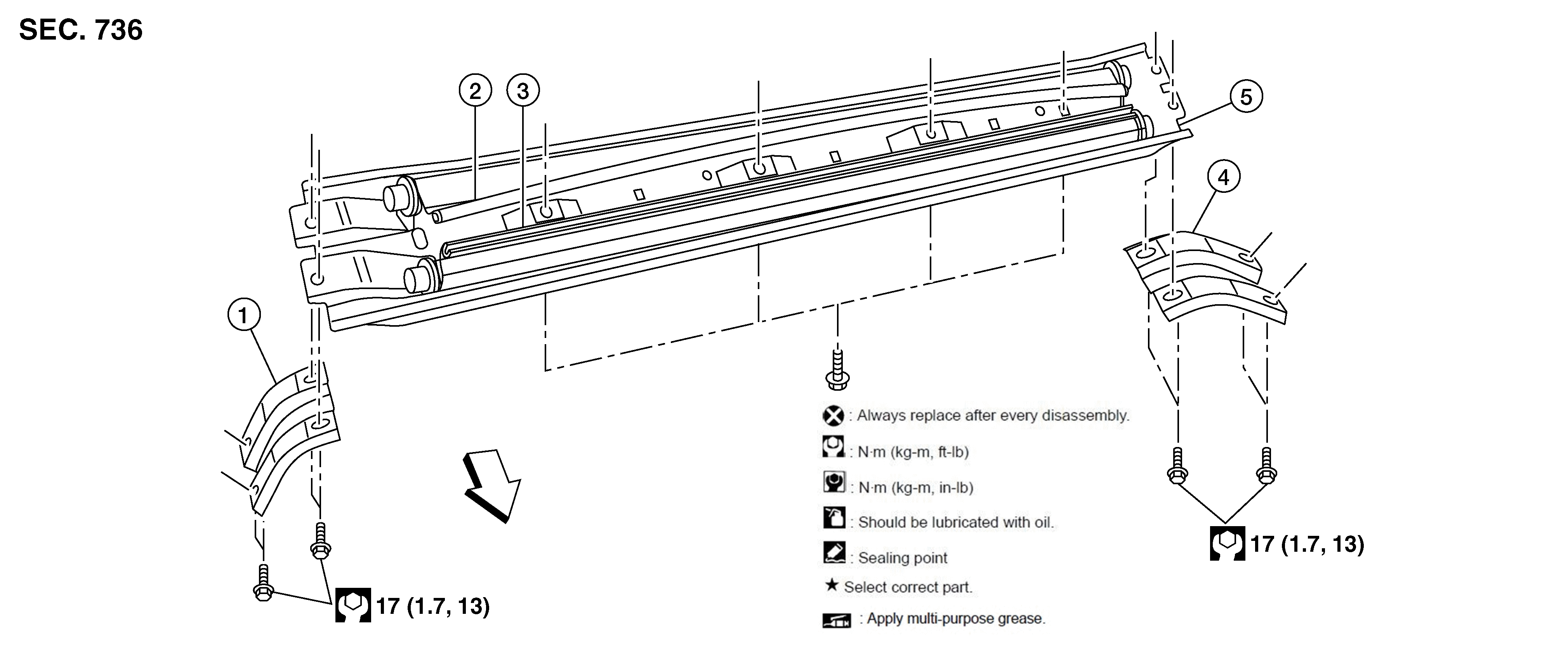

Fig 1: Sunshade Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center bracket (RH)	2.	Rear sunshade	3.	Front sunshade
4.	Center bracket (LH)	5.	Sunshade carrier assembly		Front
