Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing sunshade motor, check that glass lid is fully closed.
After removing sunshade motor, do not attempt to rotate sunshade motor assembly as a single unit.

Close glass lid.
Remove the headlining. Refer to Removal and Installation .

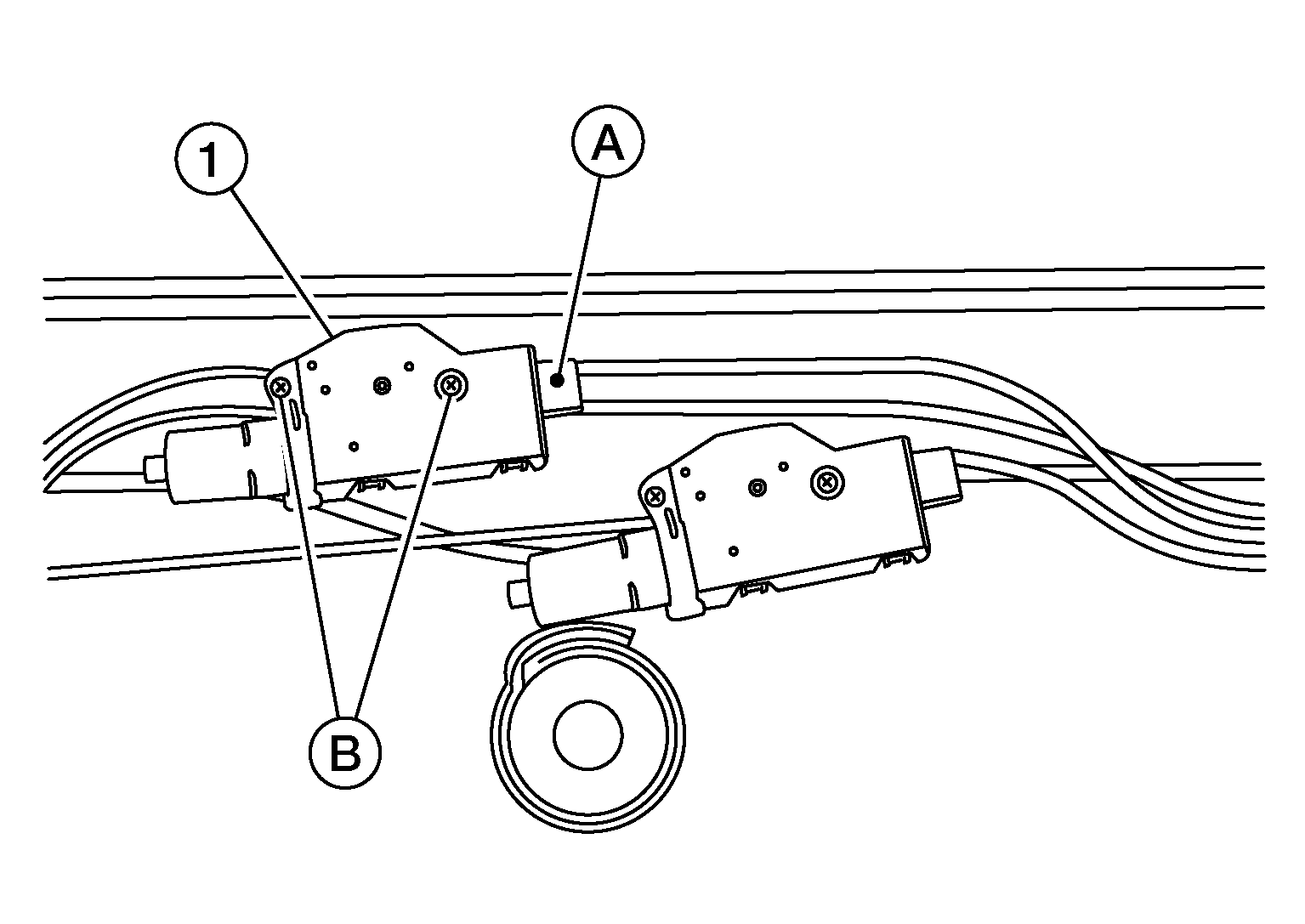

Disconnect the harness connector (A) from the sunshade motor assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove sunshade motor assembly screws (B), then remove sunshade motor assembly from moonroof unit assembly.
