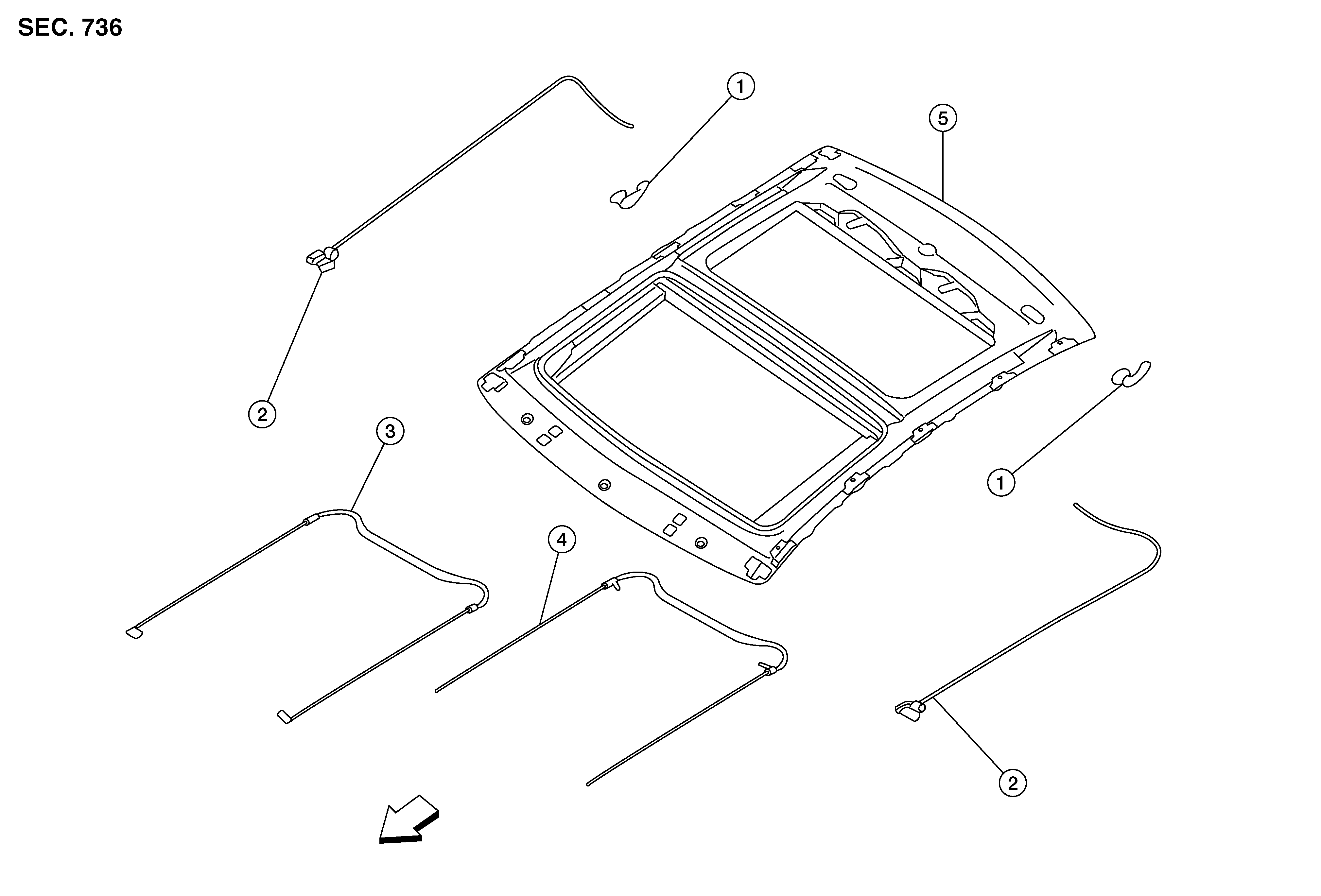

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Link and guide (LH/RH)
|
2.
|
Moonroof guide assembly (LH/RH)
|
3.
|
Front sunshade guide assembly
|
|
4.
|
Rear sunshade guide assembly
|
5.
|
Moonroof unit assembly
|
|
Front
|
