Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Keep heat and open flames away as primers and adhesive are flammable.
  • The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Do not let them contact the skin or eyes.
  • Use in an open, well ventilated location. Do not breathe the vapors. They may be harmful if inhaled. Move immediately to an area with fresh air if affected by vapor inhalation.
CAUTION: After installing the moonroof unit assembly and glass lid, perform the leak test and check that there is no air or water intrusion.
NOTE:
  • Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions furnished with it.
  • Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely cured (approximately 24 hours). Curing time varies with temperature and humidity.

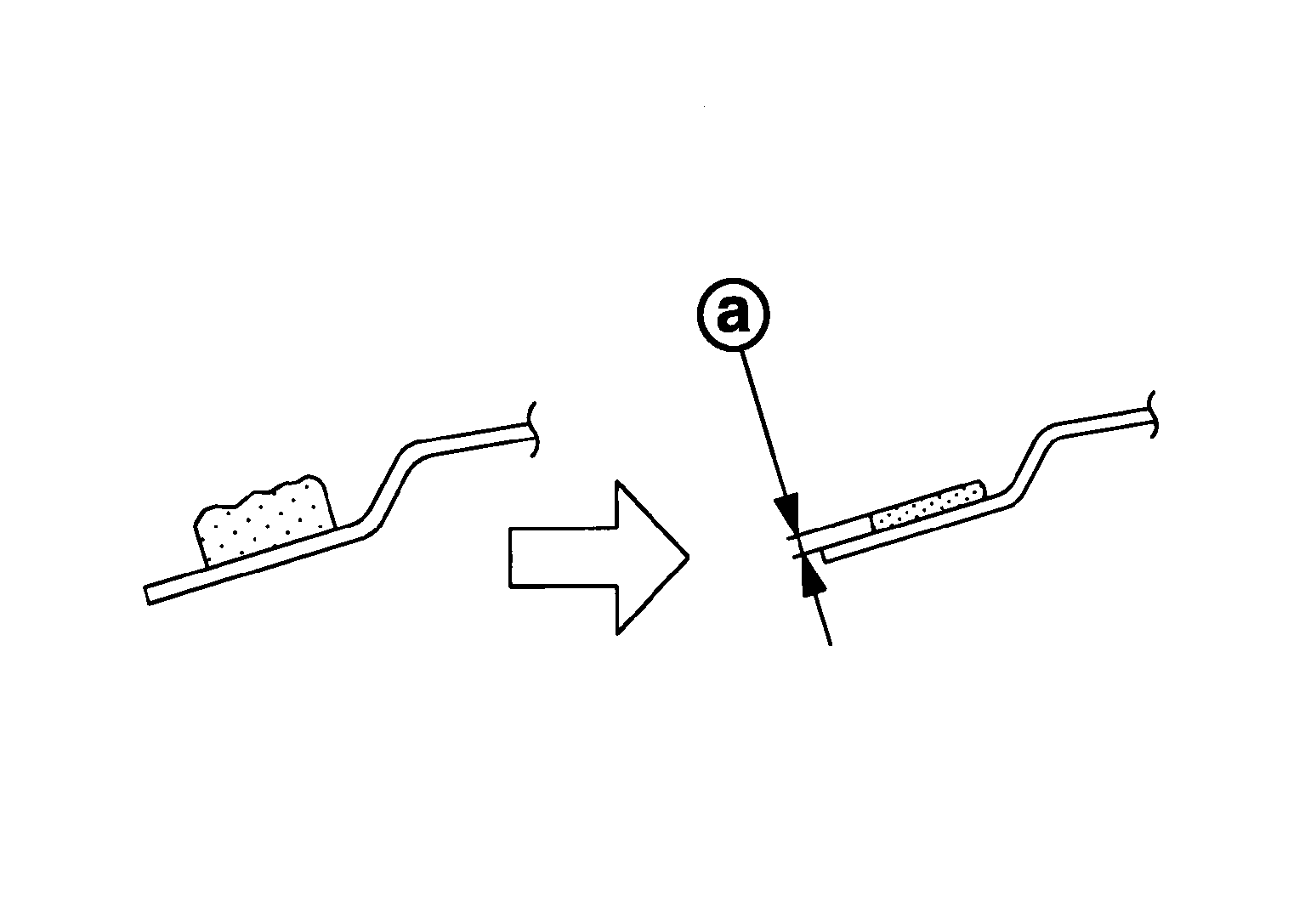

  1. Using a suitable tool, trim the adhesive (sealant) remaining on body down to approximately 2 mm thick (a) so that the contour becomes smooth.
    GNSJMKIA0307Z-307Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: If bonded area on body is scratched, be sure to repair it with a 2-component urethane. Do not use lacquer.
  2. When installing new moonroof unit assembly, mount the roof frame dry (no adhesive) first onto the vehicle and paint mating marks on body and moonroof frame, then remove moonroof frame again.
  3. Thoroughly clean bonding area on moonroof frame and body with isopropyl alcohol or equivalent.
  4. Apply primer to the body and the moonroof frame (lower) surfaces.
  5. Apply adhesive along the entire circumference of the moonroof unit assembly frame contact area of body within the time specified in the instructions for the adhesive.
    GNSALKIA1649Z-649Courtesy of NISSAN NORTH AMERICA, INC.
    • Open adhesive by cutting off the nozzle tip and set it in a sealant gun.

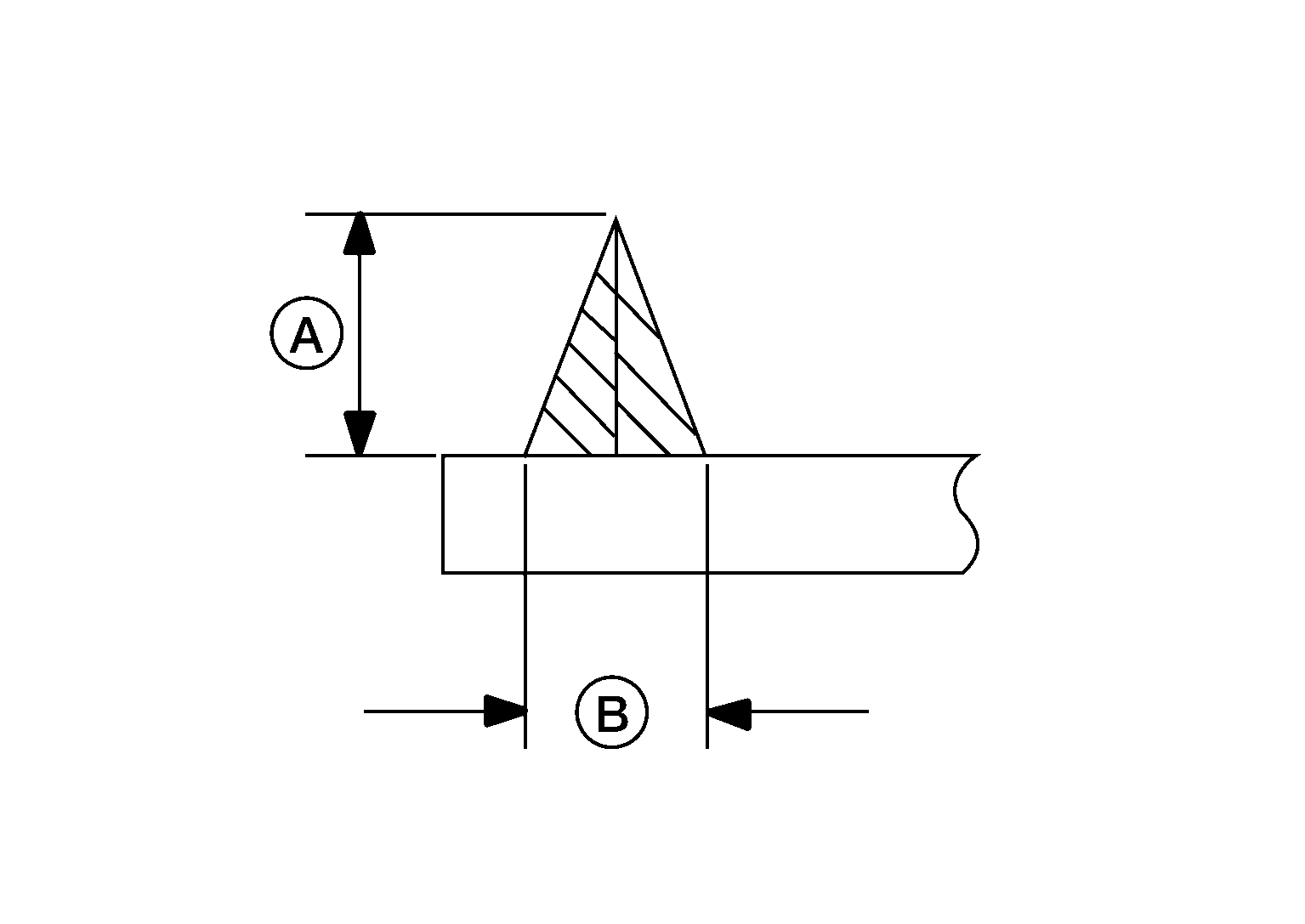

    • Form a continuous bead of adhesive resembling the measurements in applied thickness (A), and in applied width (B) on the body panel.

      Adhesive applied thickness (A)

      : 13 ± 1 mm (0.51 in ± 0.04 in)

      Adhesive applied width (B)

      : 8 ± 1 mm (0.31 ± 0.04 in)
  6. Using a helper, position the moonroof unit assembly frame over the body, visually aligning the paint mating marks. Then, lower the studs at each corner through the body panel holes, carefully installing the moonroof unit assembly to the body.

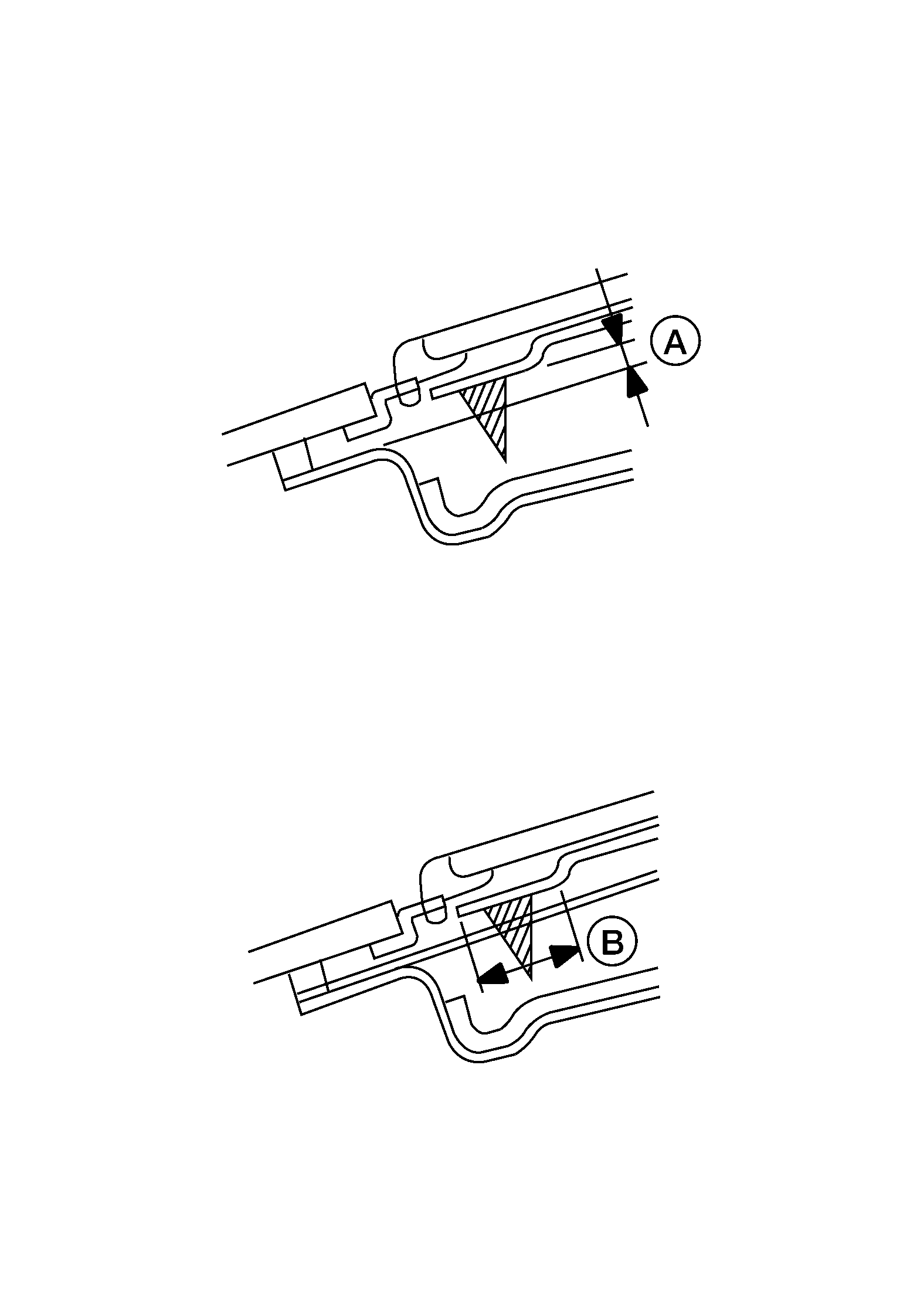

  7. Press down lightly by hand only on the frame to expand the adhesive contact completely so that it resembles a compressed thickness (A), and a compressed width (B) between the moonroof unit assembly frame and the body.
    GNSALKIA1650Z-650Courtesy of NISSAN NORTH AMERICA, INC.

    Adhesive compressed thickness (A)

    : 5 +1.5/-0.5 mm (0.20 +0.06/-0.02 in)

    Adhesive compressed width (B)
  8. Install moonroof unit assembly nuts and bolts.
  9. Install the sunshade carrier assembly. Refer to Removal and Installation .
  10. Using a suitable tool, remove any adhesive overflow, or work into pocket voids so as to make the surface edge smooth.
  11. Install the rear moonroof glass. Refer to Removal and Installation .
  12. Install the rear window glass. Refer to Removal and Installation .
  13. Install the roof finishers. Refer to Removal and Installation .
  14. Install the front moonroof glass. Refer to Removal and Installation .
  15. Connect the harness connectors to the moonroof motor assembly and sunshade motor assembly.
  16. Install the wind deflector. Refer to Removal and Installation .
  17. Install the glass lid. Refer to Removal and Installation .
    NOTE: After installation, carry out fitting adjustment. Refer to Inspection and Adjustment .
  18. Install the antenna. Refer to Disassembly and Assembly .
  19. Install the headlining. Refer to Removal and Installation .
  20. Check for water leaks.
    NOTE:
    • Perform the water leakage check more than 2 hours after moonroof unit assembly installation.
    • After glass lid fitting adjustment, carry out water leakage check by spreading water over entire roof surface.
  21. Remove the protective tape from the vehicle.
