Inspection and Adjustment: Adjustment
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Always work with a helper.
- Handle glass lid assembly with care to prevent damage.
NOTE:
- For easier and more accurate installation, always mark each point before removal.
- After any adjustment, check moonroof operation and glass lid assembly alignment.

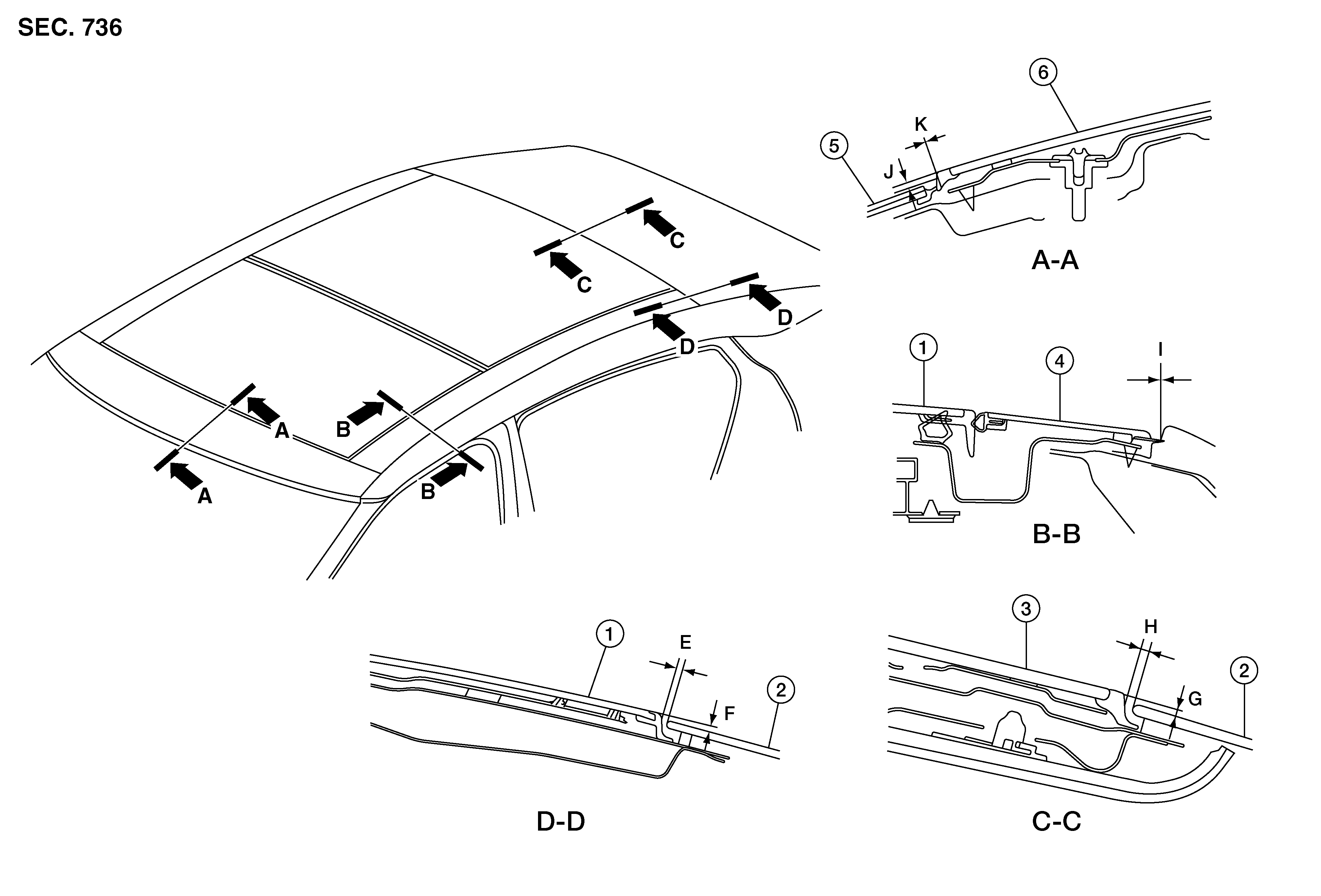

Unit: mm (in)
|
1. |
Glass lid |
2. |
Rear window glass |
3. |
Rear moonroof glass |
|
4. |
Roof side finisher |
5. |
Windshield |
6. |
Front moonroof glass |
|
E. |
3.0 ± 2.2 (0.118 ± 0.087) |
F. |
2.7 ± 2.0 (0.106 ± 0.079) |
G. |
2.0 + 2.2 - 1.7 (0.079 + 0.087 - 0.067) |
|
H. |
3.0 ± 2.1 (0.118 ± 0.083) |
I. |
0.0 (No clearance) |
J. |
4.5 ± 2.0 (0.177 ± 0.079) |
|
K |
0.0 (No clearance) |
- Open sunshade.
- Tilt glass lid up, then slide rearward to expose all the glass lid bolts.
- Loosen glass lid bolts (4 each on left and right sides), then fully close glass lid.
- Manually adjust glass lid from outside of vehicle so gaps A-A and B-B are within specifications.NOTE: Temporarily snug glass lid bolts to prevent movement between each adjustment.
- Tilt glass lid up and down several times using moonroof switch to check that it operates smoothly.
- Open glass lid up and tighten bolts. Refer to Exploded View .
- Perform initialization procedure to make sure the closing operation is accurate and synchronized properly. Refer to Special Repair Requirement .
- Perform water leak test.
