Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing moonroof motor, check that glass lid is fully closed.
After removing moonroof motor, do not attempt to rotate moonroof motor assembly as a single unit.

Close glass lid.
Remove the headlining. Refer to Removal and Installation .

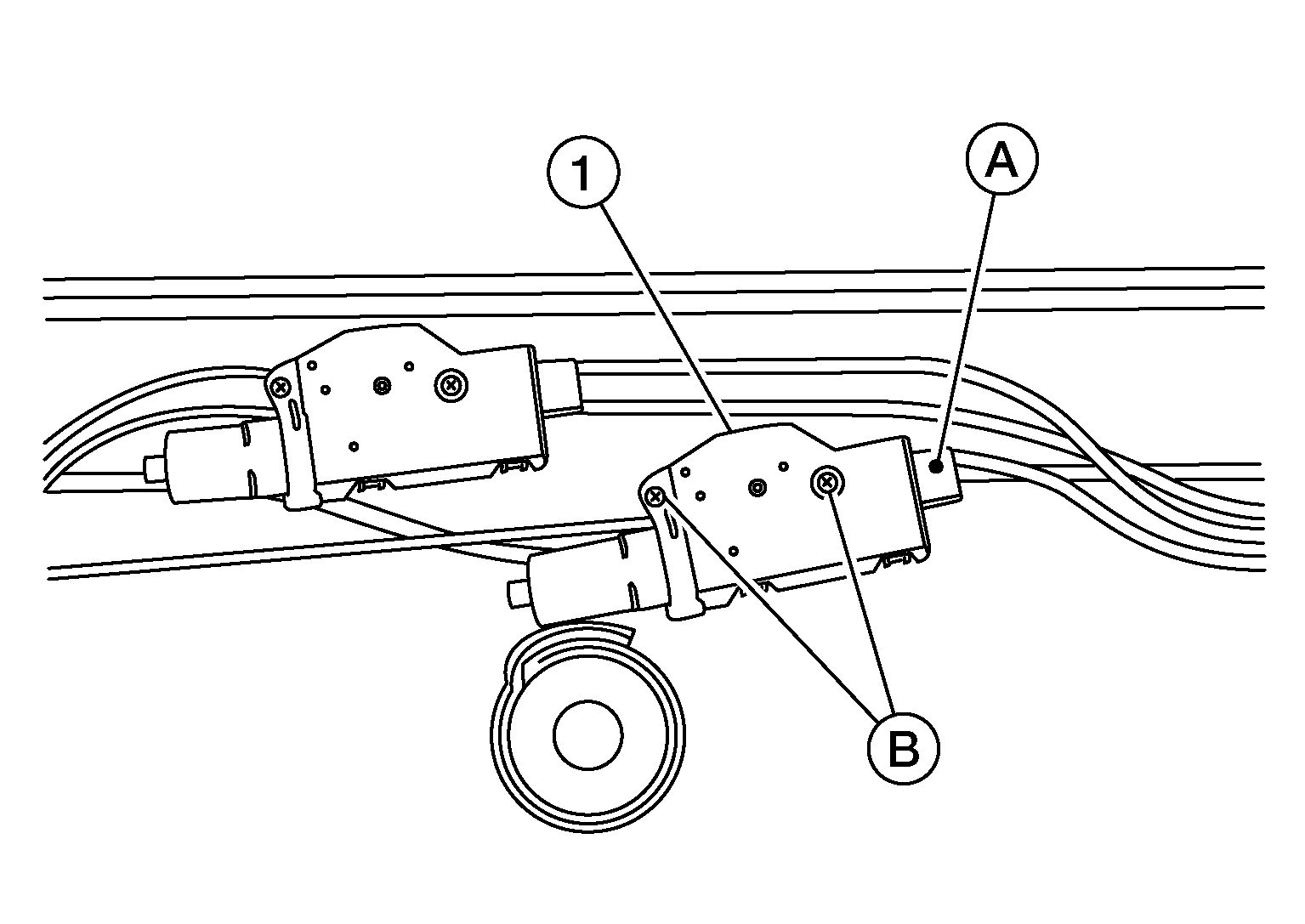

Disconnect the harness connector (A) from the moonroof motor assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove moonroof motor assembly screws (B), then remove moonroof motor assembly from moonroof unit assembly.
