Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

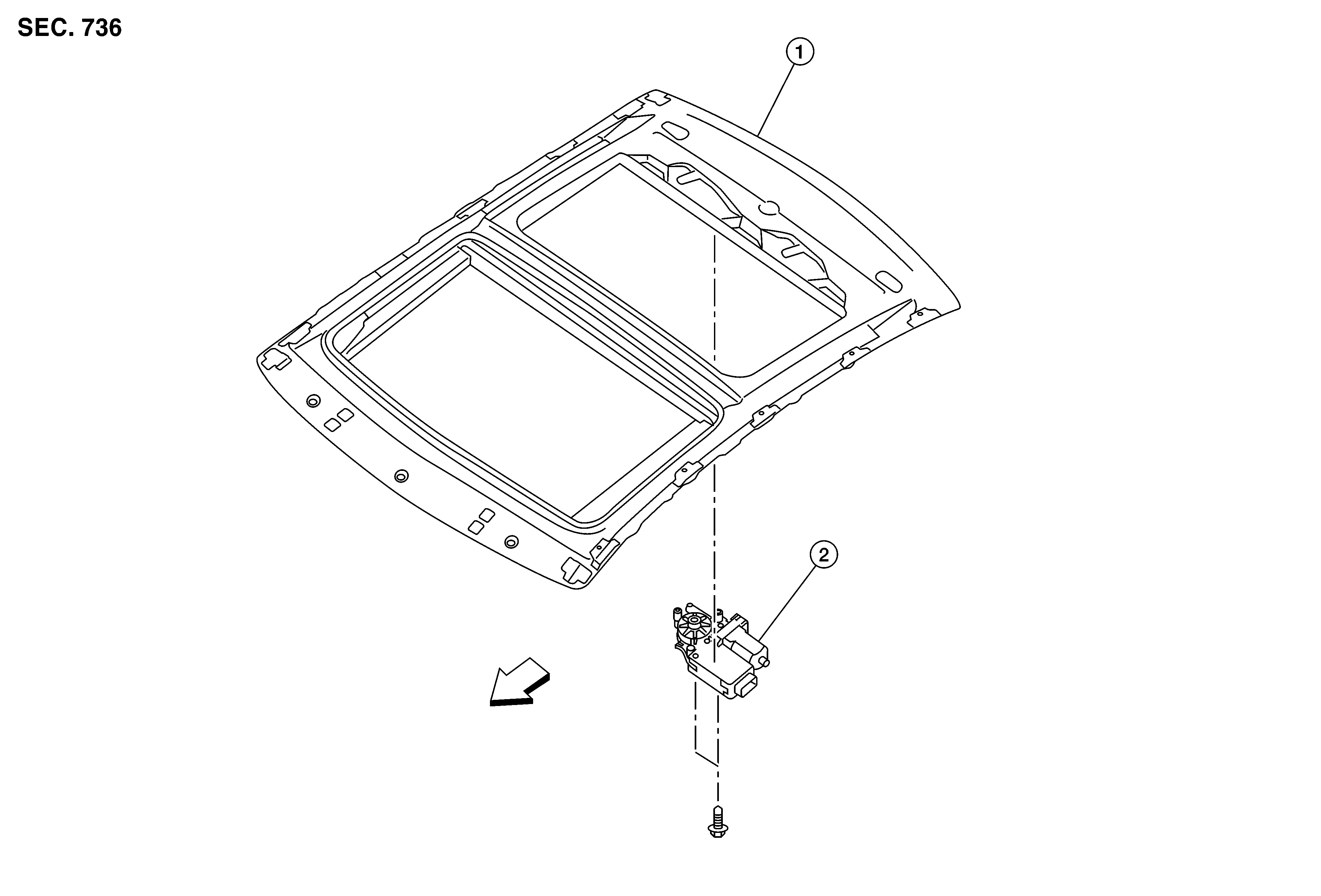

GNSAWIIA2027Z-027Courtesy of NISSAN NORTH AMERICA, INC.

1.

Moonroof unit assembly

2.

Moonroof motor assembly

SYMBOL

Front
