Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always work with a helper.
Handle glass lid with care to prevent damage.

NOTE: For easier and more accurate installation, always mark each point before removal.

Open sunshade.
Tilt glass lid up, then slide rearward to expose all the glass lid bolts.

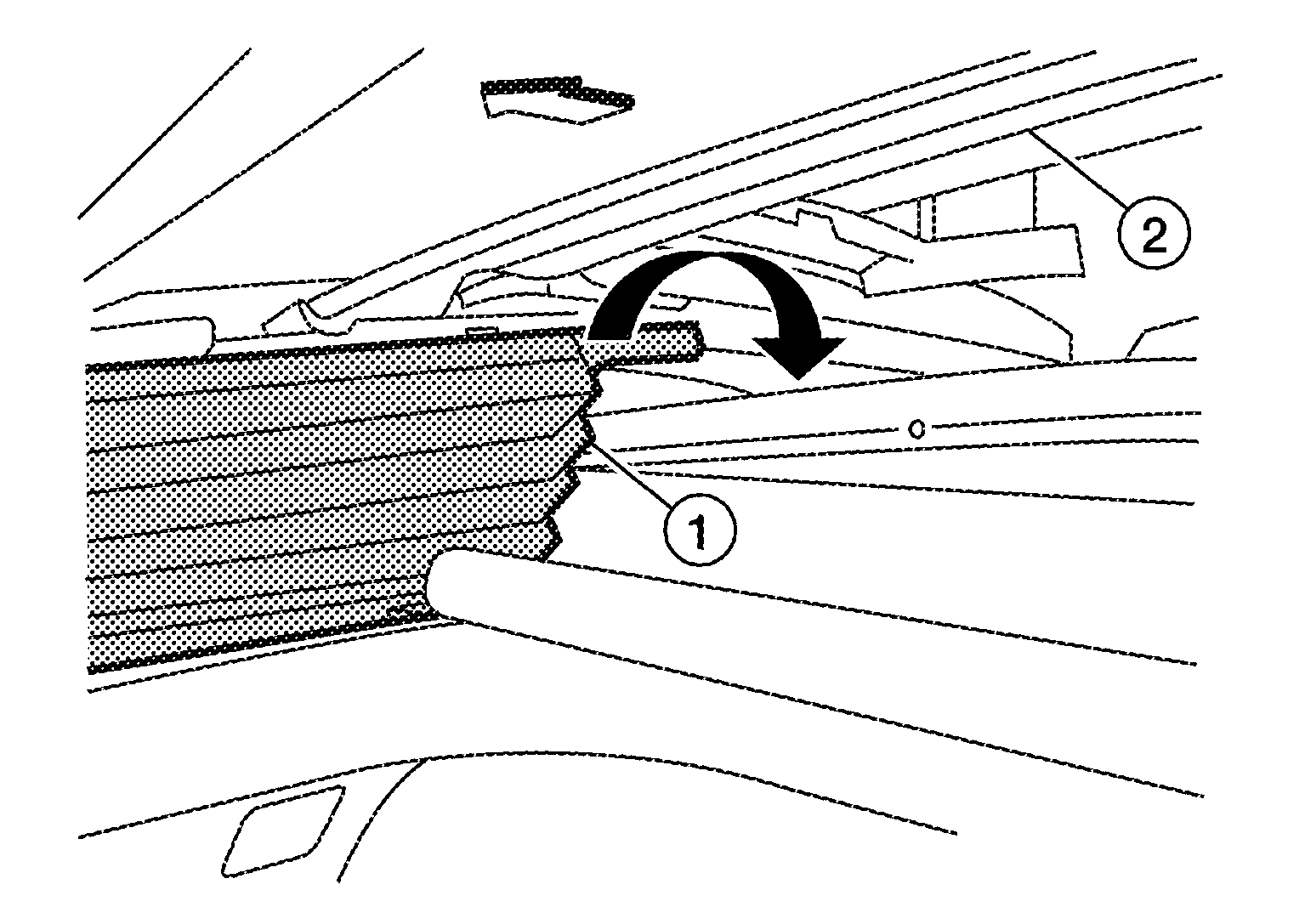

Release the slide clip, then remove inner blind (LH/RH) (1) from the glass lid (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

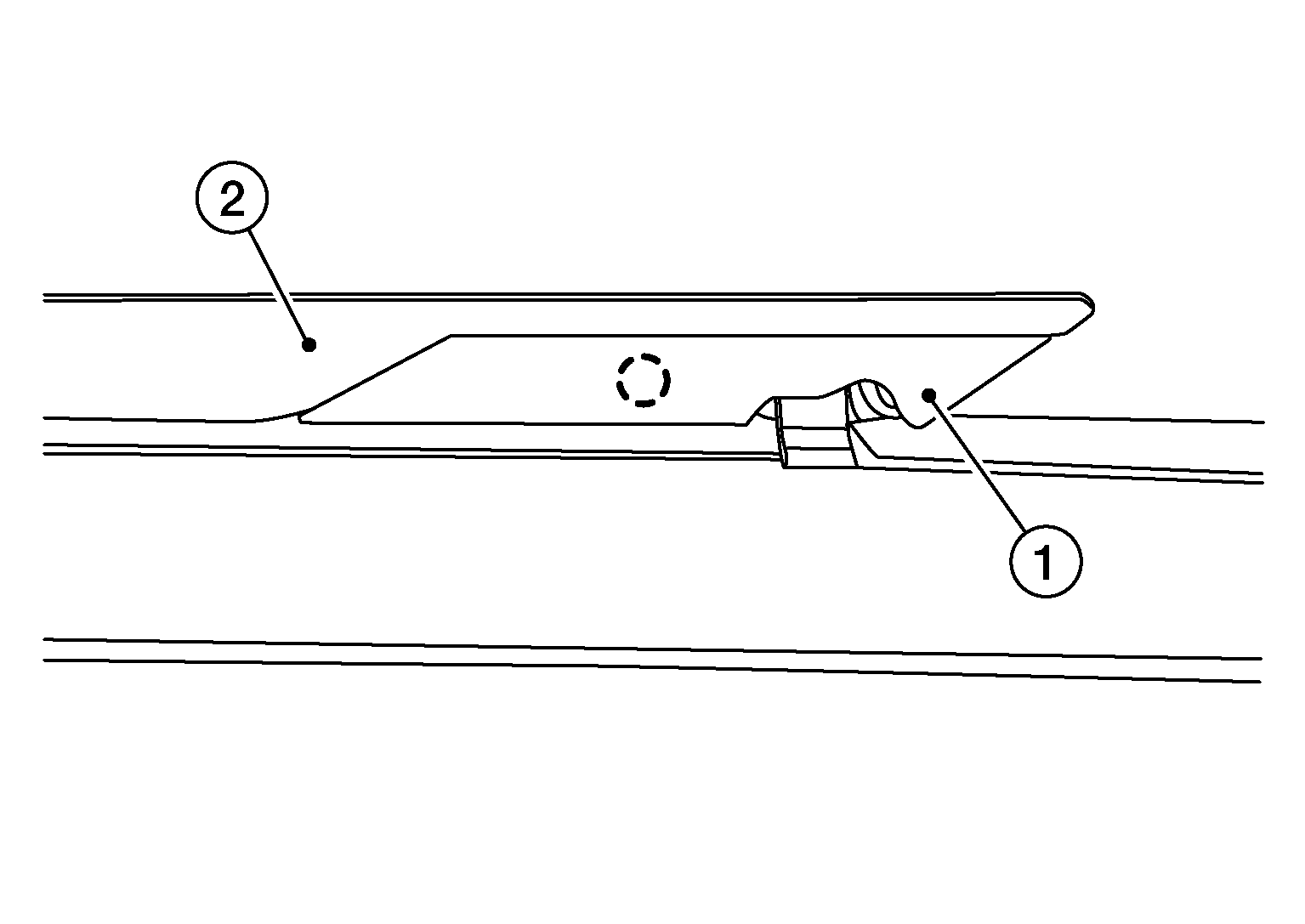

Release pawl and remove bolt cover (LH/RH) (1) from glass lid (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

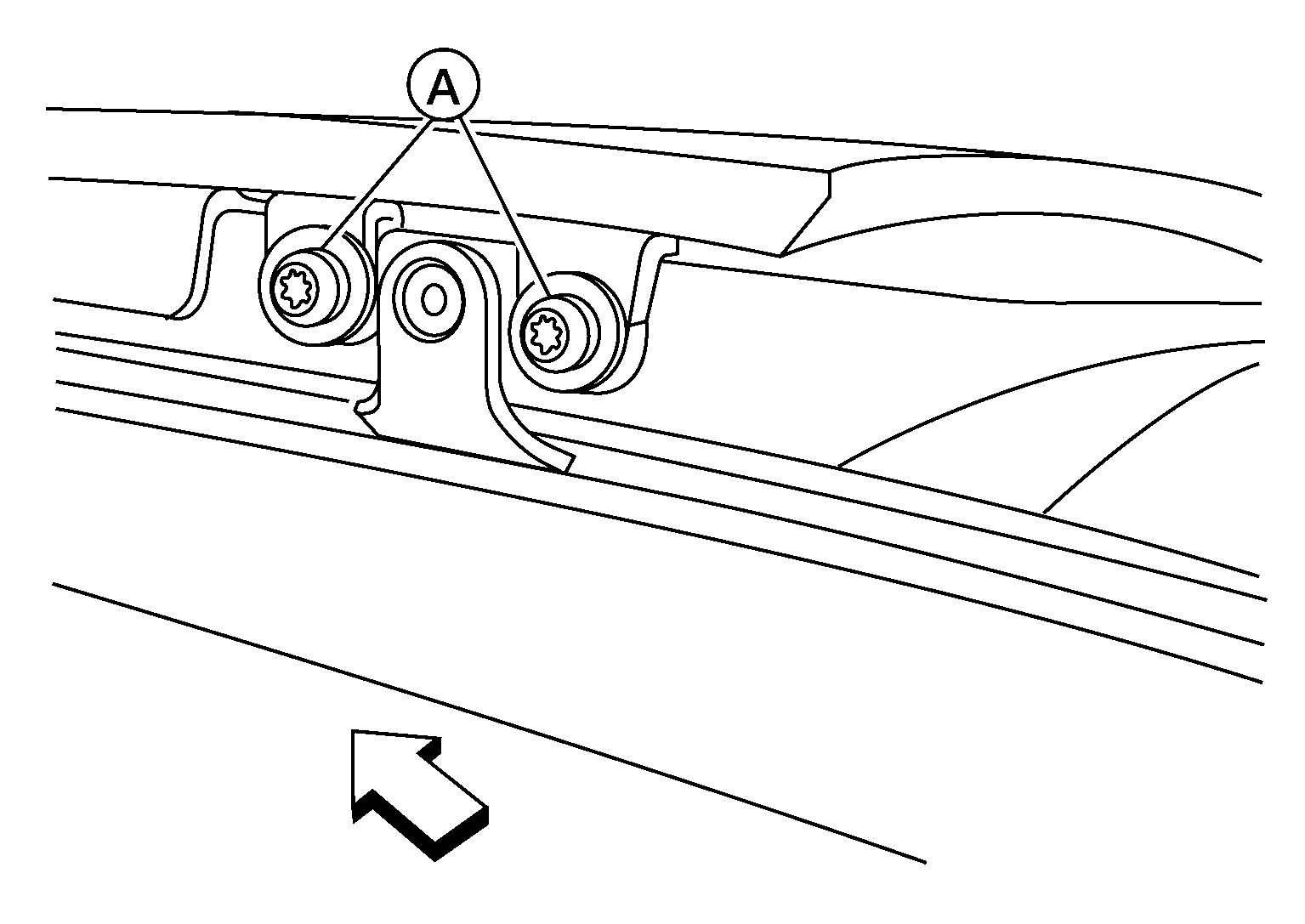

Remove the glass lid rear bolts (LH/RH) (A).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

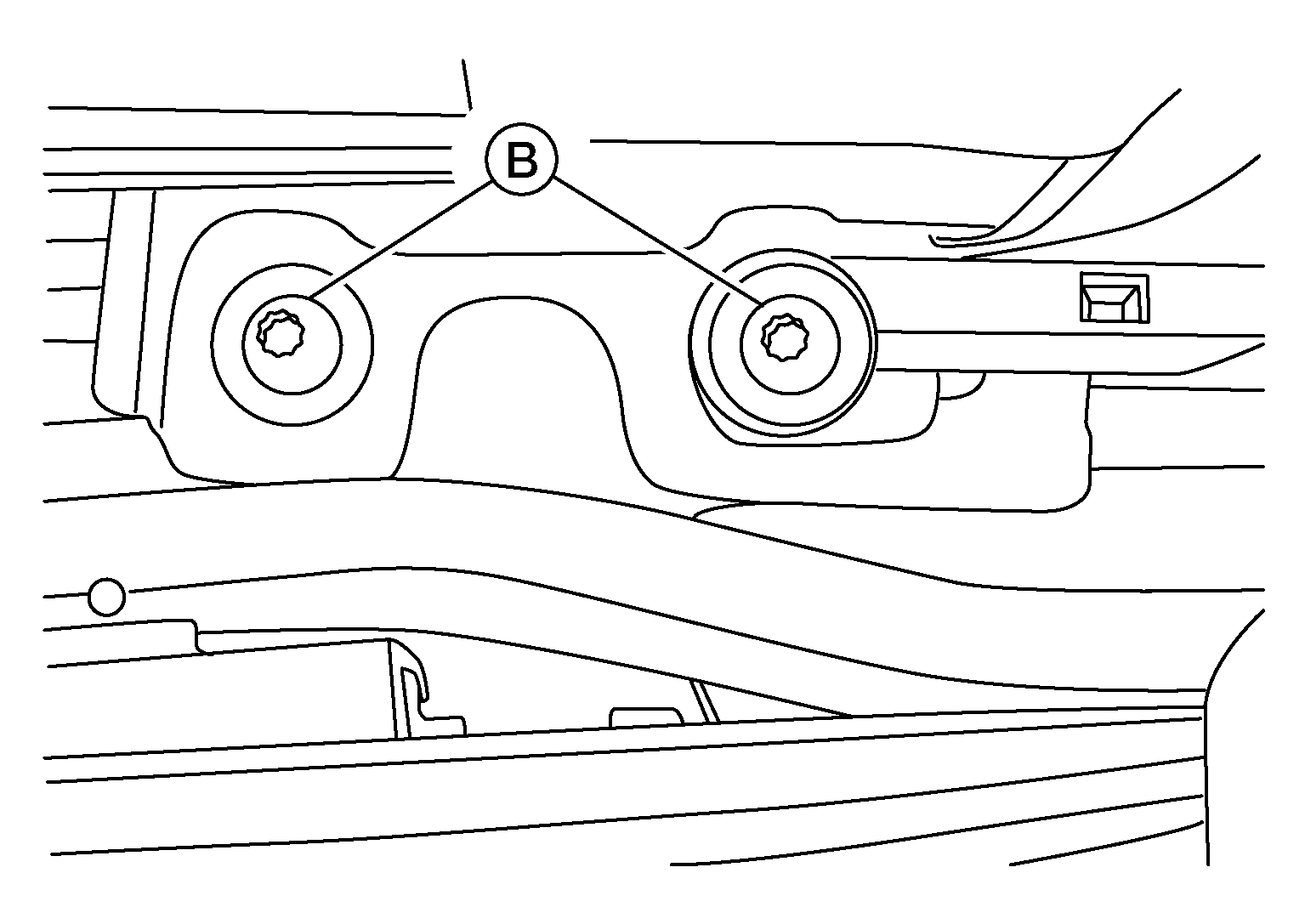

Remove the glass lid front bolts (LH/RH) (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the glass lid from the vehicle.
