Physical Values

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/Output

1

(B)

Ground

Ground

-

-

0

2

(W)

Ground

Double detent switch signal

Input

Moonroof switch in following position:

• OPEN
• CLOSE

0

3

(LG)

Ground

Ignition power supply

Input

Supplies power to moonroof motor assembly when ignition is in ON position.

Battery voltage

4

(R)

Ground

Moonroof push switch signal

Input

-

Battery voltage

5

(GR)

Ground

Open switch signal

Input

Moonroof switch in following position:

• OPEN

0

6

(V)

Ground

Battery power supply

Input

-

Battery voltage

7

(B)

Ground

Motor communication

Input/Output

Provides communication link between sunshade motor assembly and moonroof motor assembly

0

8

(G)

Ground

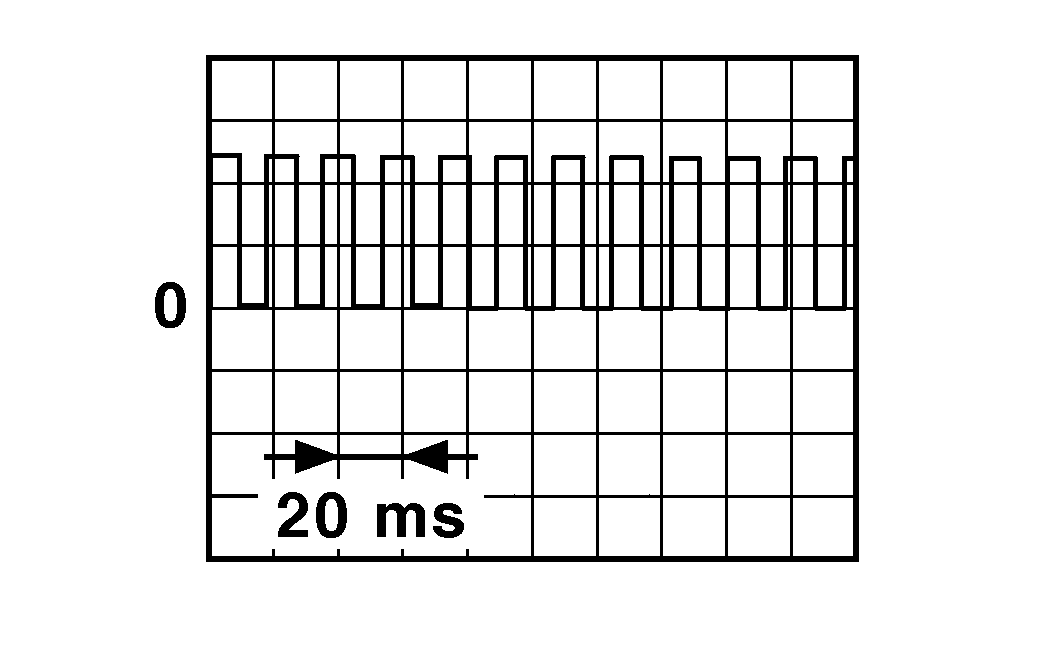

Vehicle speed signal (2-pulse)

Input

Speedometer operated [When vehicle speed is approx.40km/ h (25MPH)]

10

(BG)

Ground

Close switch signal

Input

Moonroof switch in following position:

• CLOSE

0
