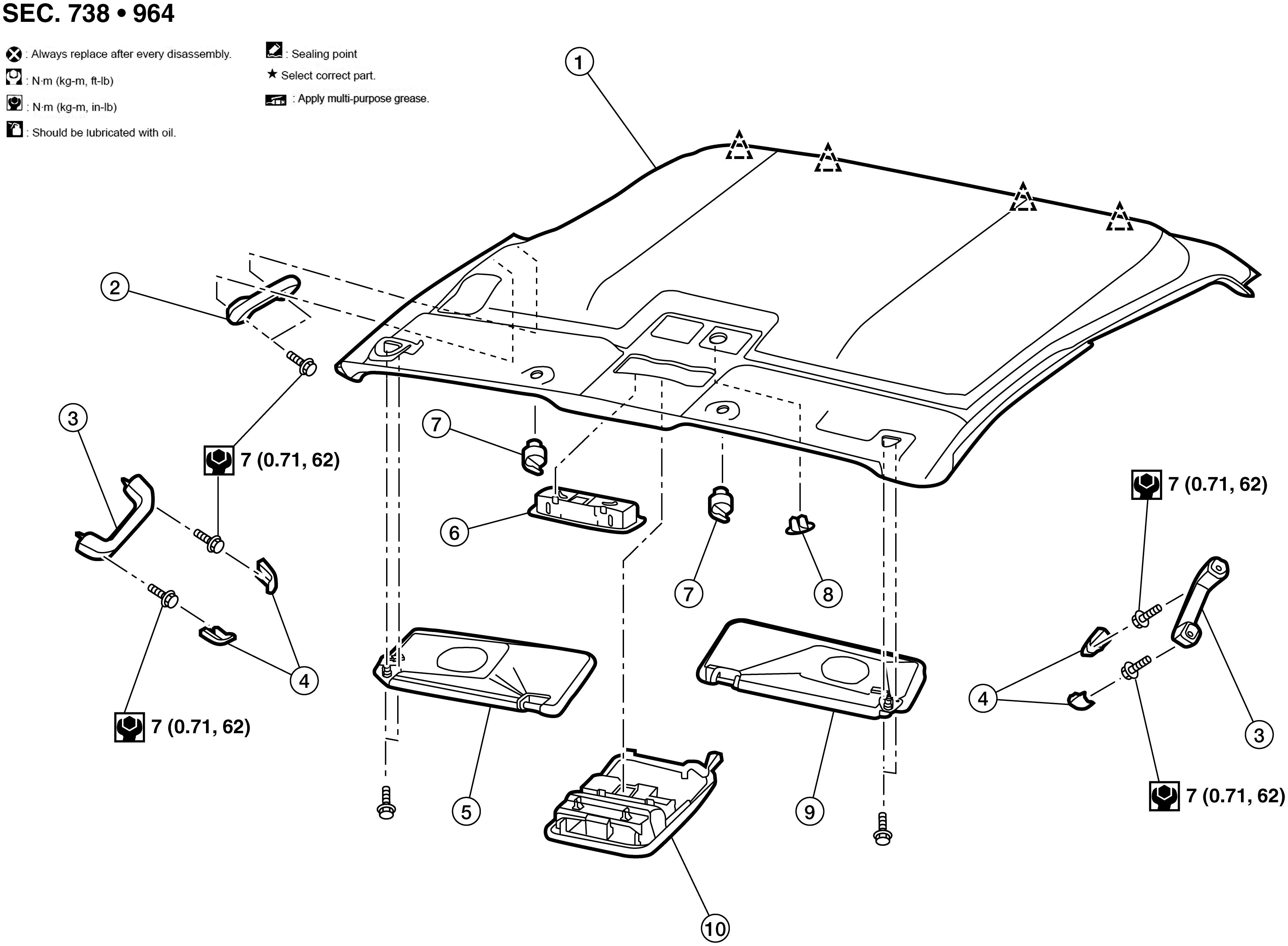

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Headlining
|
2.
|
Front assist grip
|
3.
|
Front pillar assist grip
|
|
4.
|
Front pillar assist grip bolt covers
|
5.
|
Sun visor (RH)
|
6.
|
Front room/map lamp assembly (if equipped)
|
|
7.
|
Sun visor assembly holder
|
8.
|
Microphone cover (if equipped)
|
9.
|
Sun visor (LH)
|
|
10.
|
Front roof console (if equipped)
|
|
Clip
|
