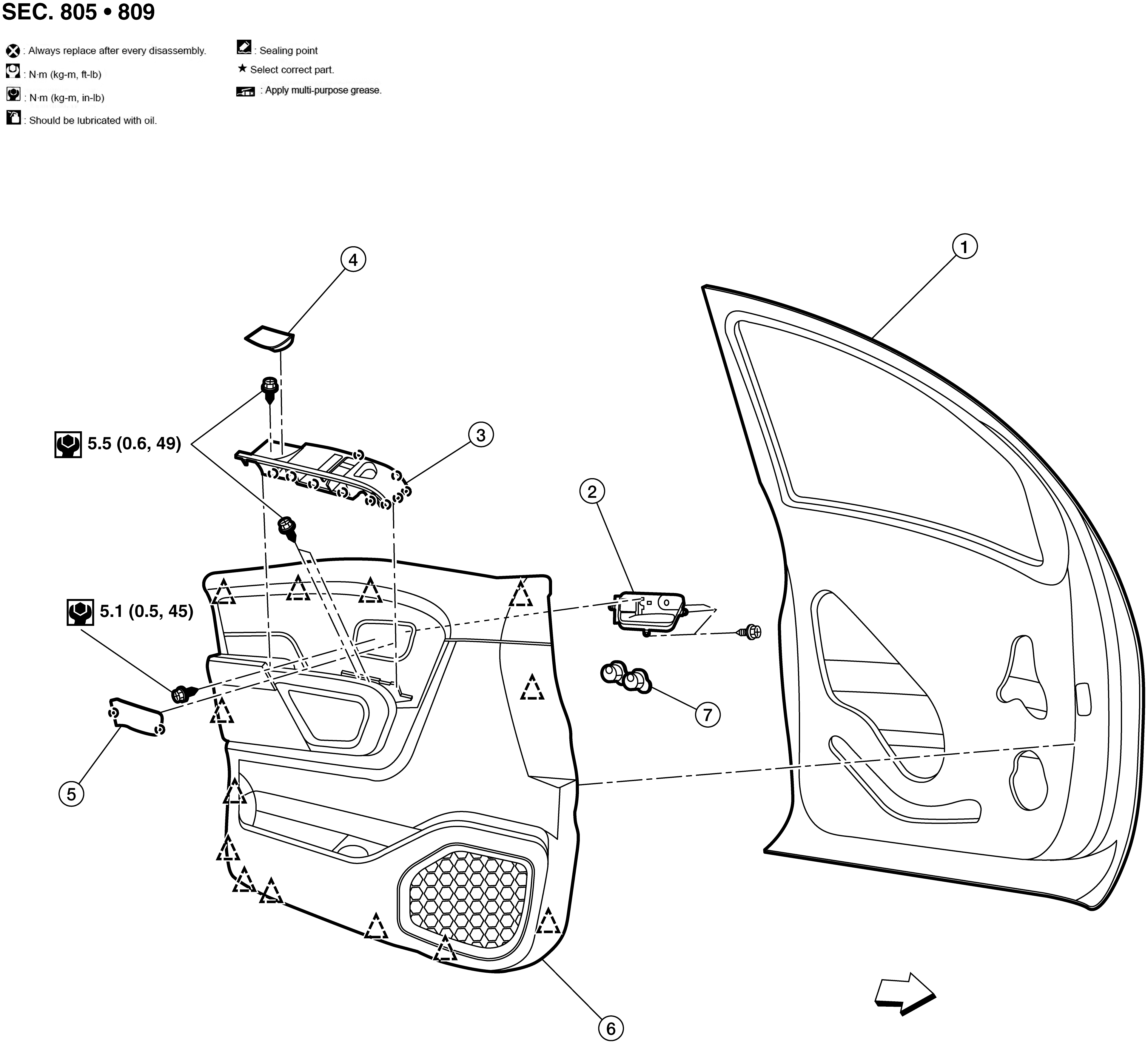

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
LH shown, RH similar.
|
1.
|
Front door
|
2.
|
Front door inside handle
|
3.
|
Main power window and door lock/unlock switch and main power window and door lock/unlock switch finisher
|
|
4.
|
Switch finisher screw cover
|
5.
|
Inside door handle escutcheon
|
6.
|
Front door finisher
|
|
7.
|
Grommet
|
|
Pawl
|
|
Clip
|
|
|
Front
|
