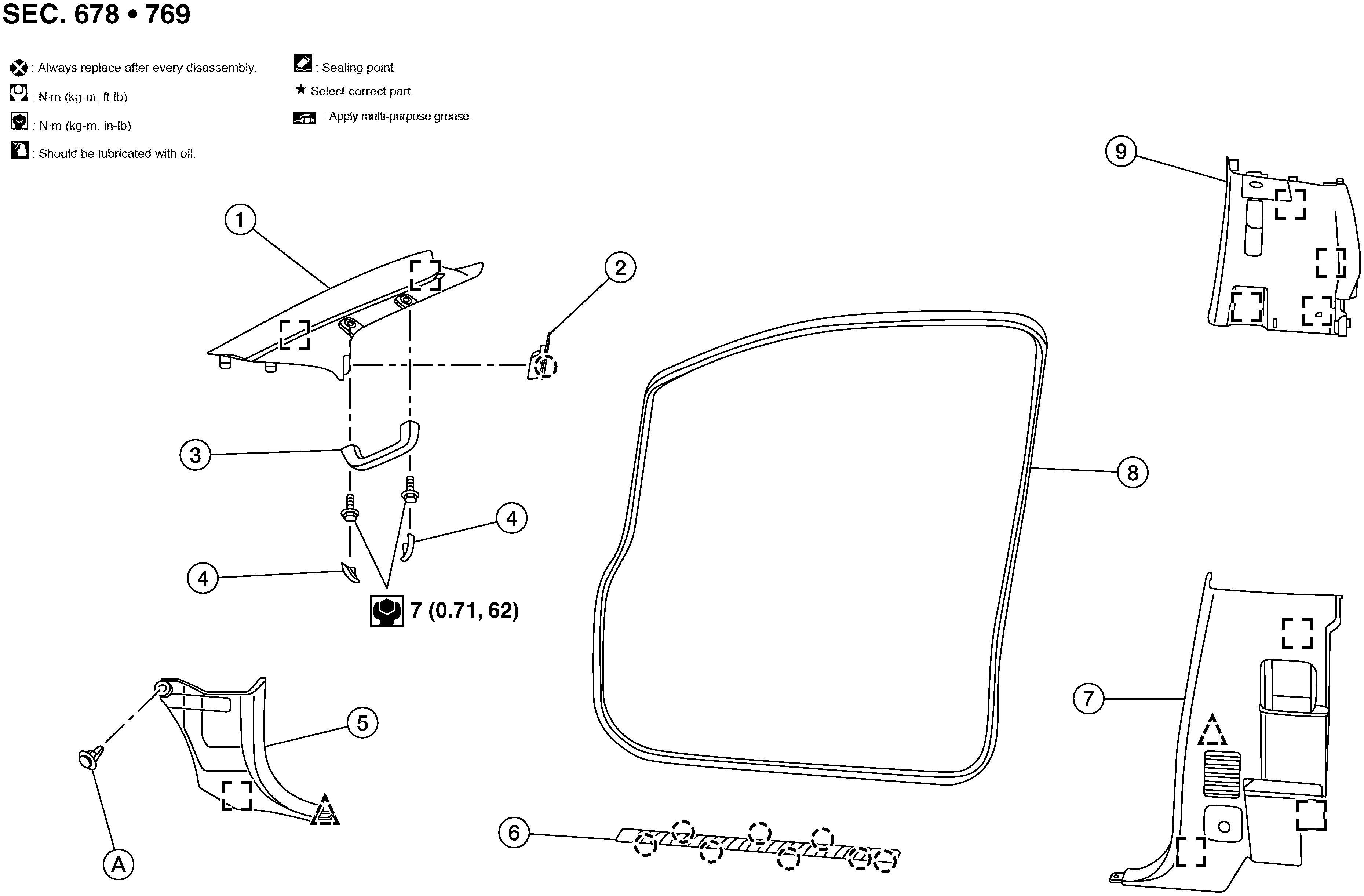

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front pillar finisher (RH)
|
2.
|
Side defroster grille (RH)
|
3.
|
Front pillar assist grip
|
|
4.
|
Front pillar assist grip bolt cover
|
5.
|
Dash side finisher (RH)
|
6.
|
Kicking plate (RH)
|
|
7.
|
Rear pillar lower finisher (RH)
|
8.
|
Body side welt (RH)
|
9.
|
Rear pillar upper finisher (RH)
|
|
A.
|
Clip
|
|
Pawl
|
|
Clip
|
|
|
Metal clip
|
