Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front grille. Refer to Removal and Installation .

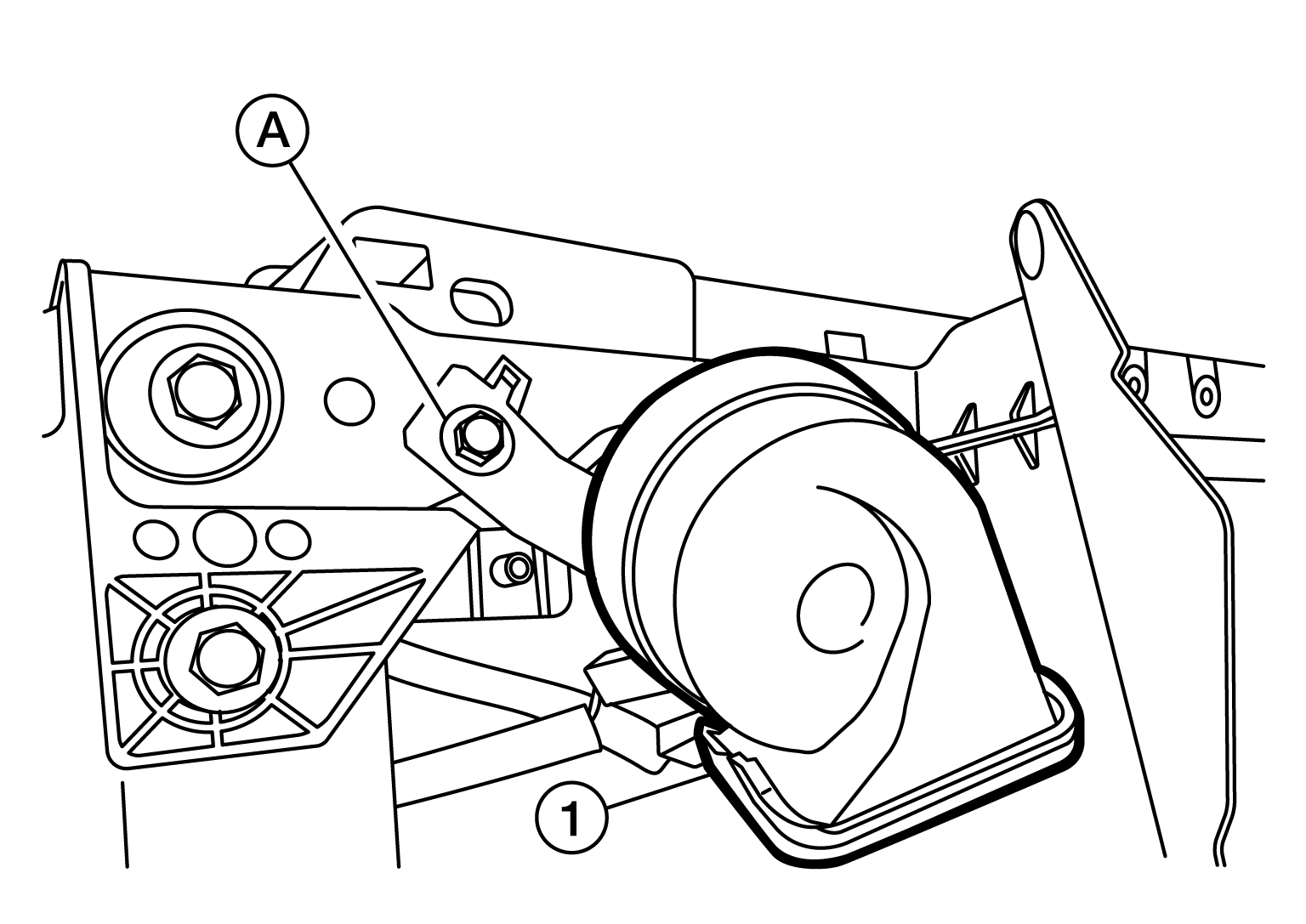

Remove the low-pitch horn (1).

Courtesy of NISSAN NORTH AMERICA, INC.
- Disconnect the horn electrical connectors.
- Remove the horn bolt (A).
NOTE: XD Models shown, Non-XD Models similar.

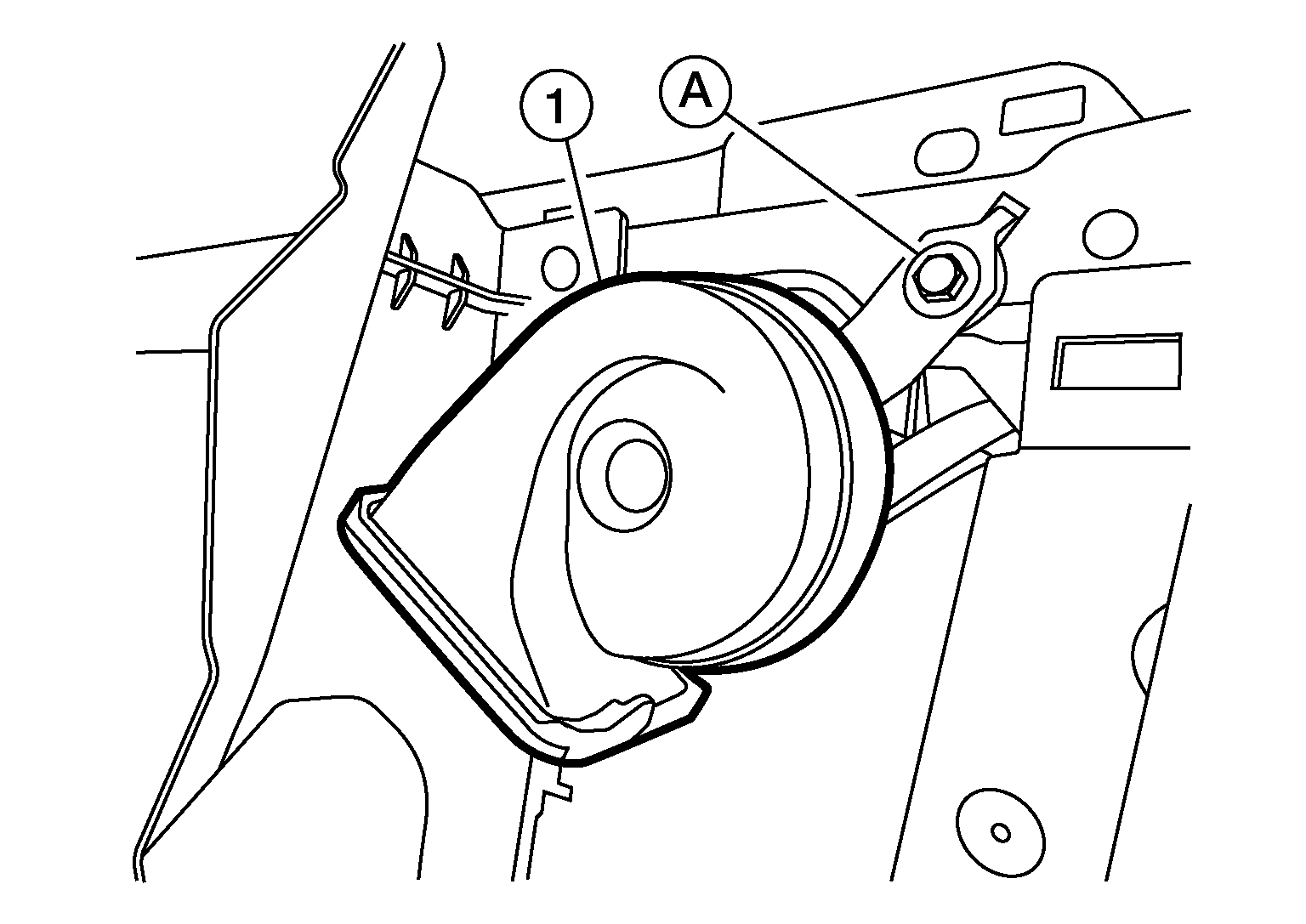

Remove the high-pitch horn (1).

Courtesy of NISSAN NORTH AMERICA, INC.
- Disconnect the horn electrical connectors.
- Remove the horn bolt (A).
NOTE: XD Models shown, Non-XD Models similar.
