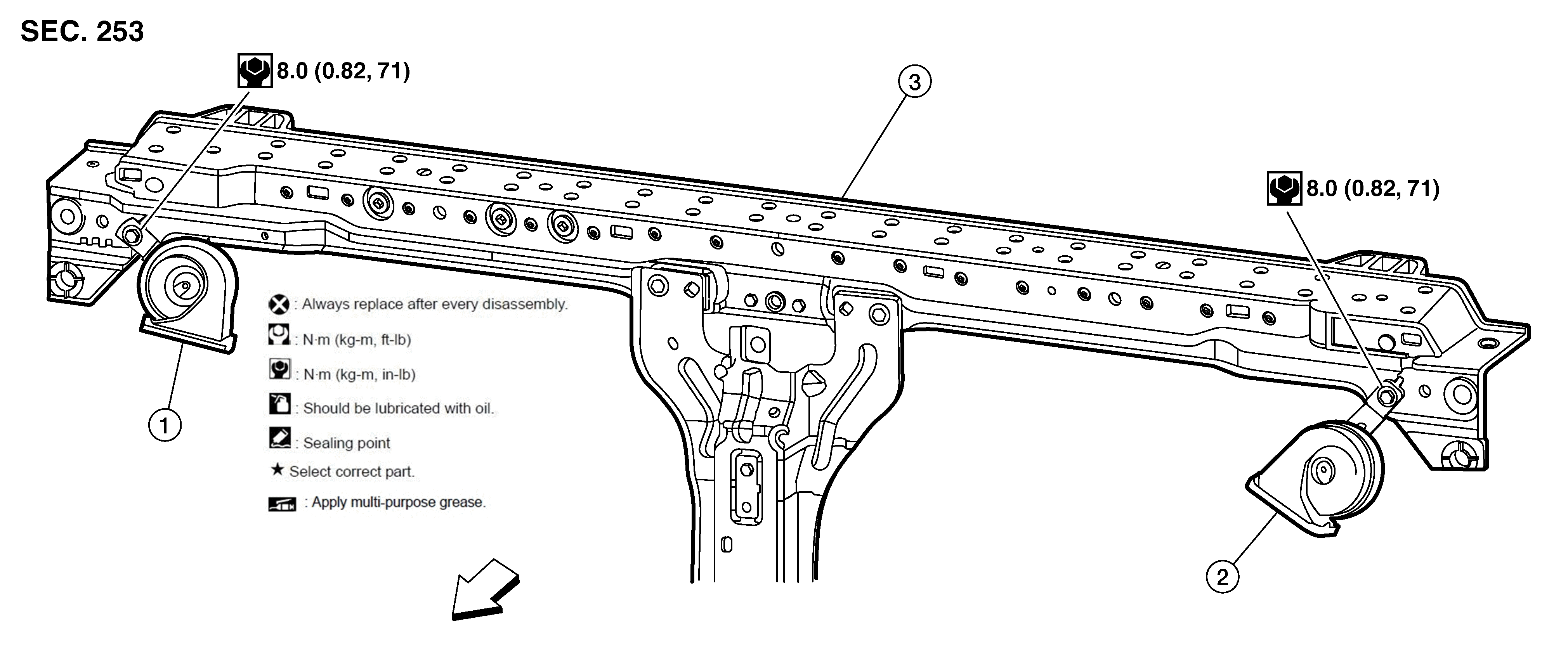

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Horn (LOW)	2.	Horn (HIGH)	3.	Radiator core support
	Front

NOTE: XD Models shown, Non-XD Models similar.
