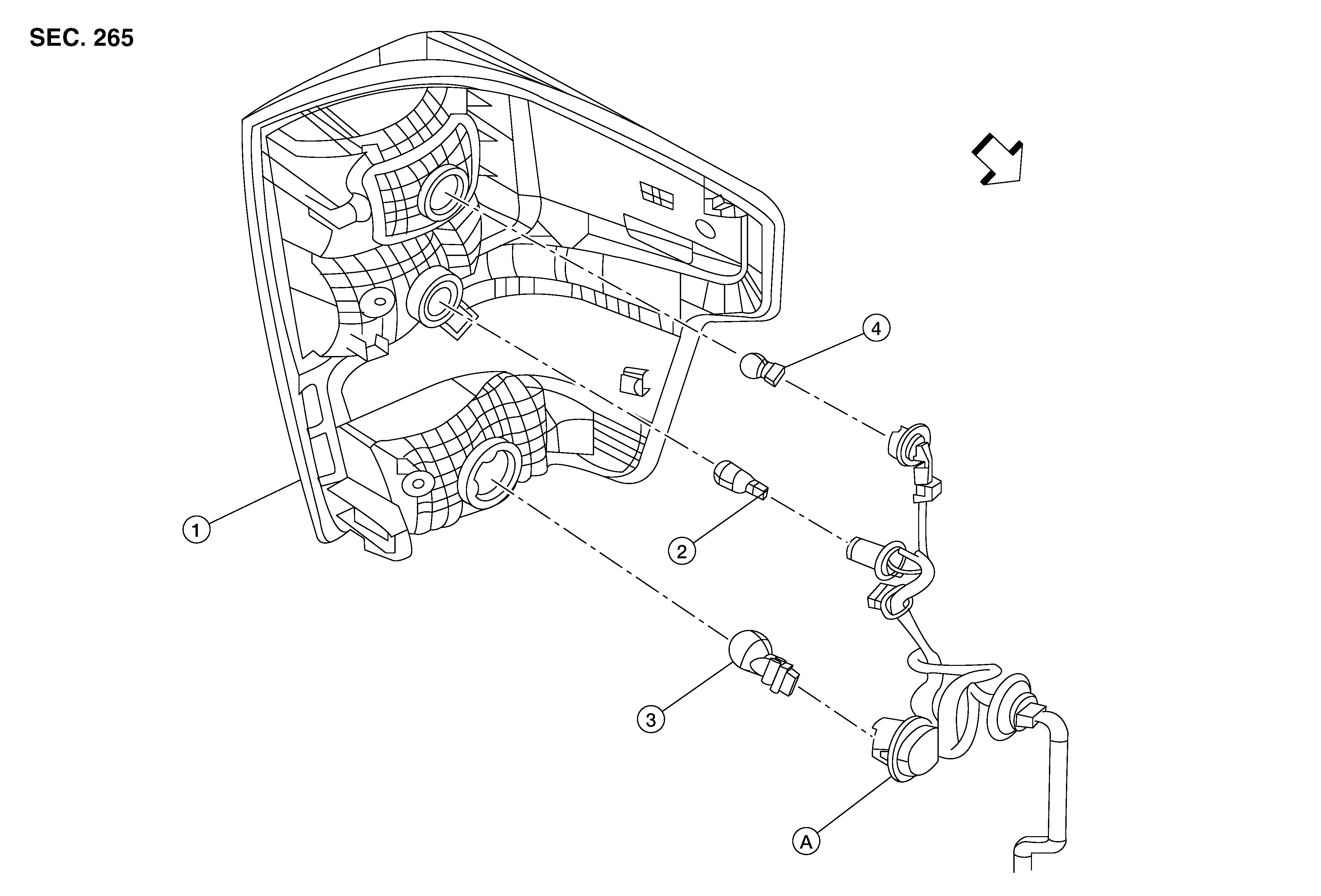

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear combination lamp |
2. |
Backup lamp bulb |
3. |
Turn signal/ tail lamp bulb |
|
4. |
Stop lamp bulb |
A. |
Harness connector |
|
Front |
NOTE:
LH shown, RH similar.
|
1. |
Rear combination lamp |
2. |
Tailgate cargo lamp (if equipped) |
3. |
Tailgate cargo lamp bulb (if equipped) |
|
4. |
Turn signal/ tail lamp bulb |
5. |
Backup lamp bulb |
6. |
Stop lamp bulb |
|
A. |
Screw |
B. |
Harness connector |
|
Front |
NOTE:
LH shown, RH similar.
