Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the rear combination lamp.

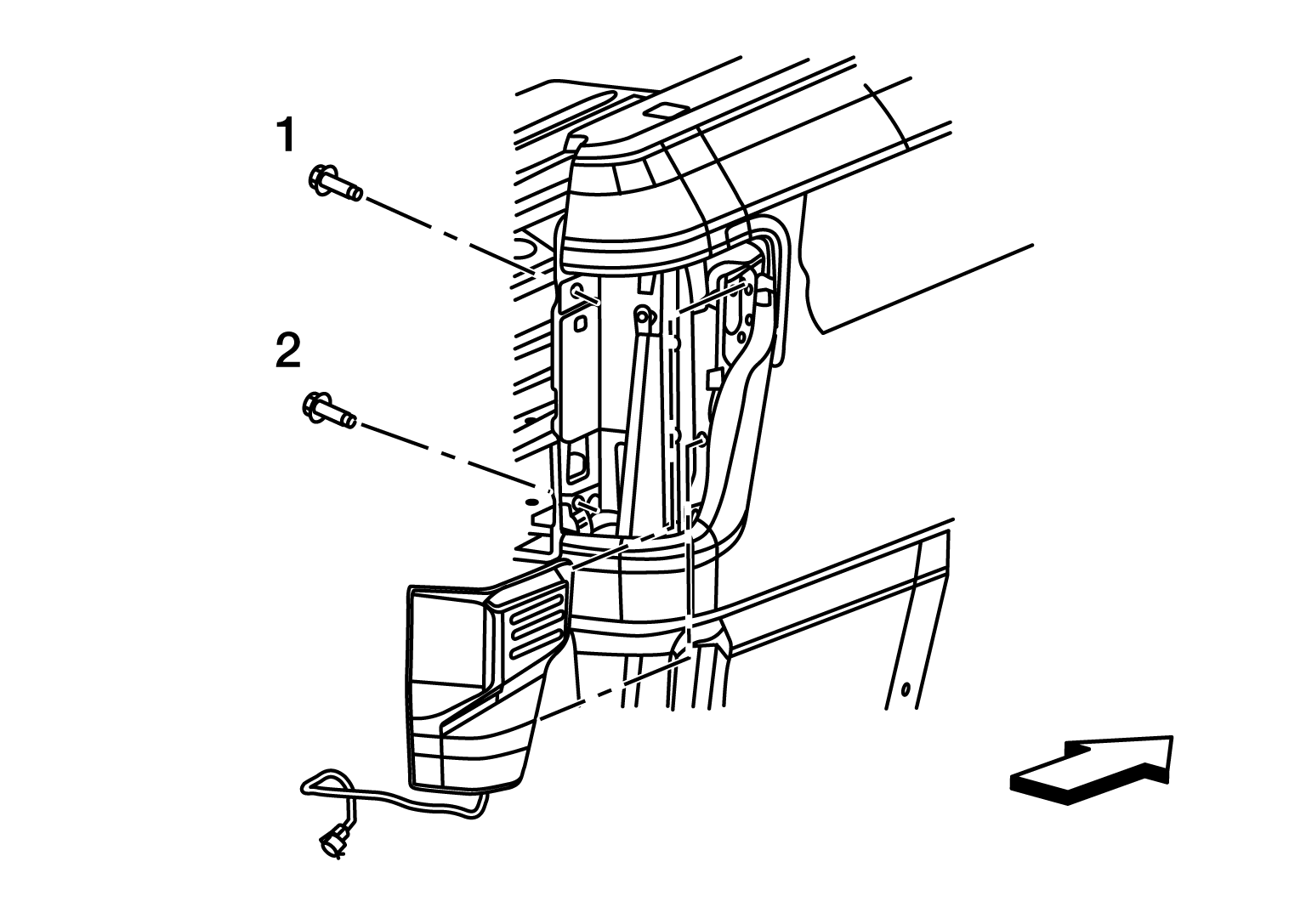

  2. Install bolts in the following torque sequence: (1), (2).
    GNSAWLIA2907Z-907Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
