Aiming Adjustment Screw

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

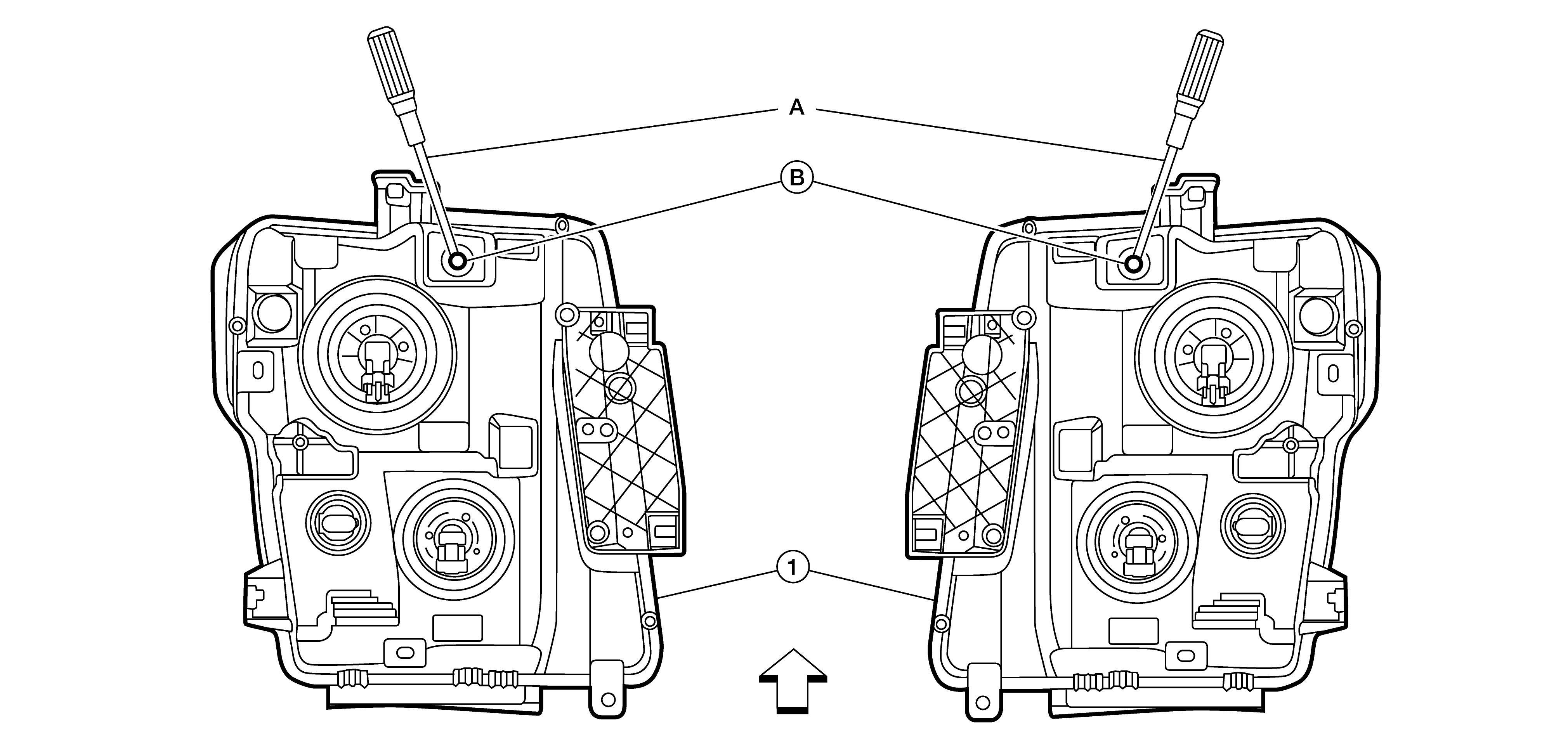

GNSALLIA1948Z-948Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front combination lamp

A.

Suitable tool

B.

Adjusting screw

SYMBOL

Front
