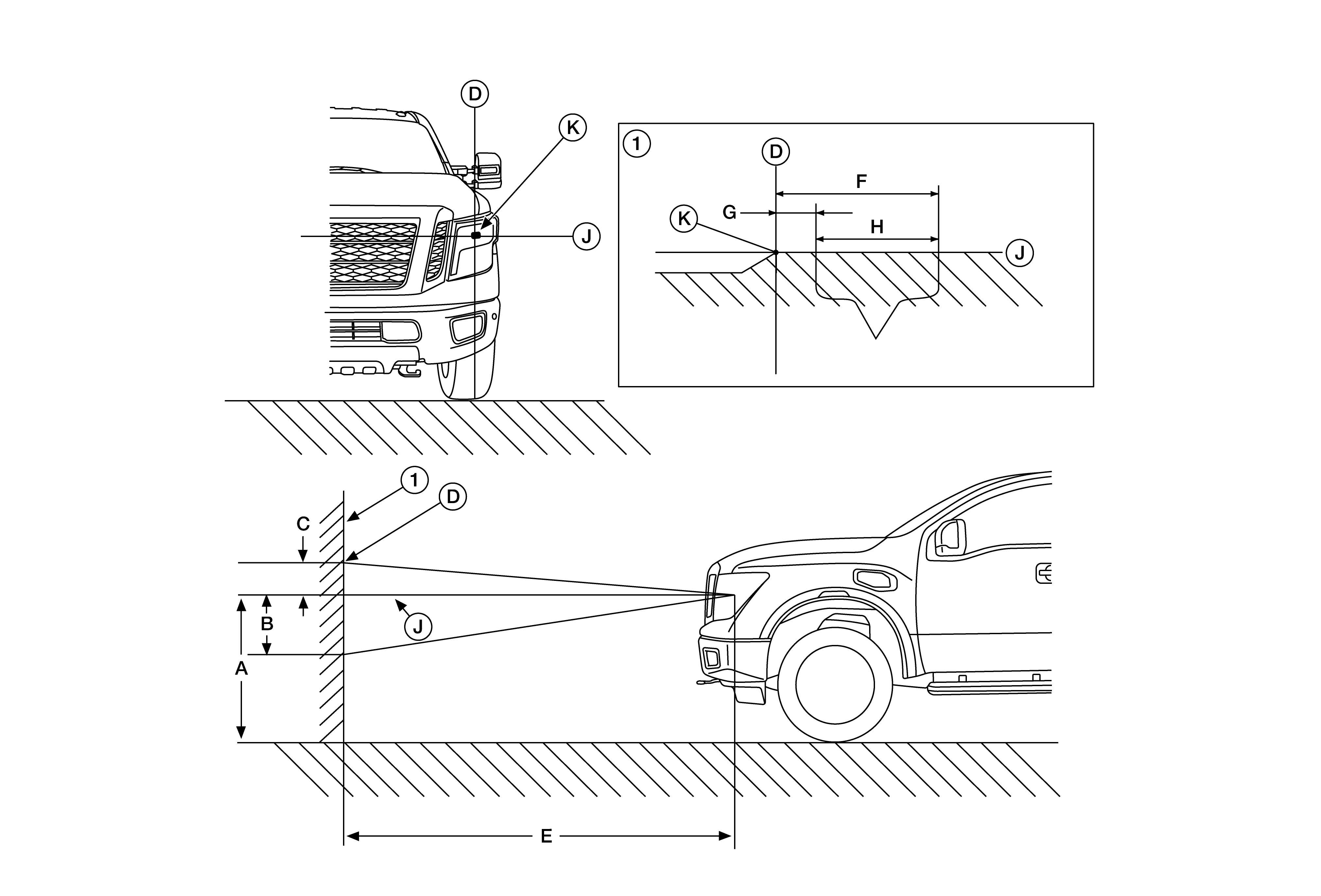

Aiming Chart
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Adjustment screen |
A. |
Distance of horizontal aiming evaluation line from ground |
B. |
Minimum cutoff line height |
|
C. |
Maximum cutoff line height |
D. |
Vertical aiming evaluation line |
E. |
7.6 m (25 ft) |
|
F. |
Maximum aim evaluation distance from vertical center on aiming screen 399 mm (15.7 in) [3°R] |
G. |
Minimum aim evaluation distance from vertical center on aiming screen 133 mm (5.2 in) [1°R] |
H. |
Aim evaluation segment |
|
J. |
Horizontal aiming evaluation line |
K. |
Center of headlamp bulb |
