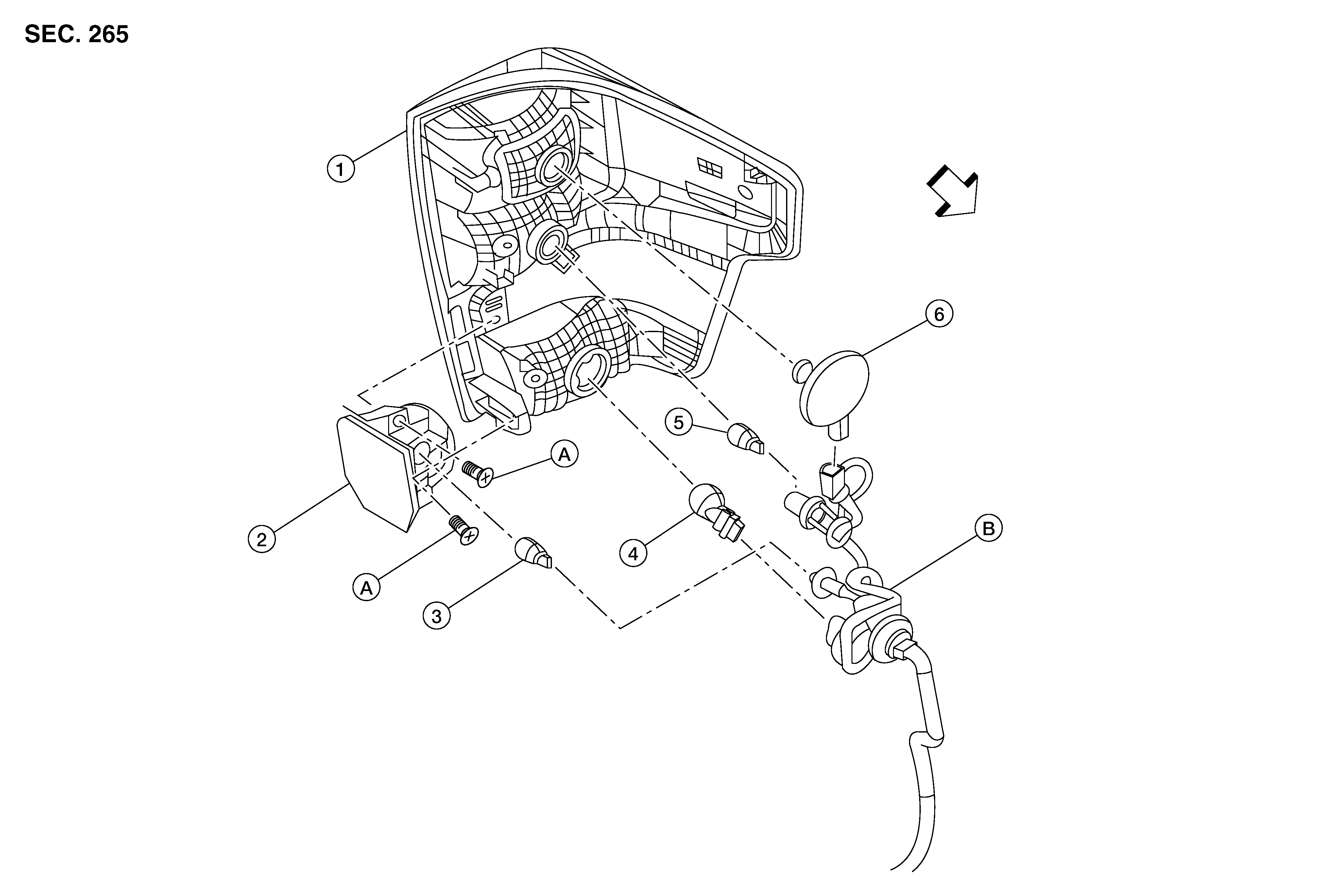

Exploded View: Disassembly
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear combination lamp
|
2.
|
Tailgate cargo lamp (if equipped)
|
3.
|
Tailgate cargo lamp bulb (if equipped)
|
|
4.
|
Turn signal/ tail lamp bulb
|
5.
|
Backup lamp bulb
|
6.
|
Stop lamp bulb
|
|
A.
|
Screw
|
B.
|
Harness connector
|
|
Front
|
NOTE:
LH shown, RH similar.
