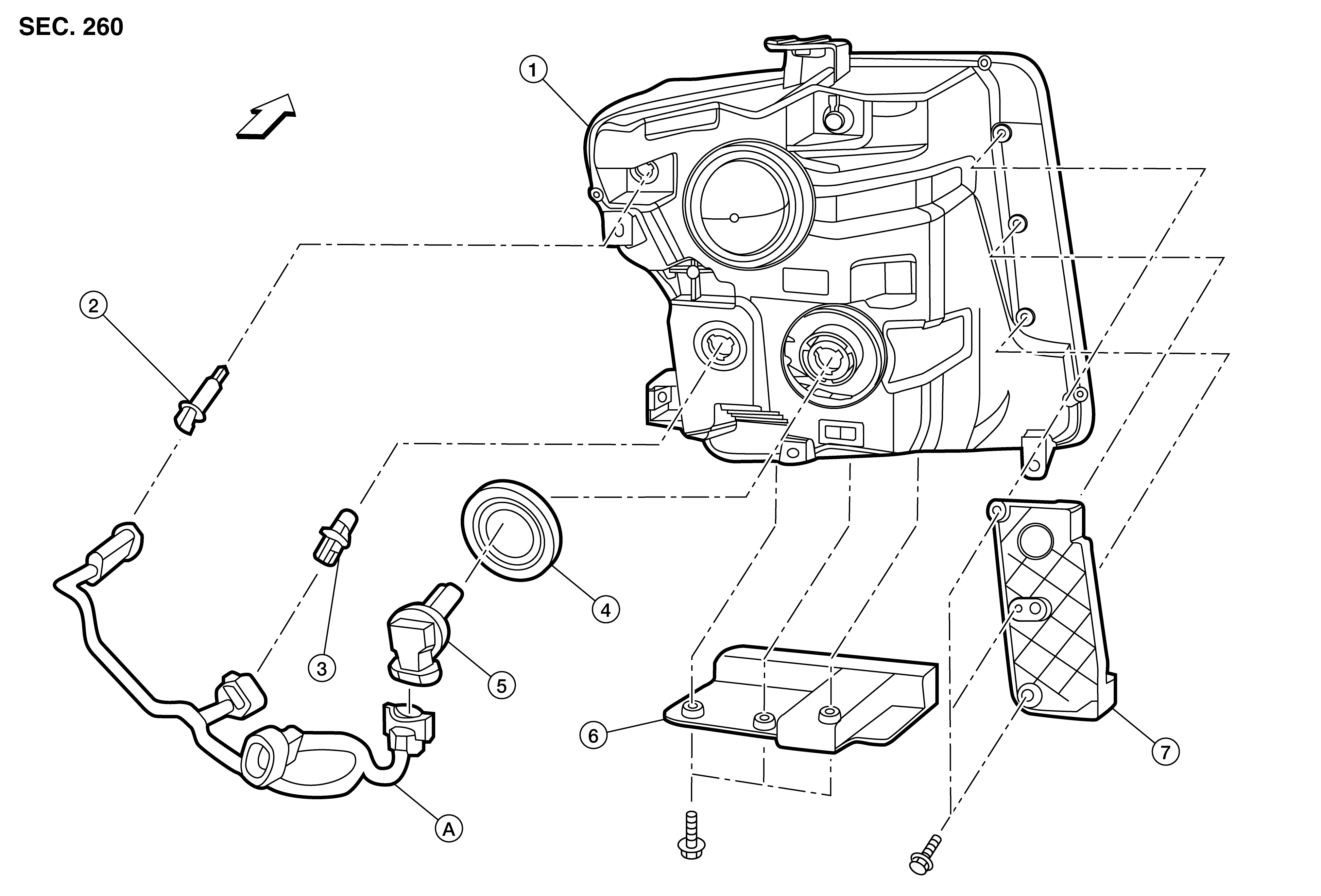

Exploded View: Disassembly
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front combination lamp
|
2.
|
Side marker bulb
|
3.
|
Turn signal lamp bulb
|
|
4.
|
Grommet
|
5.
|
High beam lamp bulb
|
6.
|
Grille bracket
|
|
7.
|
Fascia bracket
|
A.
|
Harness connector
|
|
Front
|
