Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

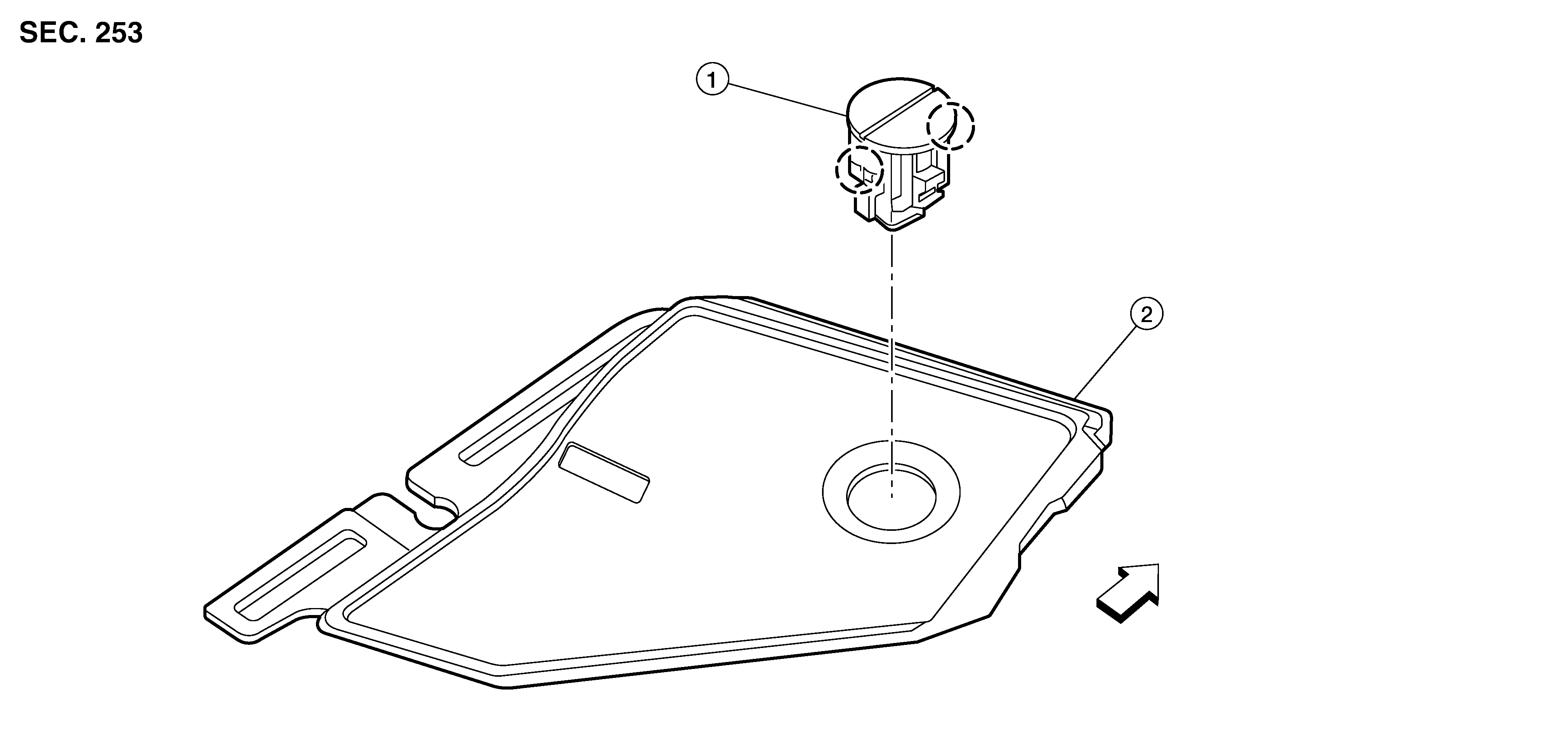

GNSALLIA1915Z-915Courtesy of NISSAN NORTH AMERICA, INC.

1.

Optical sensor

2.

Instrument panel tweeter grille

SYMBOL

Pawl

SYMBOL

Front
