Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cluster lid A, refer to Removal and Installation .
- Using a suitable tool, release clip.

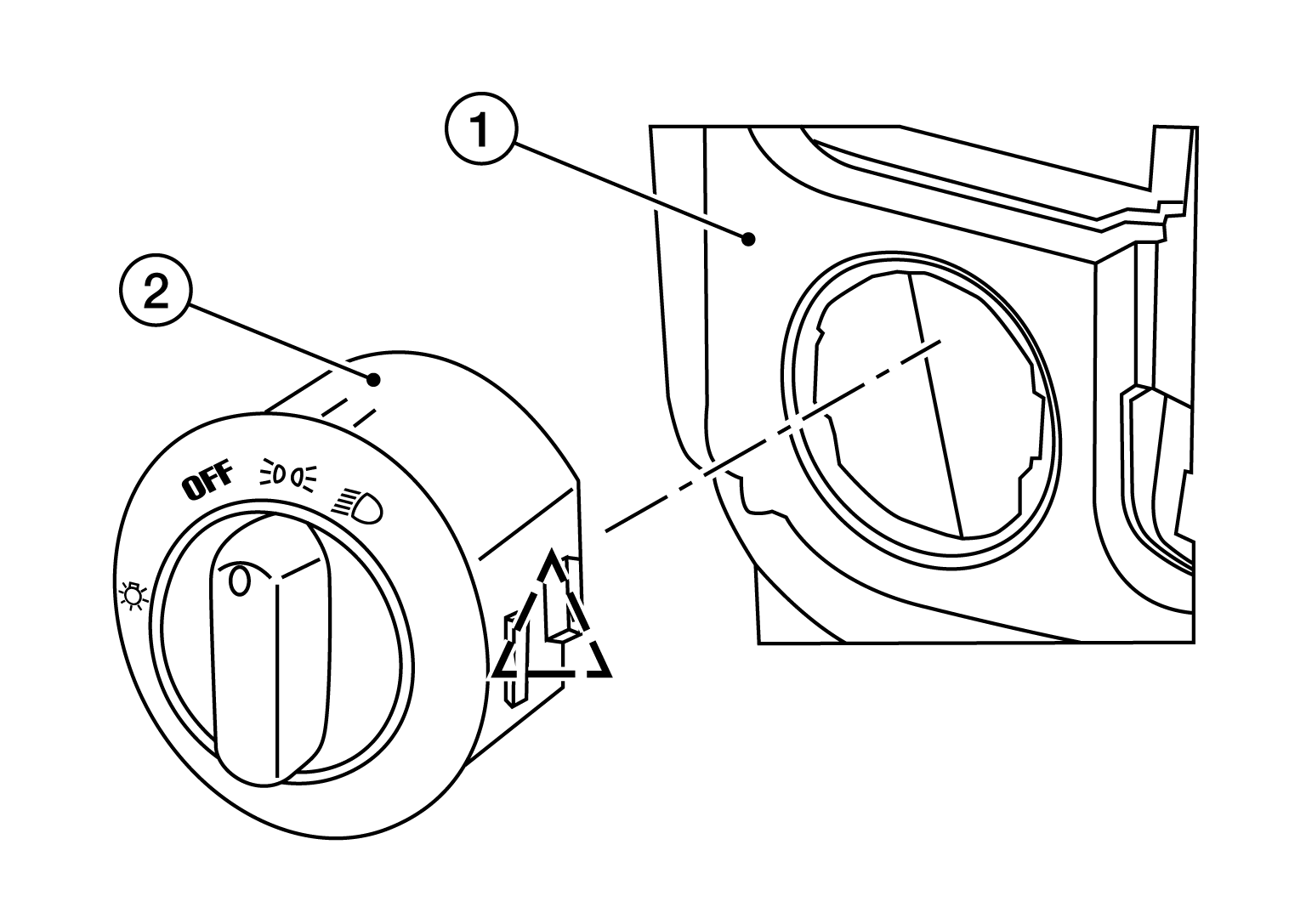

(1)
: Cluster lid A
: Clip
- Disconnect the harness connector from the lighting switch (2) and remove.
