Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove headlining. Refer to Removal and Installation (SINGLE CAB) or Removal and Installation (CREW CAB).

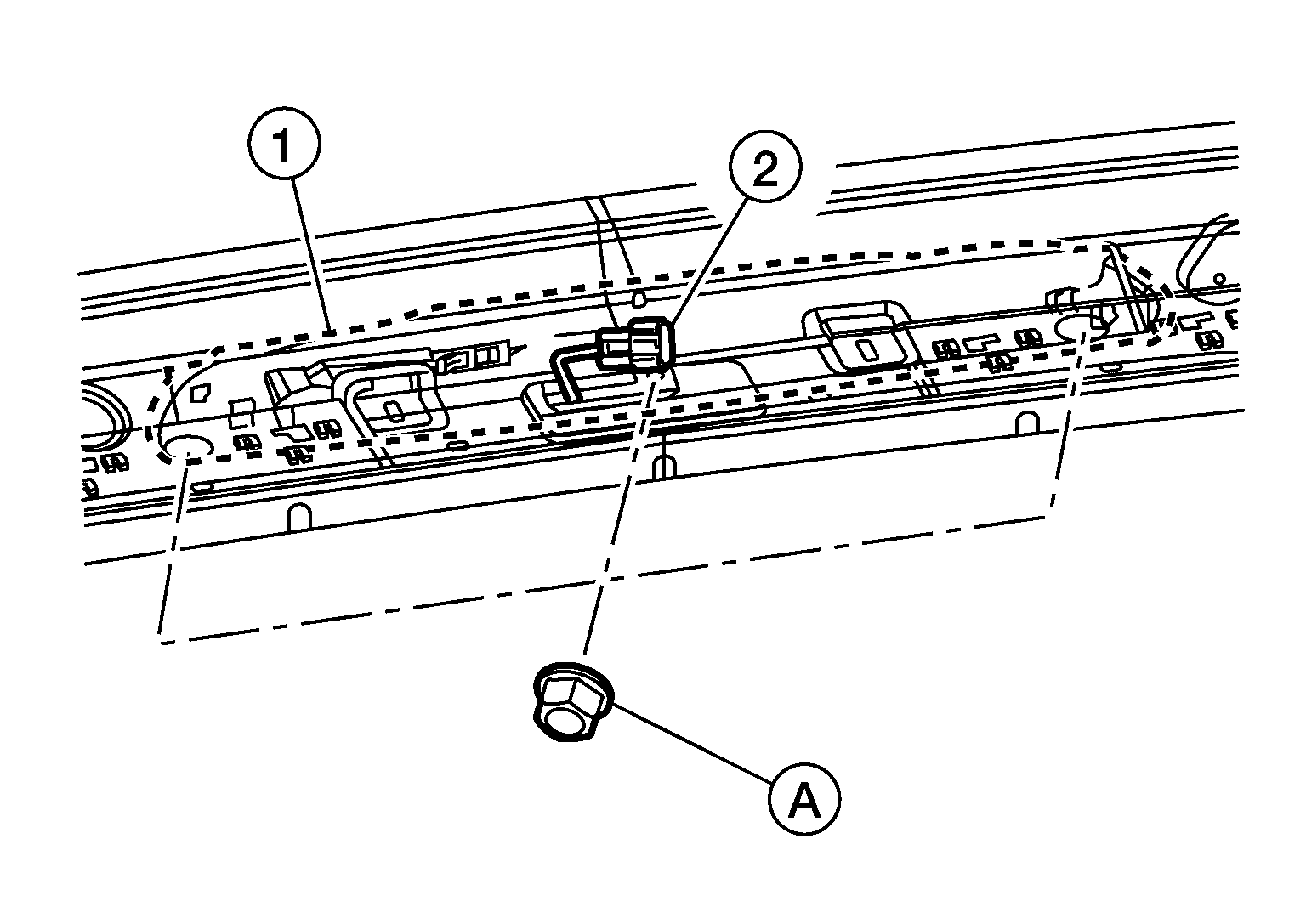

  2. Disconnect the harness connector (2) from the high-mounted stop lamp (1).
    GNSALLIA1919Z-919Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove high-mounted stop lamp nuts (A).
  4. Pull the high-mounted stop lamp toward rear of the vehicle to remove.
