Aiming Adjustment Procedure
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Place the screen.NOTE:
- Stop the vehicle facing the wall.
- Place the board on a plain road vertically.
- Face the vehicle at the screen. Maintain 7.62 m (25.00 ft) between the front fog lamp center and the screen.
- Start the engine. Turn the front fog lamp ON.NOTE: Block the headlamp light with the board to prevent from illuminating the adjustment screen.CAUTION: Do not cover the lens surface with a tape etc. The lens is made of resin.

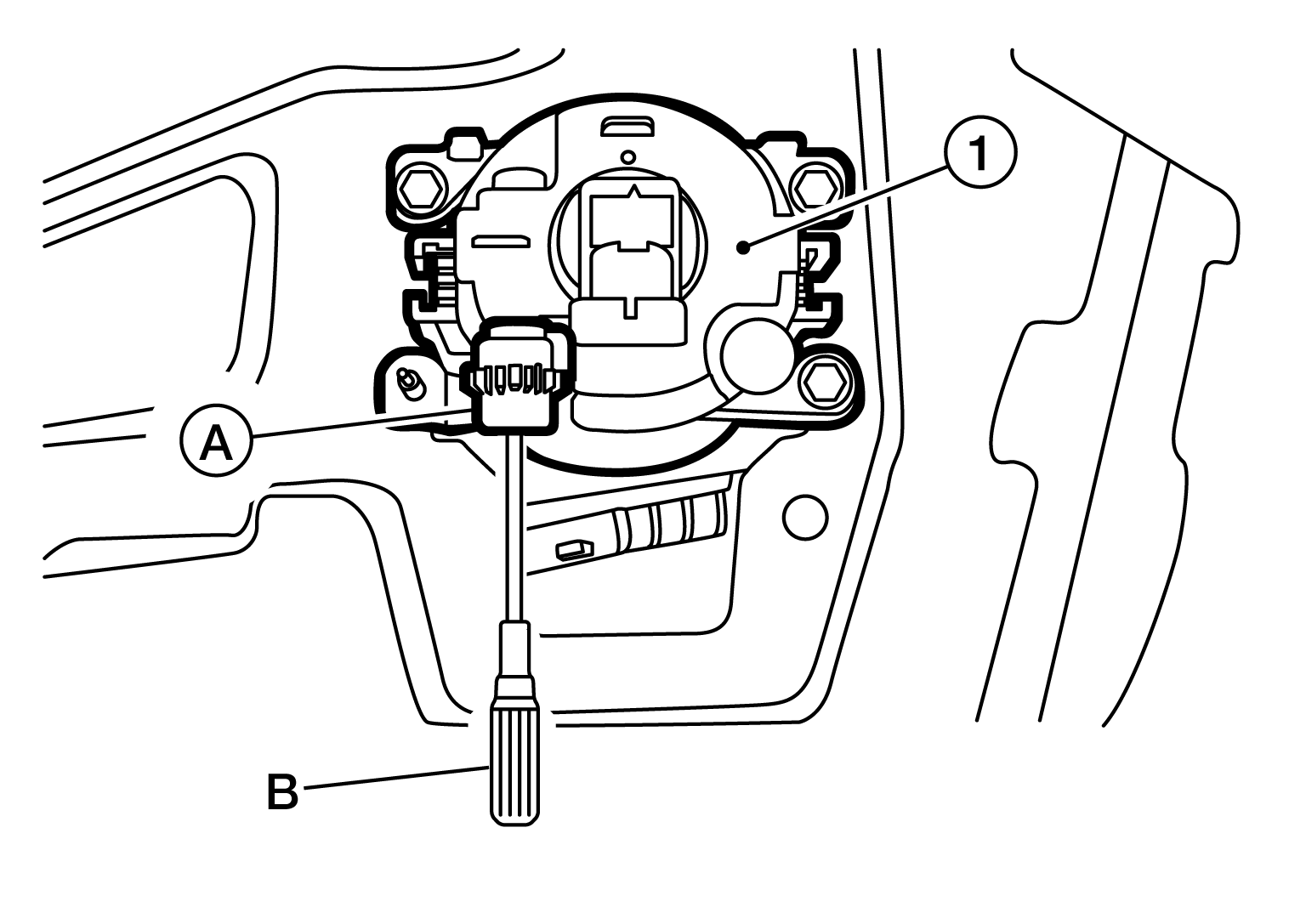

- Adjust aiming by turning the adjusting screw (A) with suitable tool (B).NOTE: LH shown, RH similar
1.
Front fog lamp assembly
- Adjust the cutoff line height (X) with the aiming adjustment screw so that the distance (X) between the horizontal center line of front fog lamp (H) and cutoff line (A) becomes 100 mm (4 in).
(A)
: Cutoff line
(B)
: High illuminance area
(H)
: Horizontal center line of front fog lamp
(V)
: Vertical center line of front fog lamp
(X)
: Cutoff line height
