Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

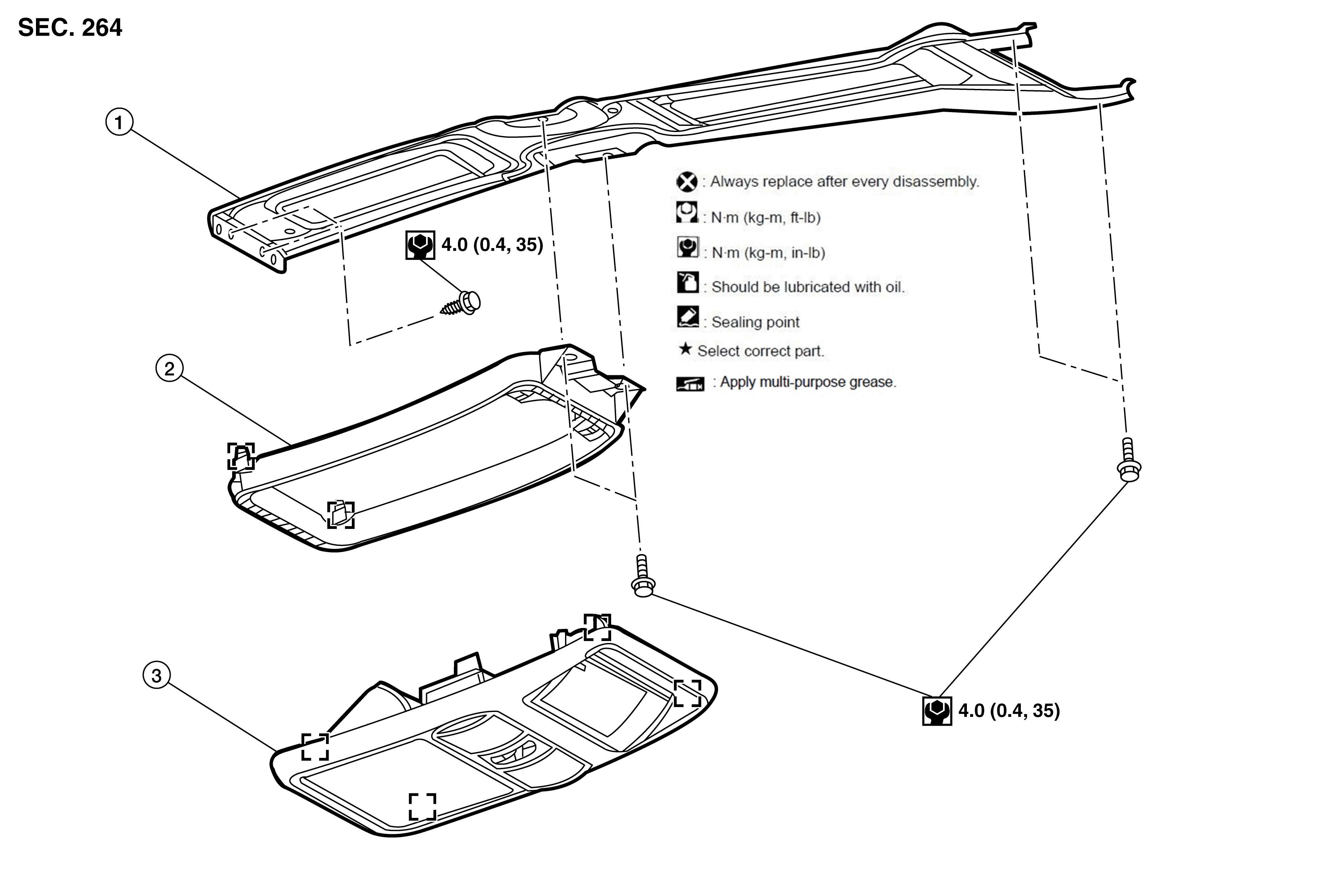

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Front room/map lamp assembly brace
|
2.
|
Front room/map lamp assembly bracket
|
3.
|
Front room/map lamp assembly
|
|
|
Metal clip
|

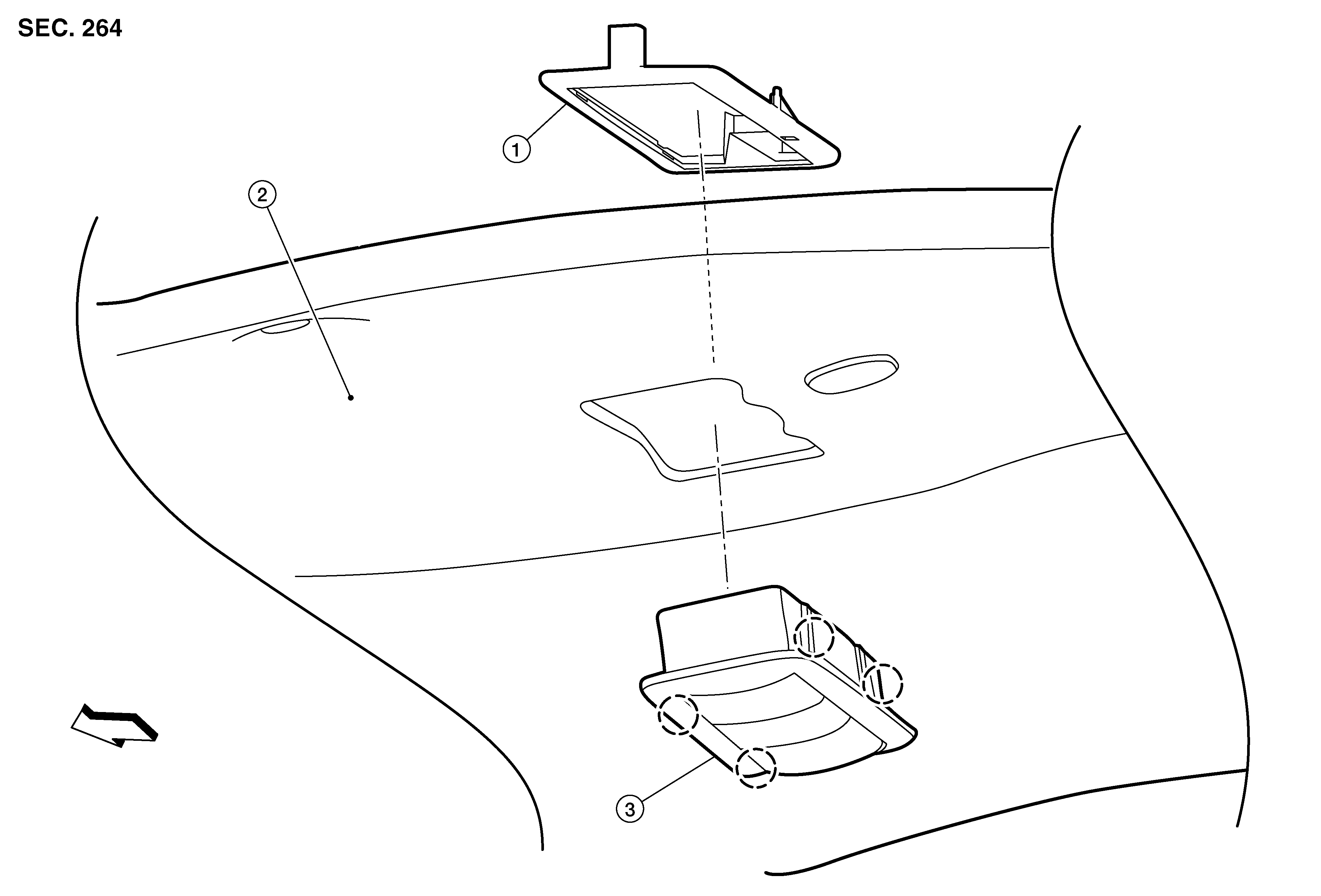

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Front room/map lamp assembly bracket
|
2.
|
Headliner
|
3.
|
Front room/map lamp assembly
|
|
|
Pawl
|
