Front Room/Map Lamp Bulb - Without Front Roof Console

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

WARNING: Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

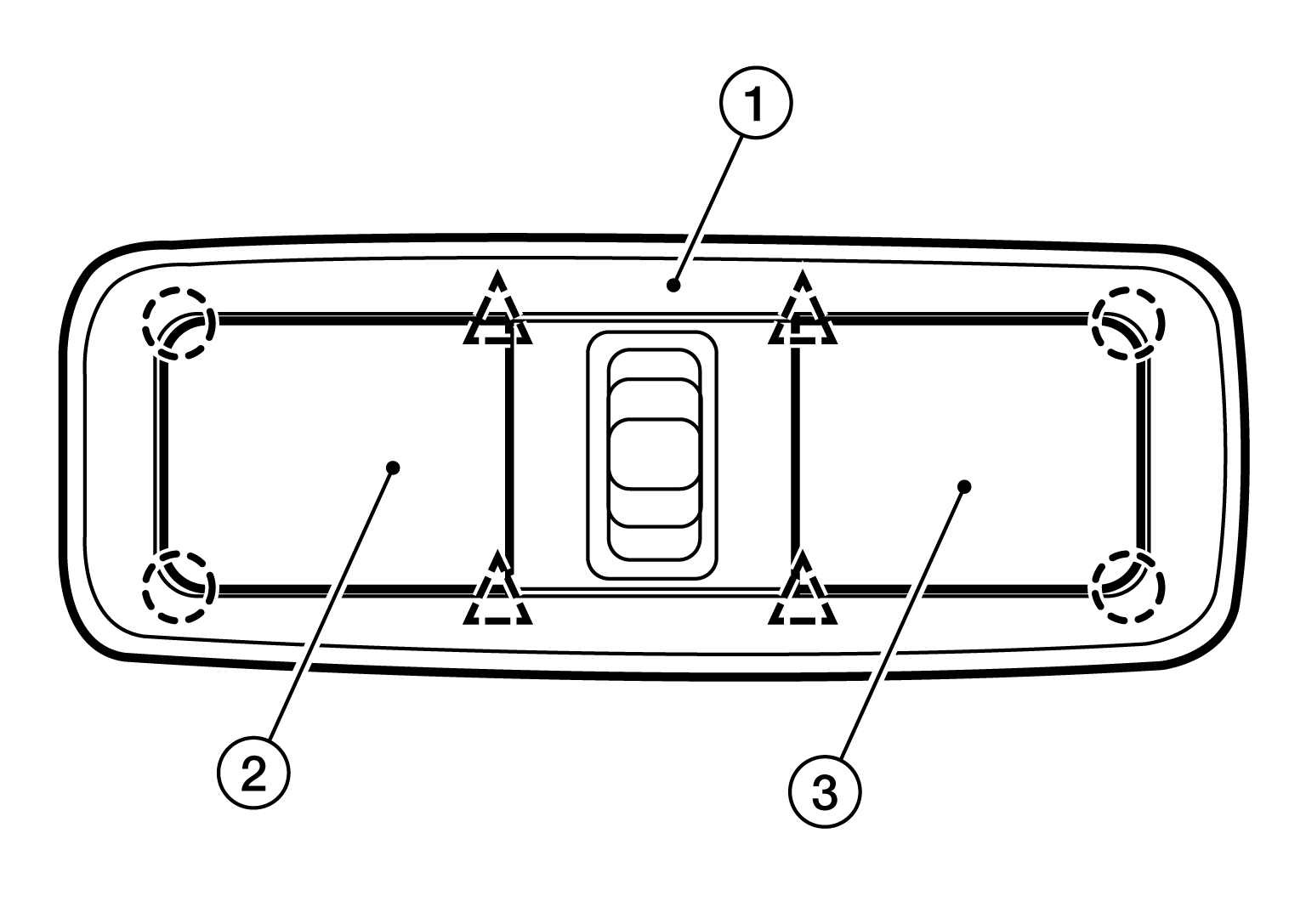

Remove front room/map lamp lens [LH (2)] or front room/map lamp lens [RH (3)] from front room/map lamp assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Clip

Remove front room/map lamp bulb.

INSTALLATION

Installation is in the reverse order of removal.
