Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

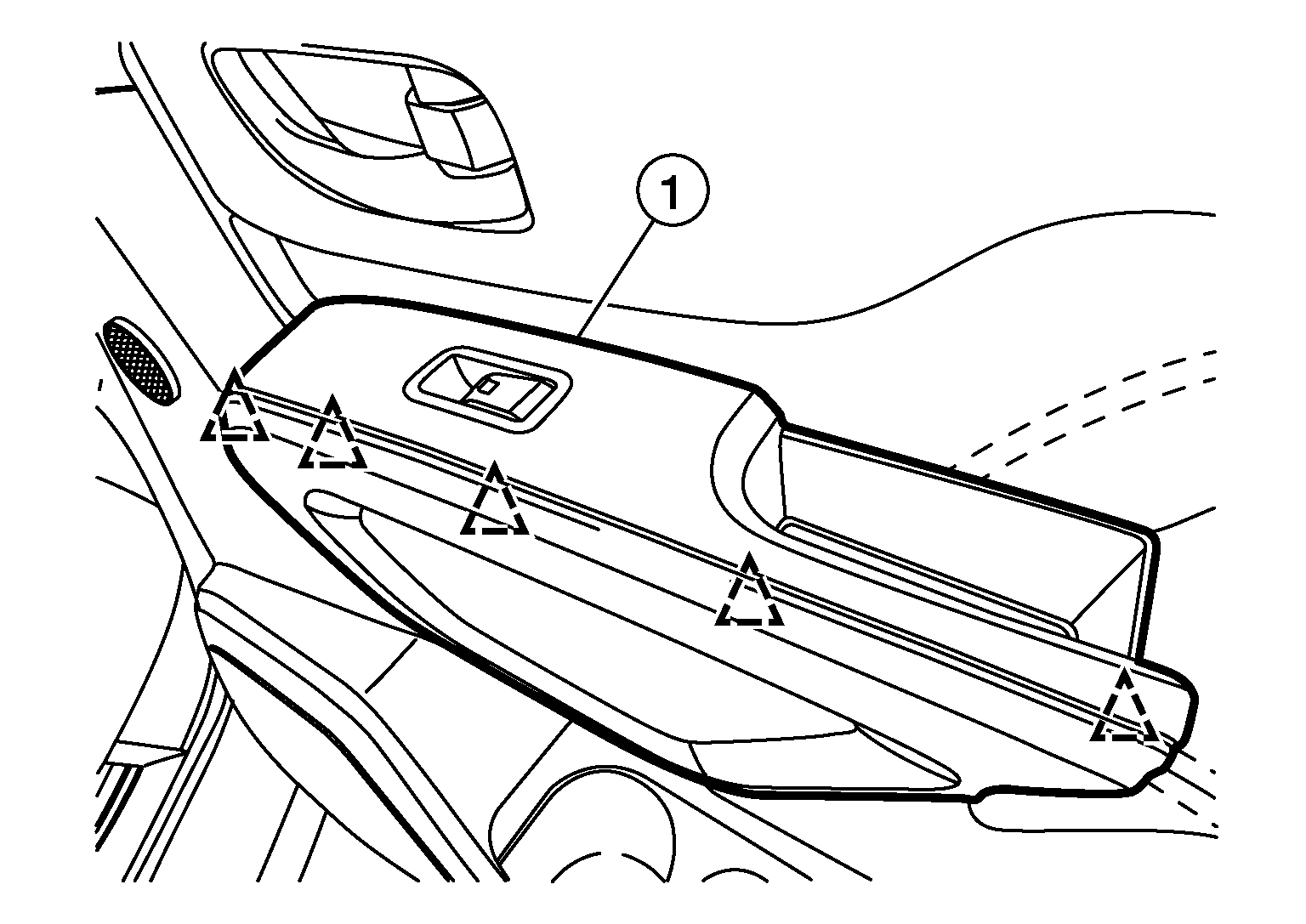

Remove the rear power window switch finisher and rear power window switch (1) using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: RH shown, LH similar.

: Clip
Disconnect the harness connector from the rear power window switch.

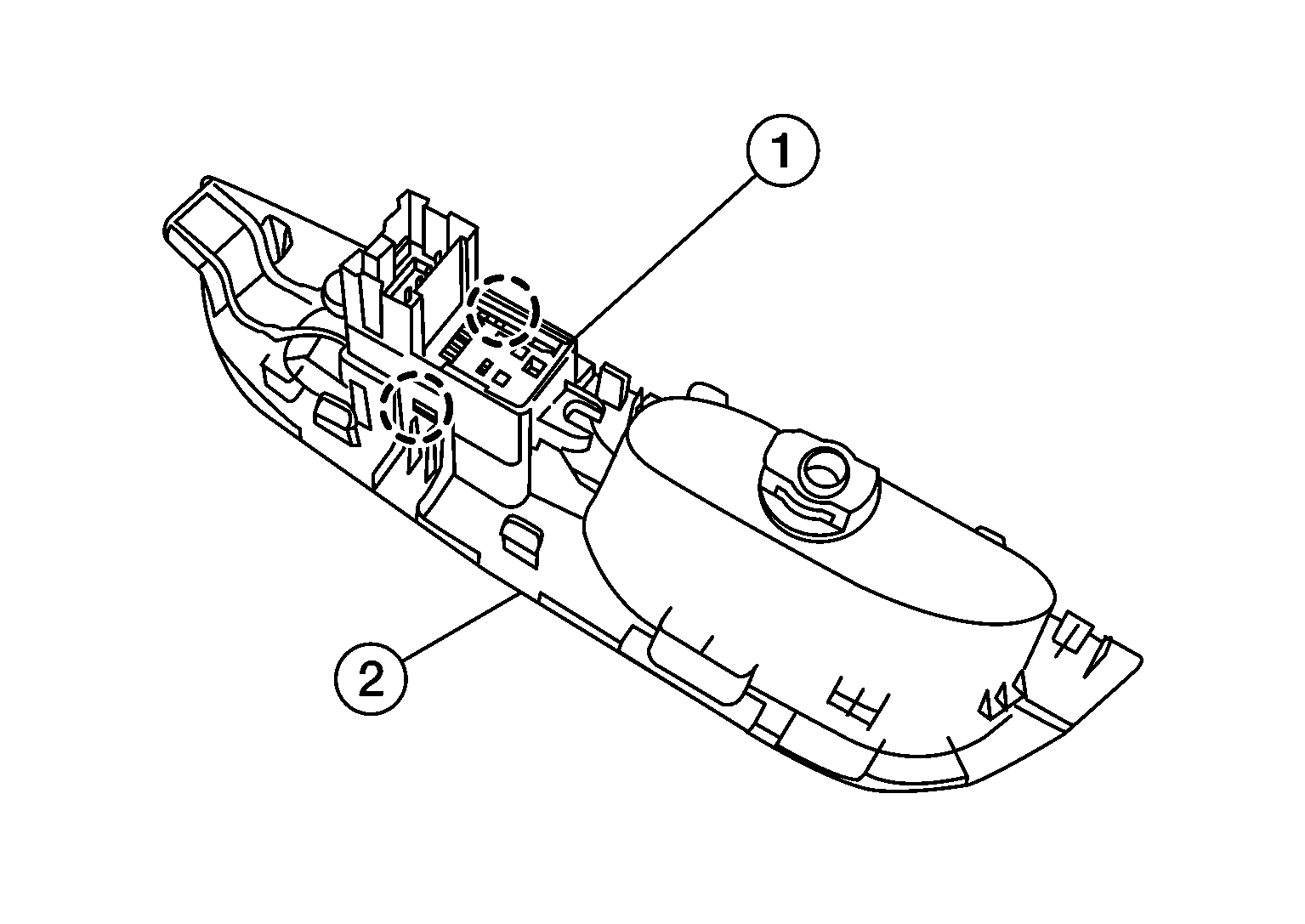

Using a suitable tool, release the pawls and remove the rear power window switch (1) from the rear power window switch finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
