Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to Removal and Installation .
  2. Disconnect the harness connector from the rear power slide glass switch.

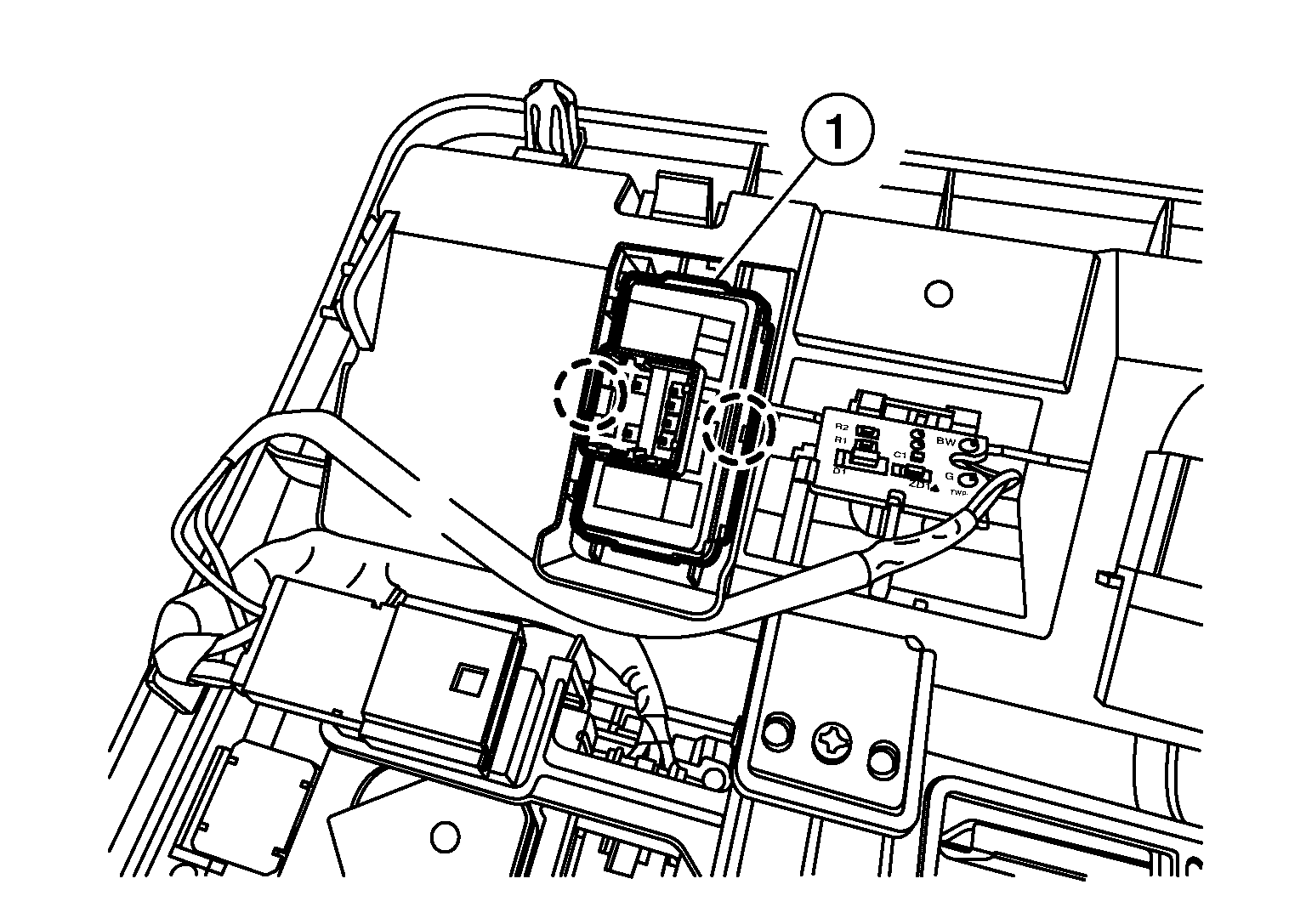

  3. Remove rear power slide glass switch (1) from the overhead console using suitable tool.
    GNSALKIA4349Z-349Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
