REMOVAL - Crew Cab Models

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

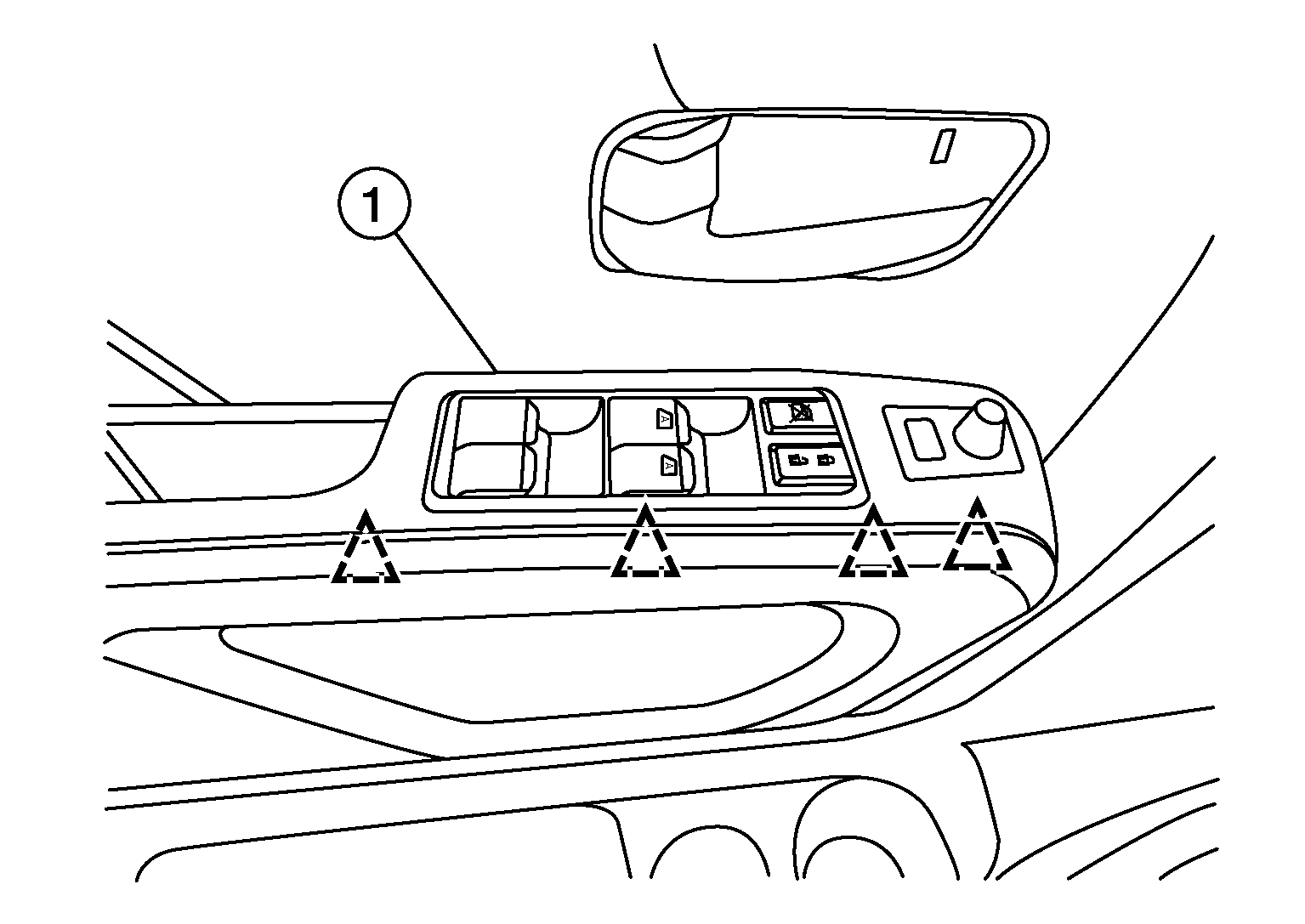

Remove the main power window and door lock/unlock switch finisher and main power window and door lock/unlock switch (1) from the door finisher using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Clip

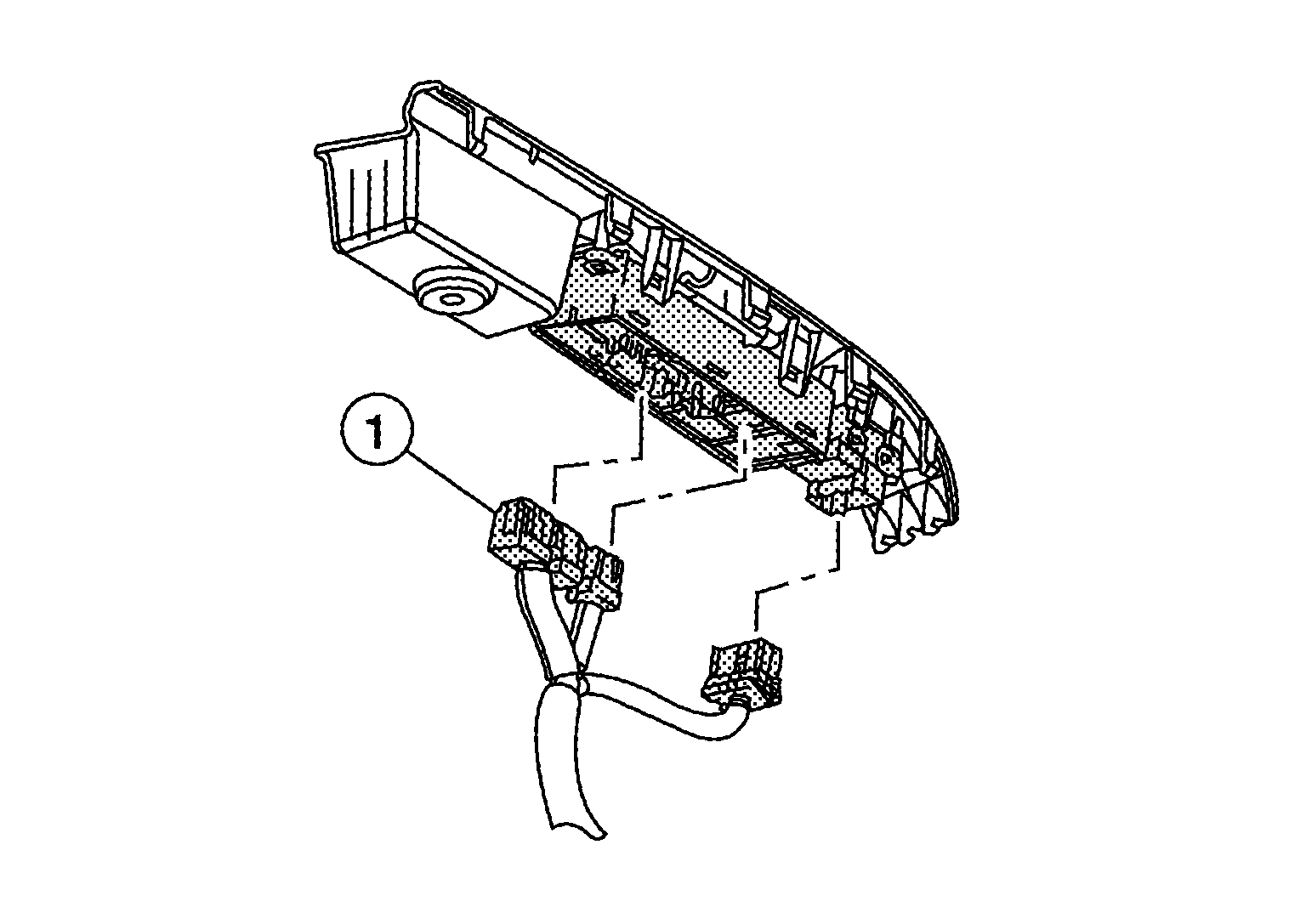

Disconnect the harness connector (1) from the main power window and door lock/unlock switch.

Courtesy of NISSAN NORTH AMERICA, INC.
Release the main power window and door lock/unlock switch finisher pawls from the main power window and door lock/unlock switch (1) using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

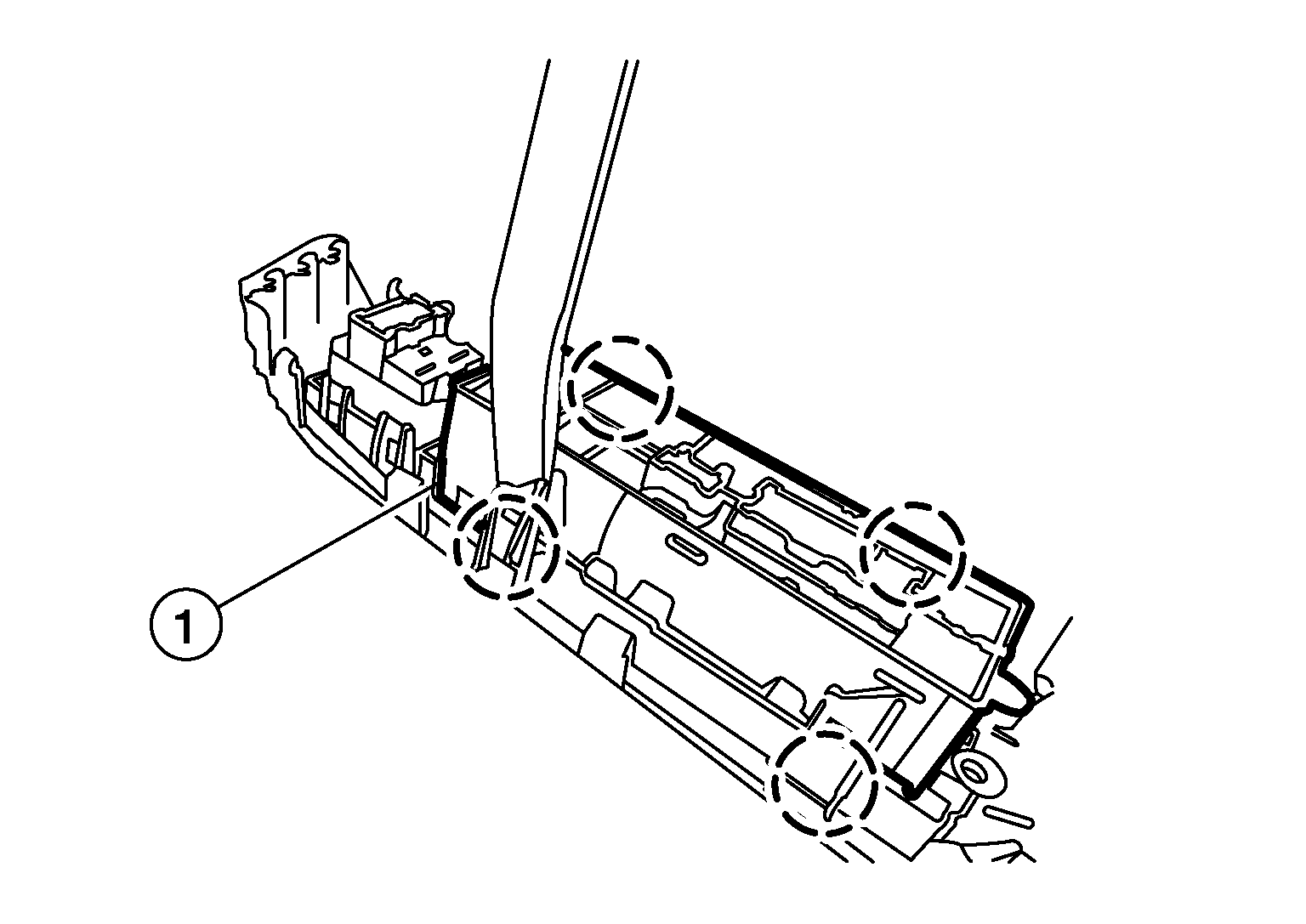

Remove the main power window and door lock/unlock switch (1).

Courtesy of NISSAN NORTH AMERICA, INC.
