Garage Jack and Safety Stand and 2-Pole Lift

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Park the vehicle on a level surface when using the jack. Check to avoid damaging pipes, tubes, etc. under the vehicle.
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.
  • When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
  • When setting the lift arm, never allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.

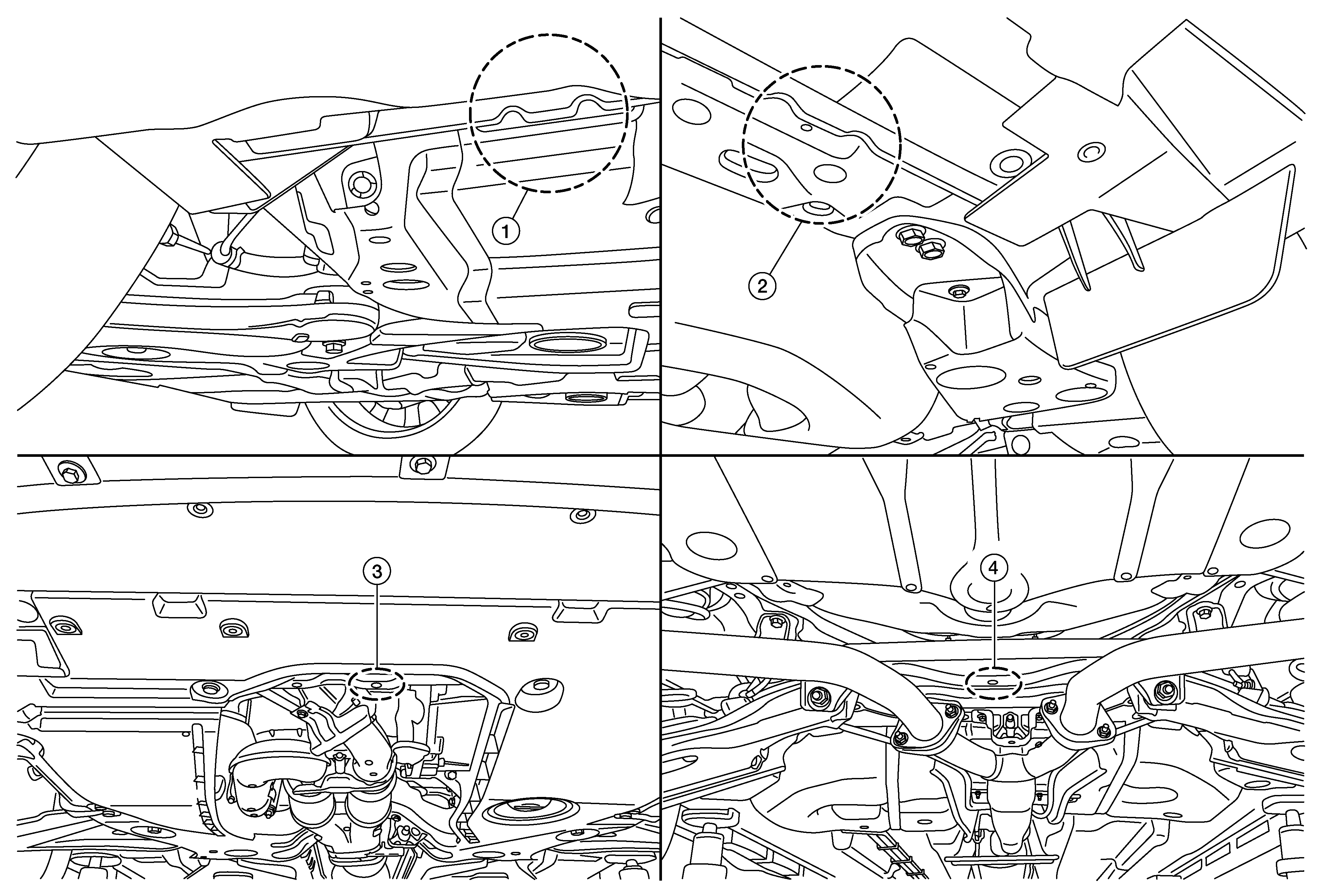

GNSALAIA0164Z-164Courtesy of NISSAN NORTH AMERICA, INC.

1.

Safety stand point and lift up point (front)

2.

Safety stand point and lift up point (rear)

3.

Garage jack point (front)

4.

Garage jack point (rear)
