Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before removing the BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to System Description .
  • When replacing the BCM a new BCM must be used. The functions controlled by the BCM do not operate properly if a BCM from another vehicle is used.
NOTE: The BCM is located on the LH side of the instrument panel.
  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Remove the instrument lower panel LH. Refer to Removal and Installation .
  3. Remove the screws (A) and release the BCM.

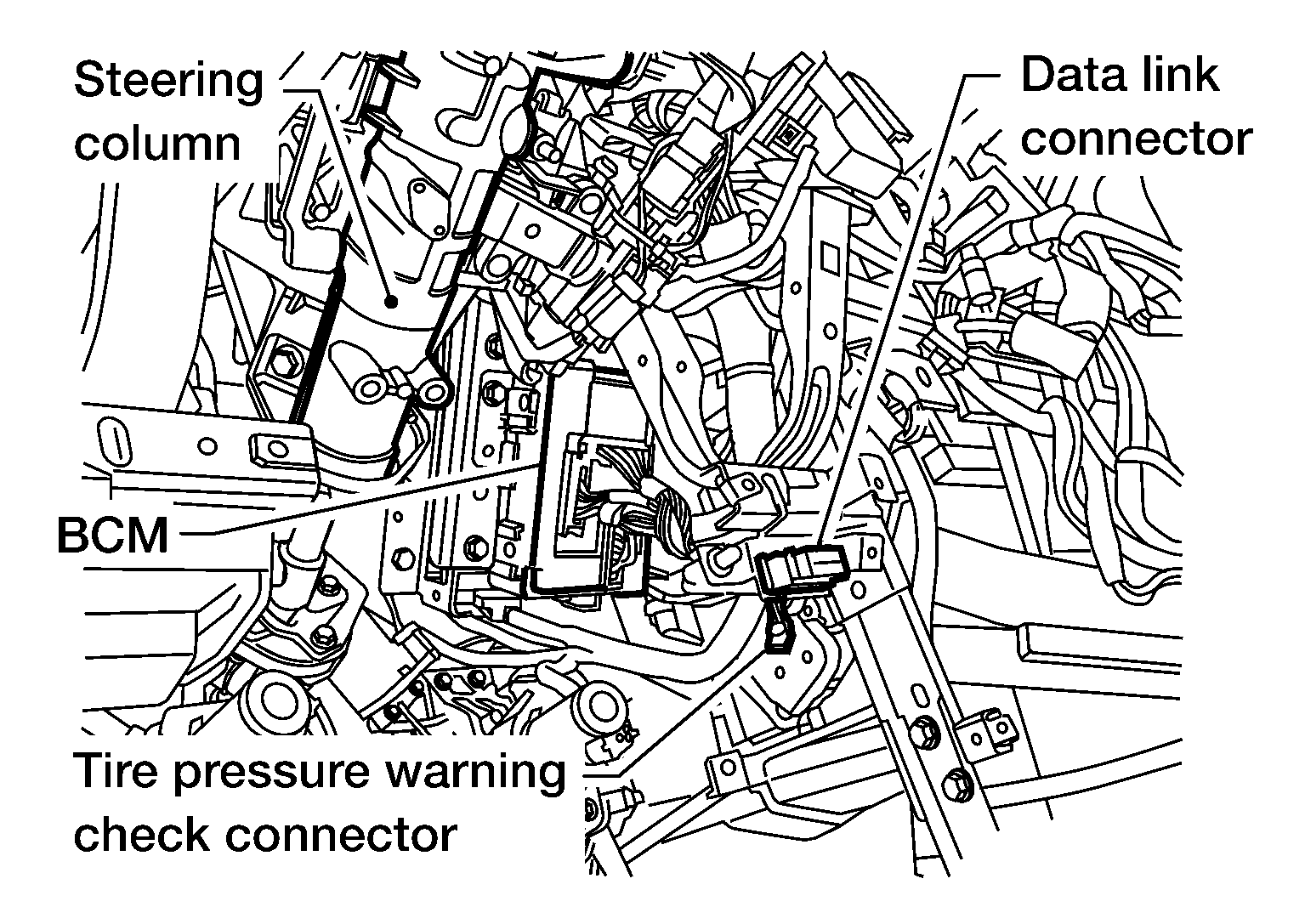

    G04134639Courtesy of NISSAN NORTH AMERICA, INC.

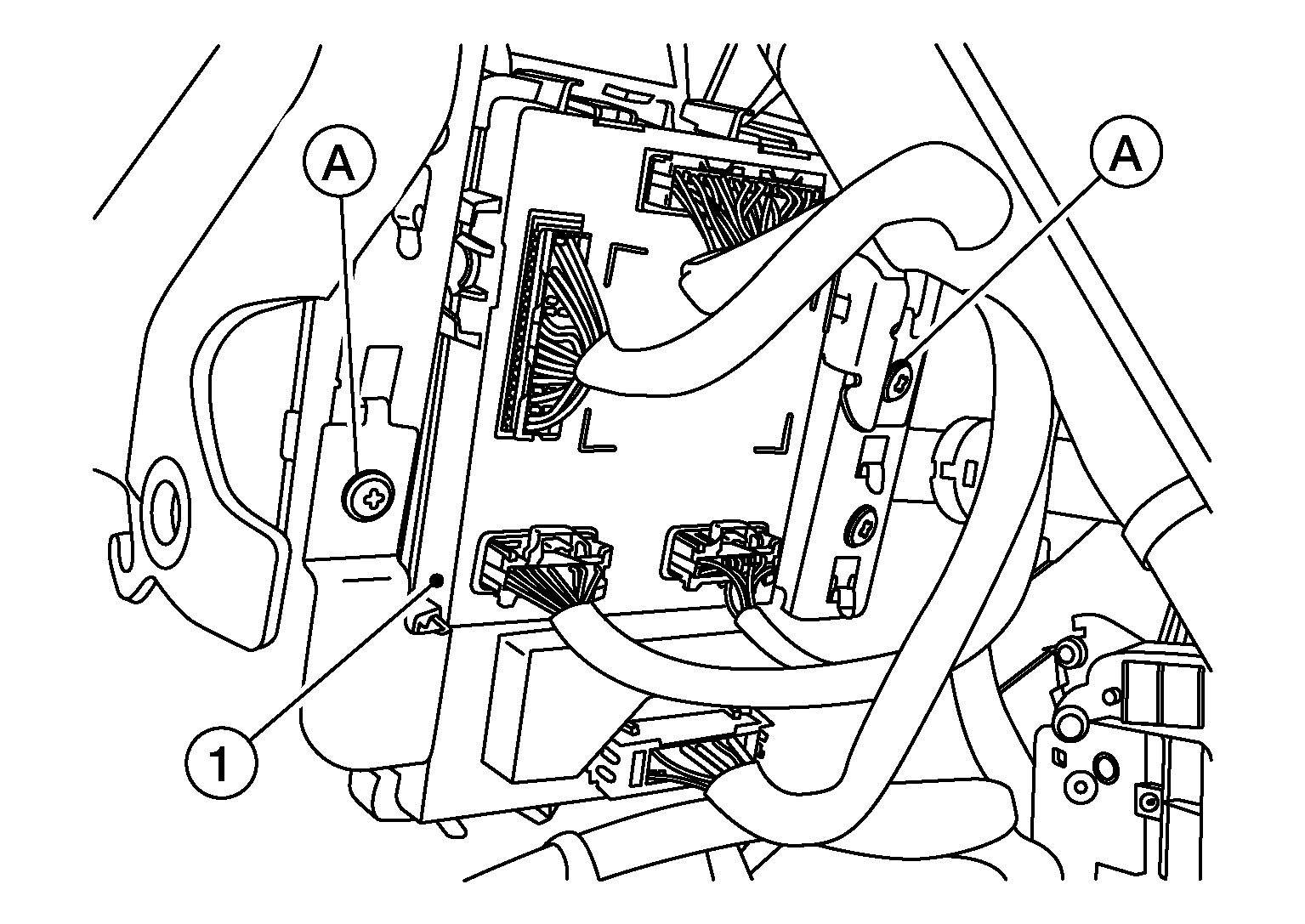

    GNSALEIA0250Z-250Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors.
  5. Remove the BCM (1).
