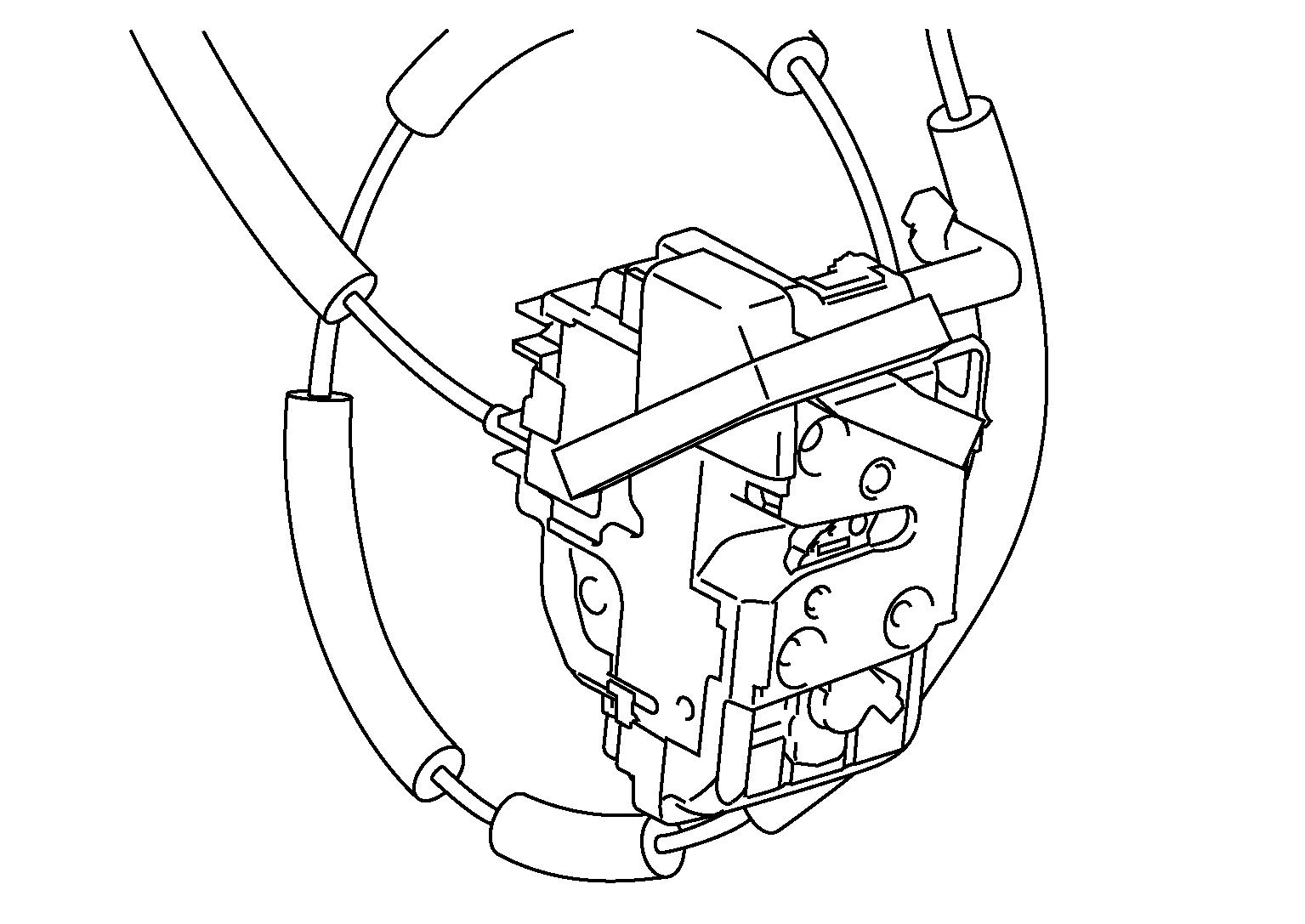

Front Door Lock Assembly (LH)
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Door lock actuator and unlock sensor are integrated into driver door lock assembly.
- Door lock actuator receives lock/unlock signal from BCM and then locks/unlocks driver door.
- Only front door lock assembly (driver side) integrates unlock sensor. Unlock sensor transmits lock/unlock status of driver seat to BCM.
