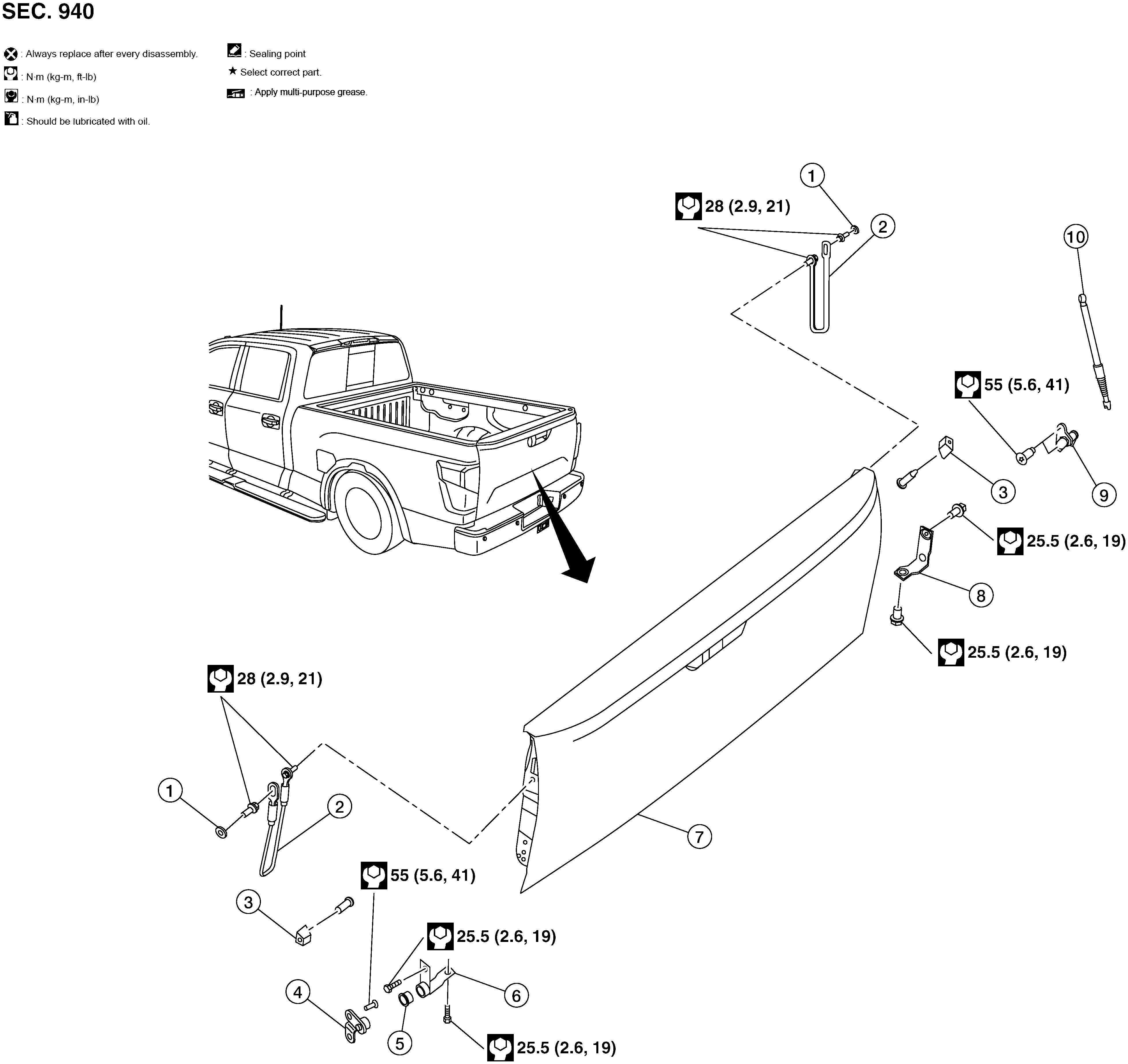

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Crew Cab Model shown Single Cab Model and King Cab ®
Model similar.
|
1. |
Washer |
2. |
Tailgate stay (LH/RH) |
3. |
Tailgate rubber bumper (LH/RH) |
|
4. |
Tailgate hinge [body side (LH)] |
5. |
Tailgate ring (LH) |
6. |
Tailgate hinge [tailgate side (LH)] |
|
7. |
Tailgate panel |
8. |
Tailgate hinge [tailgate side (RH)] |
9. |
Tailgate hinge [body side (RH)] |
|
10. |
Gas stay |
