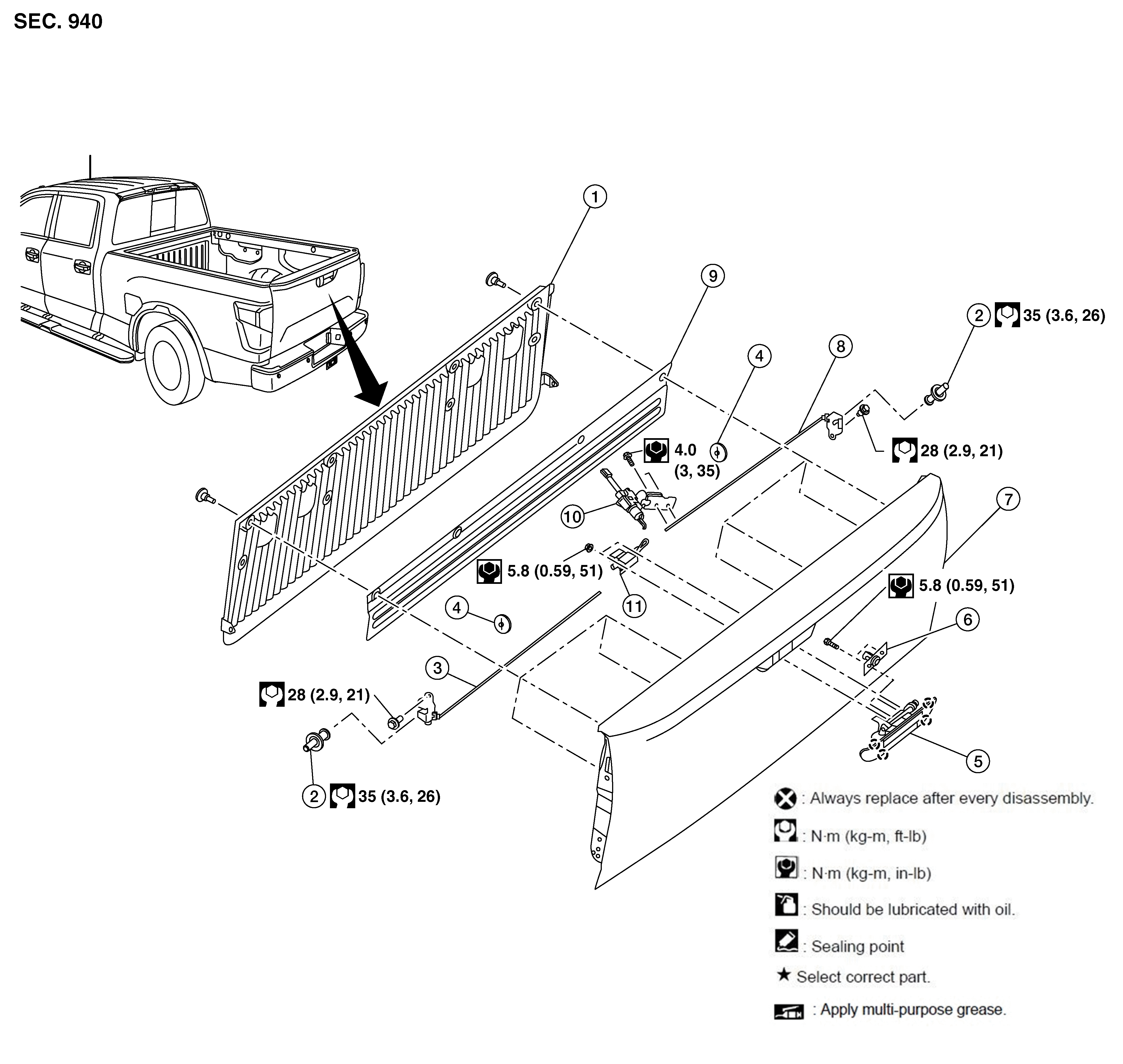

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Crew Cab Models shown, Single Cab Models, King Cab ®
Models similar.
|
1. |
Tailgate protector |
2. |
Tailgate striker (LH/RH) |
3. |
Tailgate lock (LH) |
|
4. |
Lock rod protector (LH/RH) |
5. |
Tailgate handle |
6. |
Rear camera (if equipped) |
|
7. |
Tailgate panel |
8. |
Tailgate lock (RH) |
9. |
Tailgate cover plate |
|
10. |
Tailgate lock actuator (if equipped) |
11. |
Tailgate control assembly |
