Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument upper panel. Refer to Removal and Installation .

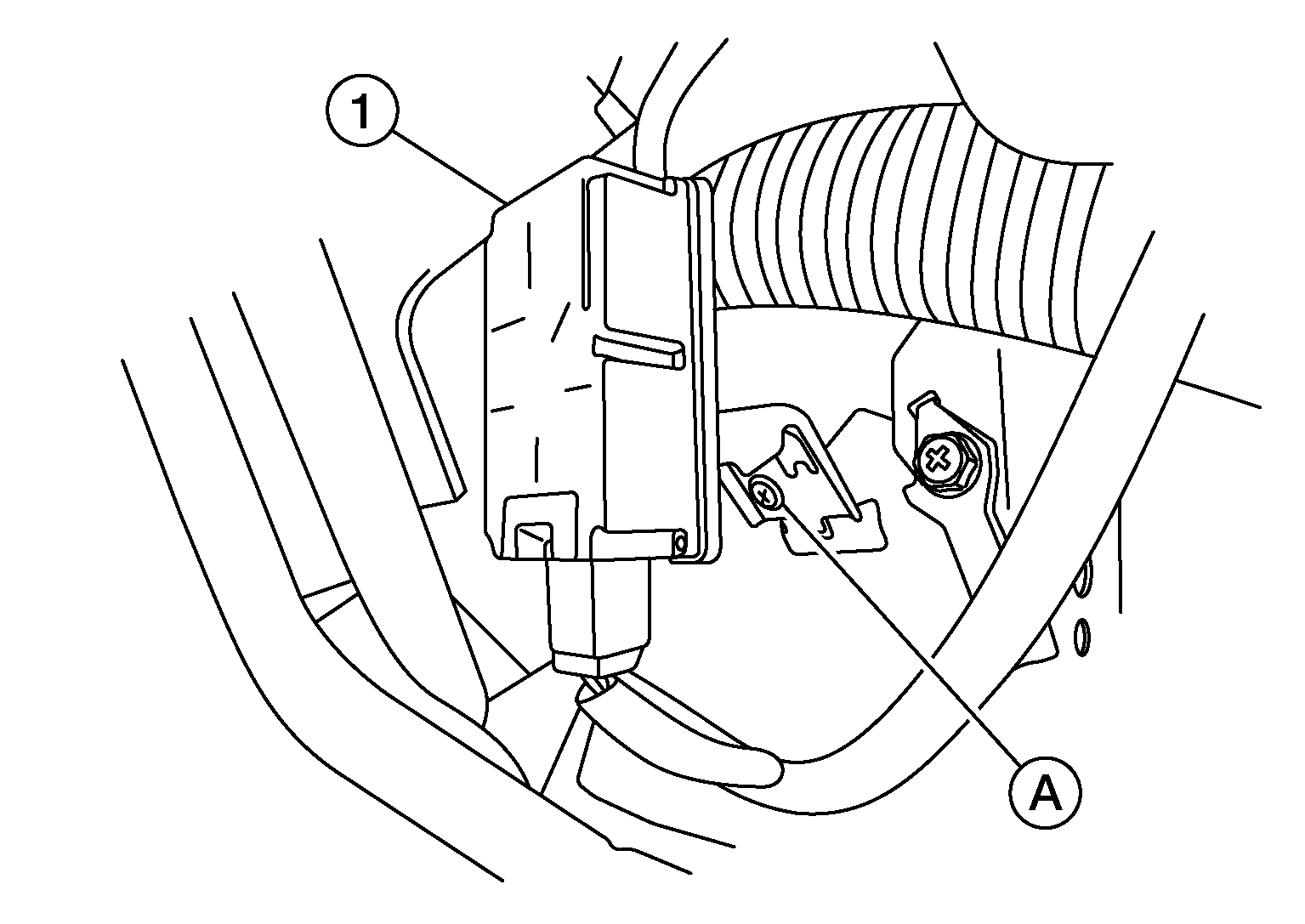

  2. Disconnect the harness connector from the remote keyless entry receiver (1).
    GNSALKIA4171Z-171Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and remote keyless entry receiver.
  4. Remove remote keyless entry receiver from bracket.
